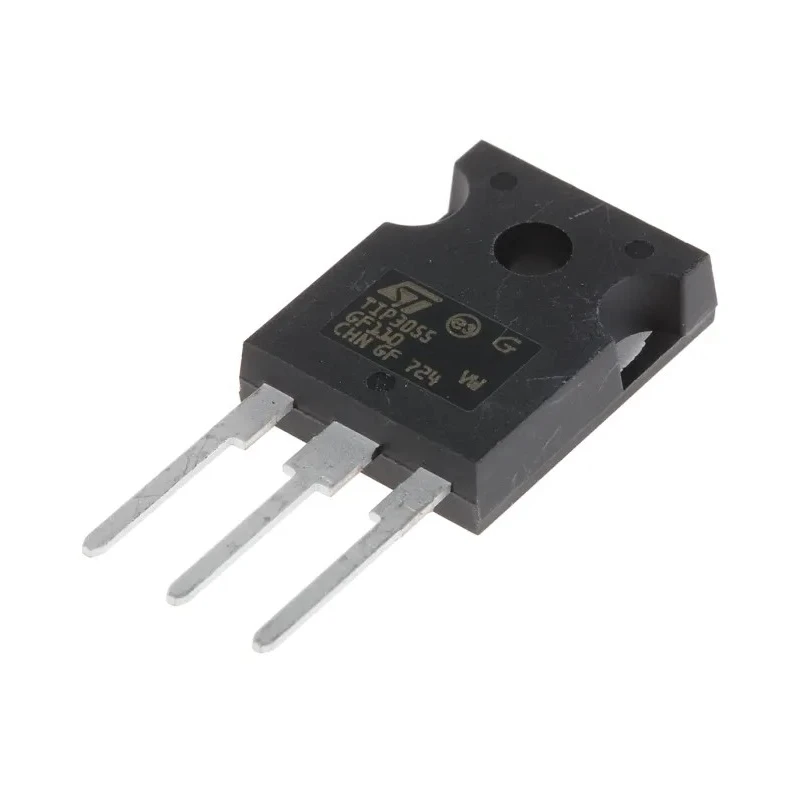

STMicroelectronics NPN Power Transistor 15 A 60 V TO-247 Package TIP3055

STMicroelectronics TIP3055 NPN Power Transistor is a high-performance bipolar transistor designed for applications requiring high collector current and voltage ratings. Packaged in a TO-247 through-hole format, this transistor is suited for power amplification and switching tasks in electronic circuits.

The device supports a maximum DC collector current of 15 A and a maximum collector-emitter voltage of 60 V, making it appropriate for medium-power industrial and consumer electronics projects. With a maximum power dissipation rating of 90 W, it can efficiently handle high-power loads.

Designed for through-hole mounting, it ensures solid mechanical connection and heat dissipation. The transistor operates reliably between 0°C and 150°C, accommodating a broad temperature range for various environments.

The transistor features a 3-pin TO-247 package and an NPN polarity configuration, which is commonly used in switching circuits and amplification stages. It has a minimum DC current gain of 5 and a maximum transition frequency of 3 MHz, making it suitable for moderate frequency applications.

Additional characteristics include a maximum collector-base voltage of 100 V and a maximum emitter-base voltage of 1.8 V, providing good voltage safety margins. The device is useful in industrial, laboratory, manufacturing, and electronic power supply applications.

Installation and usage benefit from the through-hole mounting style, which supports durability and easier heat sink attachment. This transistor is part of the TIP3055 series by STMicroelectronics, a trusted brand in semiconductor components.

Engineers and technicians rely on the TIP3055 transistor for designing robust power circuits, audio amplifiers, and other devices requiring reliable high-current switching capabilities.

This transistor provides a maximum collector current of 15 amperes. It operates with a maximum collector-emitter voltage of 60 volts. Designed with a TO-247 through-hole package for reliable mounting. Maximum power dissipation rating is 90 watts for high power applications.

Guaranteed operation within temperature range of 0°C to 150°C. Features a 3-pin configuration suitable for discrete transistor circuits. Transistor polarity is NPN, ideal for switching and amplification. Maximum transition frequency is 3 MHz, suitable for moderate frequency use.

Maximum collector-base voltage is 100 volts to ensure breakdown safety. Minimum DC current gain is 5, providing amplification capability. Discover a wide range of semiconductor devices and power transistors at EnvMart for all your electronic design and manufacturing needs.
