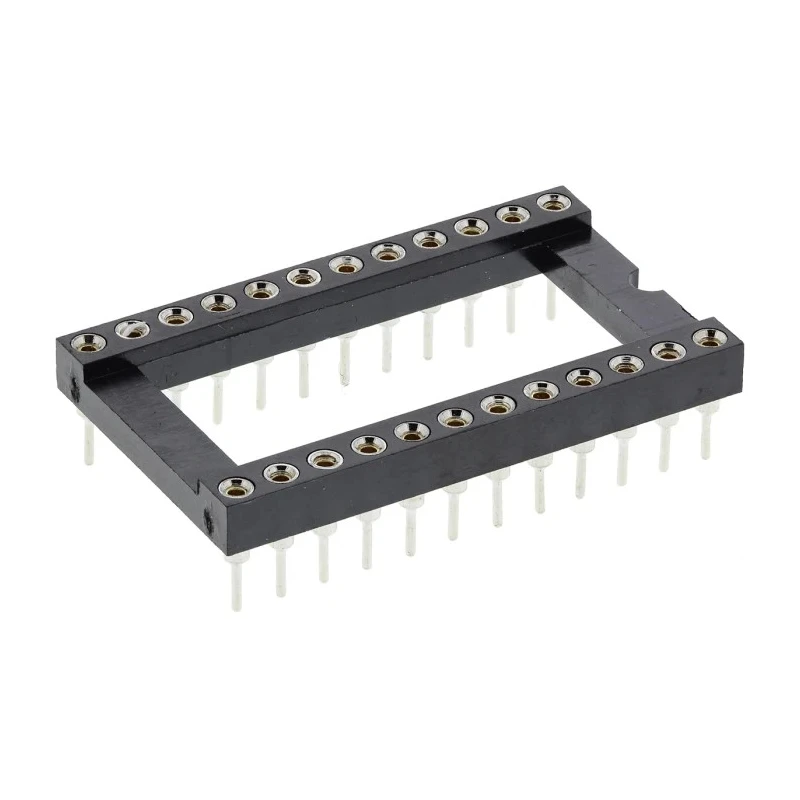

Winslow 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30524TRC

Winslow W30524TRC is a high-quality vertical 24 way DIL socket designed for through hole mounting. It features a 2.54 mm pitch and turned pin contacts configured in an open frame architecture to facilitate easy insertion and removal of integrated circuits. This model supports a continuous current rating of 5A and offers reliable solder termination with gold and tin plating on contact surfaces.

The socket's housing is made of polybutylene terephthalate (PBT), providing mechanical strength and thermal resistance essential for industrial and laboratory electronics applications. The contacts employ a beryllium copper alloy inner contact with a tin-plated brass outer shell, ensuring high conductivity and resistance to wear with up to 1000 insertions.

Operating temperature ranges from -65°C minimum to 150°C maximum, suitable for various demanding environments. The compact dimensions (30.4 mm length, 4.6 mm width, 17.66 mm depth) and vertical orientation make it ideal for dense PCB layouts and prototyping tasks.

Features 24 turned pin contacts arranged vertically with 2.54 mm pitch. Open frame design allows for thermal management and easy circuit debugging. Gold over nickel plating ensures longevity and signal quality. Robust housing made of PBT for industrial durability.

Rated current capacity of 5 amperes supports high-reliability applications. Wide operating temperature range from -65°C to 150°C. Supports up to 1000 insertion cycles for extensive reuse. Compatible with various IC packages for development, testing, and manufacturing.

This DIL socket is widely used in industrial control systems, laboratory equipment, communication devices, and other commercial electronics requiring reliable IC connectivity without permanent soldering. Its high durability and precision manufacturing standards ensure consistent performance and easy maintenance during product development cycles.

Explore more electronic components and DIL Socket solutions in the EnvMart catalog for professional use in electronics manufacturing and prototyping environments.
