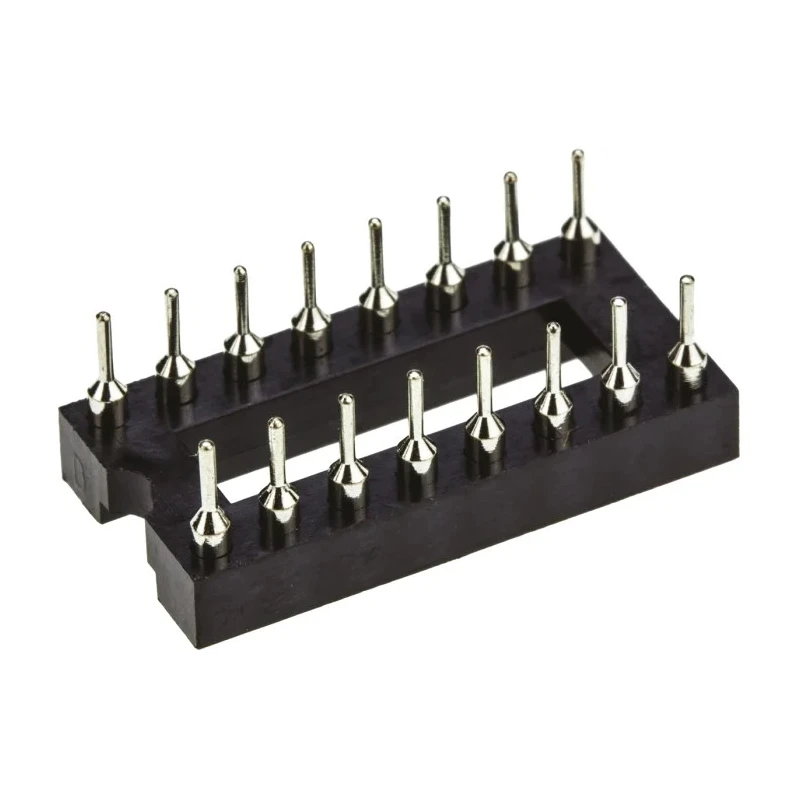

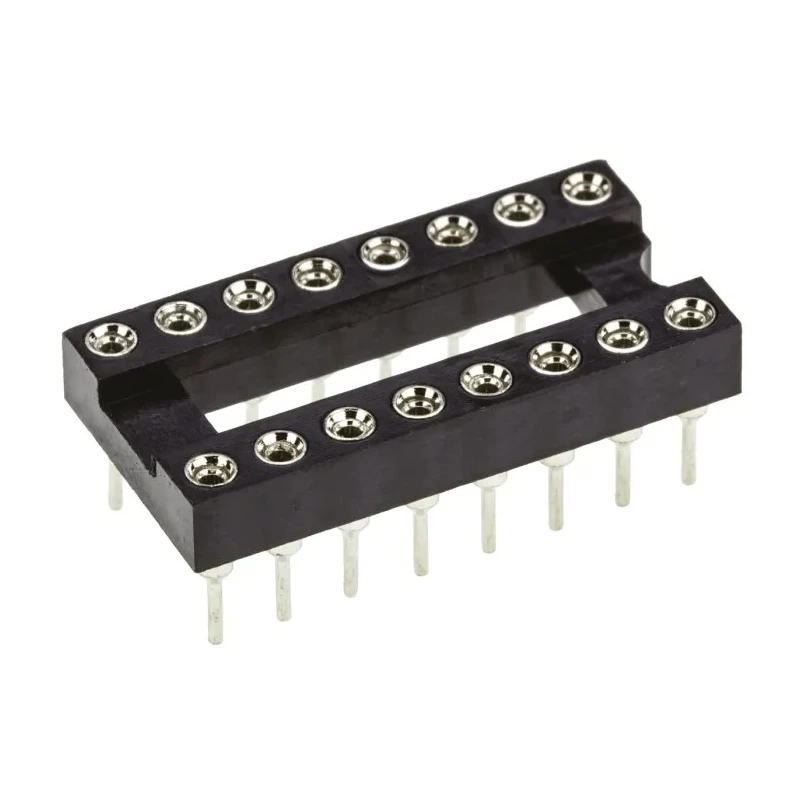

Winslow 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30516TTRC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Winslow |
| Orientation | Vertical |
| Current | 5A |
| Temperature range | -55°C to +150 °C |
| Frame Type | Open Frame |
| Length | 20.24mm |
| Model | W30516TTRC |
| Depth | 10.14mm |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -65°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Pin Type | Turned |
| Row Width | 7.62mm |
Key Features
- Provides secure and reliable IC mounting with machined beryllium copper contacts.
- Supports up to 5A current per contact for robust power and signal applications.
- 16-way vertical socket configuration with 2.54 mm pitch accommodates standard DIL packages.
- Open frame design ensures easy inspection and quick soldering during PCB assembly.
- Through-hole termination compatible with traditional PCB manufacturing processes.
- Tin plated contacts offer durable performance across demanding temperature ranges.
- Polybutylene terephthalate housing delivers high mechanical and thermal stability.
- Suitable for industrial, laboratory, and electronics prototyping.
Product Description
Winslow W30516TTRC is a high-quality 2.54 mm pitch vertical 16-way through hole DIL socket engineered for reliable connection and robust performance in electronic assemblies. This socket features turned pin contacts fabricated using beryllium copper alloy, ensuring high conductivity and resilient mechanical integrity, particularly important for frequent insertion and removal cycles in laboratory and industrial settings. It is rated for up to 5A per contact, making it well-suited for applications requiring substantial current handling.
The open frame design allows unobstructed access for inspection and soldering, streamlining integration during PCB fabrication and maintenance. With tin plating over nickel on contacts and a four-finger machined contact design, this socket provides excellent corrosion resistance and consistent electrical performance. The vertical orientation and 2.54 mm pitch conform to global standards for DIL package mounting, compatible with a wide range of IC devices.
The housing is constructed from polybutylene terephthalate, offering stability in both high and low temperature environments, ranging from -55°C up to 150°C. Mounting is through-hole, making this socket ideal for traditional PCB assembly where secure mechanical connection is imperative. Solder termination simplifies installation and ensures lasting contact.
This Winslow socket is designed for easy integration into industrial control boards, laboratory instruments, prototyping projects, and manufacturing equipment. It is particularly valuable where regular component swap-out and testing are required, taking advantage of its durable and precision-engineered construction. Applications include microcontroller boards, signal interface adapters, and high-reliability electronics assemblies across commercial, industrial, and R&D domains.
Explore more PCB connectors and sockets in the Electronics Components category, or browse Winslow's full range for high-performance interconnect solutions on EnvMart.
Explore more products in our PCB Socket category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports up to 5A current per contact, making it suitable for robust power and signal applications.
The socket features a 2.54 mm pitch, which is standard for DIL package mounting.
It operates within a temperature range of -55°C to +150°C, suitable for various environmental conditions.
The housing is made from polybutylene terephthalate, while the contacts are fabricated from beryllium copper alloy with tin plating.
This unit has 16 contacts, allowing for multiple connections in a single socket.
It utilizes solder termination, which simplifies installation and ensures lasting contact.
The Winslow W30516TTRC socket has a vertical orientation, which is designed for efficient PCB integration.
It features an open frame design, allowing for easy inspection and quick soldering during PCB assembly.
The dimensions are 20.24 mm in length, 10.14 mm in depth, and 4.6 mm in width.
The socket uses turned pin contacts, which enhance mechanical integrity during insertion and removal cycles.
It is suitable for industrial control boards, laboratory instruments, prototyping projects, and high-reliability electronics assemblies.
The country of origin for this socket is China.
