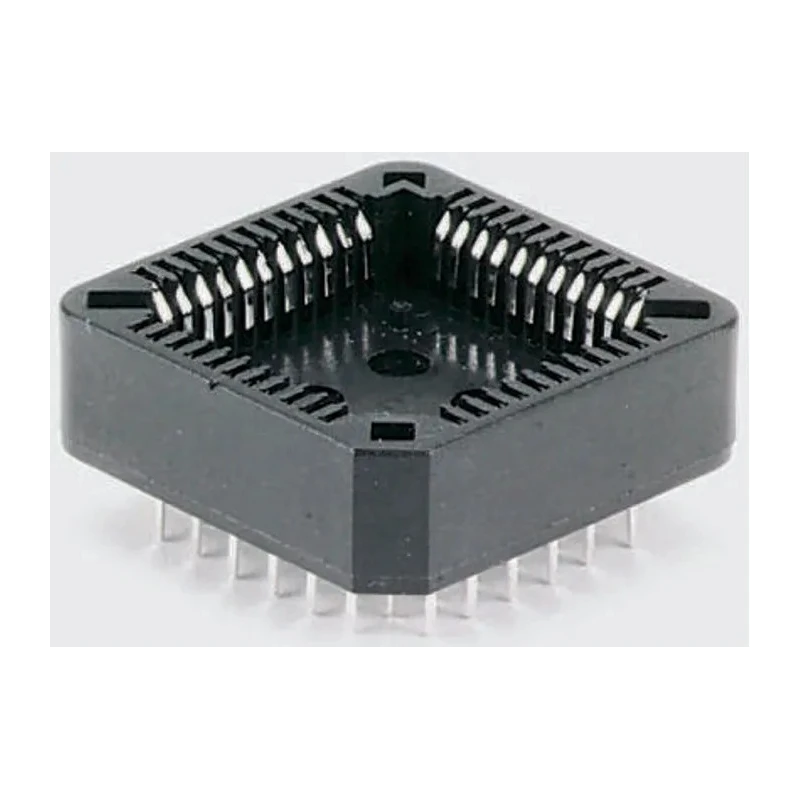

Winslow 1.27 mm Pitch 52 Way Through Hole PLCC IC Socket WPLCC052-1PTRC

Winslow WPLCC052-1PTRC is a 52 way through hole PLCC (Plastic Leaded Chip Carrier) IC socket with a 1.27 mm pitch, engineered for high-reliability electronic component mounting in industrial and laboratory environments.

Constructed with phosphor bronze contacts plated with tin over copper, this IC socket supports currents up to 1 A and voltages of 100 and 150 V, providing stable electrical performance. The plastic housing is made of polybutylene terephthalate, offering excellent mechanical strength and thermal stability across a wide temperature range from -55°C to +105°C.

This component features through-hole solder tails and a straight orientation for straightforward PCB mounting, conforming to JEDEC 2.54 mm grid patterns which ensures compatibility with standard PCB layouts. Stand-offs are incorporated for aiding cleaning operations and enhancing heat dissipation during intensive use.

The insulating material is glass filled polyester, which provides high insulation resistance of approximately 1000 MΩ, making this socket suitable for sensitive electronic applications. Termination is designed for soldering, ensuring a robust and durable connection.

The socket is ideal for use in electronic manufacturing, industrial control systems, prototyping, testing, and repair environments across electronics and electrical engineering sectors.

Features 52 contacts with 1.27 mm pitch for precise IC connections. Phosphor bronze contact material ensures conductivity and reliability. Contacts plated with tin over copper for corrosion resistance. Supports current ratings of 1 A and voltage up to 150 V.

Operating temperature range from -55°C to 105°C for versatile use. Through hole mounting type with stand-offs for mechanical stability and ease of maintenance. Polybutylene terephthalate housing for enhanced durability. Glass filled polyester insulation with 1000 MΩ resistance maintains circuit integrity.

Solder termination provides secure electrical and mechanical connections. Conforms to JEDEC standard 2.54 mm grid for compatibility.

For detailed design integration, refer to associated technical documents and ensure the use of appropriate extraction tools such as the one specified with stock number 480-3005. This product is recommended for electronic designers, engineers, and manufacturers seeking quality IC Socket solutions.
