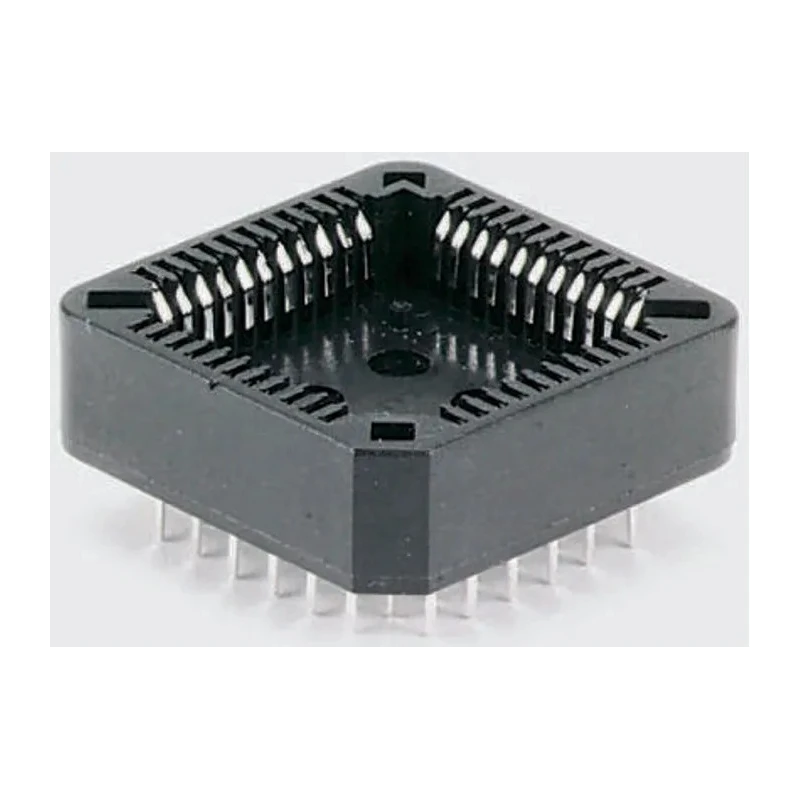

Winslow 1.27 mm Pitch 32 Way Through Hole PLCC IC Socket WPLCC032-1PTRC

Winslow WPLCC032-1PTRC 32 Way Through Hole PLCC IC Socket is engineered for precise mounting and reliable connection of plastic leaded chip carriers in electronic equipment. Featuring a 1.27 mm pitch and 32 contacts, this socket supports signal integrity and mechanical stability.

The contacts are manufactured from phosphor bronze with tin plating over copper, ensuring excellent electrical conduction and corrosion resistance. The socket uses a through hole mount style allowing secure soldered connections on printed circuit boards.

Designed to operate safely within -55°C to 105°C, this device supports voltages up to 150V and currents up to 1A, suitable for a wide range of electronic applications.

The housing is composed of polybutylene terephthalate with glass filled polyester insulation, providing durability and high insulation resistance of 1000 megaohms. The socket leg configuration adheres to a 2.54 mm grid standard consistent with JEDEC specifications, facilitating compatibility with various PCBs.

Constructed from phosphor bronze contact material for high conductivity. Tin over copper plating for reliable anti-corrosion performance. Through hole solder termination for secure board mounting. Temperature tolerance from -55°C to 105°C for use in demanding environments.

Voltage and current ratings suitable for industrial electronics. Polybutylene terephthalate housing ensures mechanical strength. Glass filled polyester insulation material for electrical safety. Meets JEDEC 2.54 mm grid dimensional standards.

High insulation resistance provides enhanced safety and reliability. Origin: Taiwan, Province Of China, for assured quality manufacturing.

This socket is ideal for industrial manufacturing, electronics assembly, laboratory use, and various testing environments requiring reliable IC connections. The product is designed and produced to meet the expectations of professional engineers and quality assurance standards.
