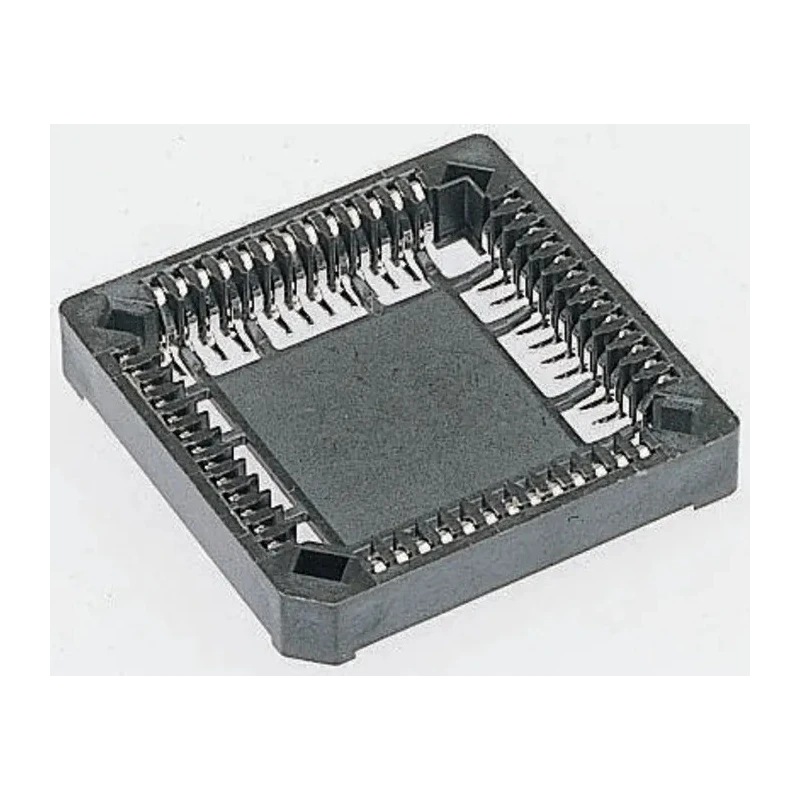

Winslow 1.27 mm Pitch 52 Way Through Hole PLCC IC Socket WPLCC052-ST1RC

Winslow WPLCC052-ST1RC 52 Way Through Hole PLCC IC Socket is an advanced and reliable IC socket designed for through-hole mounting applications. It features a pitch of 1.27 mm and supports 52 contacts, ideal for PLCC chip carriers requiring precise and secure connections.

Constructed with phosphor bronze contacts plated with tin over copper, this socket offers excellent conductivity and long-lasting performance. It supports a current rating of 1A, with operating voltages of up to 100Vac rms and 150Vdc, enabling use in a range of electronic assemblies.

The socket is designed for surface device mounting with through-hole solder termination, ensuring robust PCB integration. It operates reliably in a temperature range from -55°C to 105°C, suitable for demanding industrial and commercial electrical environments. The housing is made from polyphenylene sulphide, providing mechanical strength and thermal resistance.

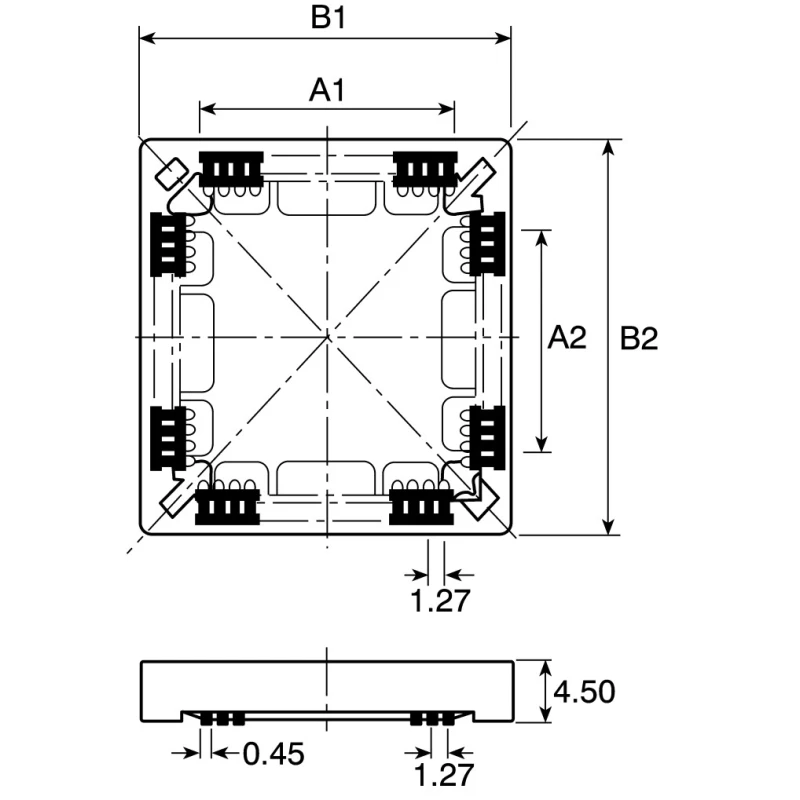

Key features include a low profile height of 4.5 mm, a polarizing feature for correct insertion of chip carriers, and standoffs to facilitate easy PCB cleaning during maintenance. A window for solder joint inspection allows quality assurance during assembly processes.

This IC socket is ideal for applications in industrial electronics, PCB assembly, telecommunications, and prototyping environments requiring frequent insertions and removals of chip carriers.

Features 52 contacts suitable for PLCC packages. Supports a current rating of 1 ampere. Pitch between contacts is precisely 1.27 millimeters. Operating voltage up to 100Vac rms and 150Vdc. Contact material is phosphor bronze with tin over copper plating.

Designed for through hole PCB mounting with solder termination. Minimum operating temperature -55°C with maximum up to 105°C. Low profile design at 4.5 mm height allowing compact assembly. Window included for solder joint inspection to ensure quality connections.

Polarizing feature is integrated to ensure correct chip carrier insertion. Experience reliable and efficient IC connections with the Winslow WPLCC052-ST1RC PLCC IC Socket from EnvMart, your industrial electronics partner.
