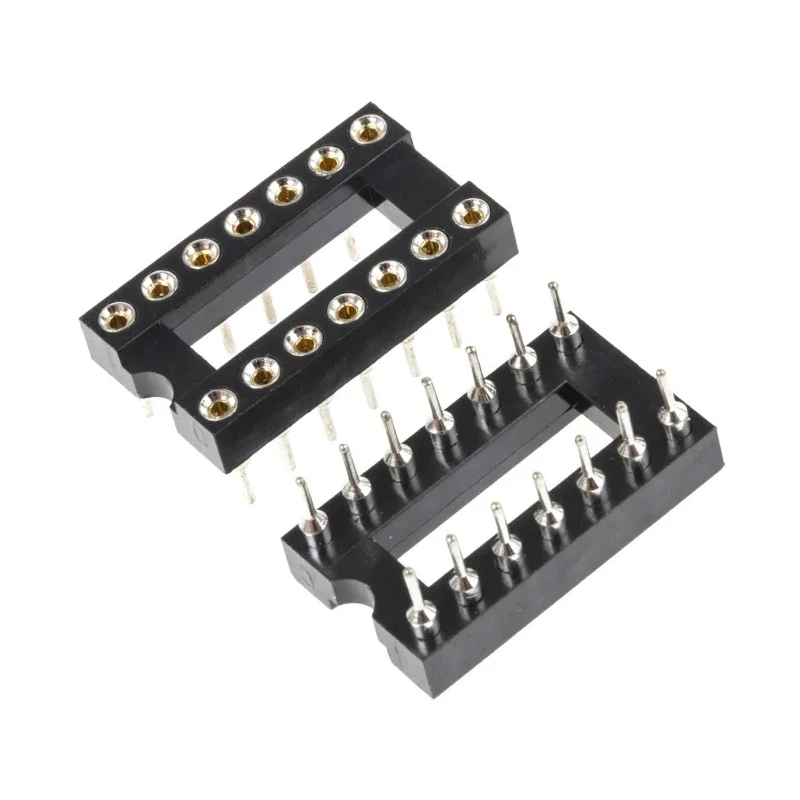

Winslow 2.54 mm Pitch Vertical 14 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30514TRC

Winslow W30514TRC is a high-quality 14 way DIL socket featuring a 2.54 mm pitch and vertical orientation, designed for through hole mounting with turned gold and tin-plated contacts capable of handling a 5A current rating. This open frame DIP socket is constructed from Polybutylene Terephthalate (PBT) housing material to provide excellent mechanical and thermal stability. The contacts use a beryllium copper alloy inner contact with gold over nickel plating and tin-plated brass outer shells, ensuring superior electrical performance and resistance to corrosion.

These sockets are ideal for non-permanent installation in development and testing environments, allowing for 1000 reliable insertions of ICs without degradation. The socket supports a maximum operating temperature up to 150°C, making it suitable for a wide range of industrial, electronic manufacturing, and laboratory applications. Precision manufacturing guarantees a 2.54 mm pitch between contacts and a row width of 7.62 mm, conforming to standard component layouts for integrated circuits.

The compact dimensions of 17.7 mm length, 4.6 mm width, and 10.14 mm depth enable seamless PCB integration while the open frame design facilitates easy access for inspection and rework. This socket is optimized for solder termination and provides a stable connection for circuits requiring a 5A current capacity. Its robust design ensures reliability in electronic testing, prototyping, and repair scenarios.

The socket features a vertical orientation with 14 contact points for versatile use. Constructed with an open frame design for ease of installation and maintenance. Made from Polybutylene Terephthalate housing material to ensure durability and stability.

Contact material includes beryllium copper alloy plated with gold and tin for excellent conductivity. Supports up to 150°C maximum operating temperature suitable for various industrial applications. Designed for through hole mounting and solder termination type.

Rated for 1000 insertions providing long-term reliability in development and testing. Dimensions: Length 17.7 mm, Width 4.6 mm, Depth 10.14 mm to fit standard PCB layouts.

Suitable for use in industrial electronics, laboratory instruments, manufacturing equipment, and general electronic development and repair tasks. Ensure reliable, high-quality socket connections with Winslow W30514TRC for all your PCB mounting needs. Browse more DIL Sockets and electronic components at EnvMart.
