Winslow 2.54 mm Pitch Vertical 14 Way Through Hole Turned Pin Open Frame DIL Socket 3A W30514SFTRC

Winslow W30514SFTRC is a high-quality DIL (Dual In-Line) socket designed for secure and reliable connection of ICs and electronic components. This vertical 14 way socket features a 2.54 mm pitch with turned pin type contacts mounted through the PCB for stability in electrical and mechanical connections.

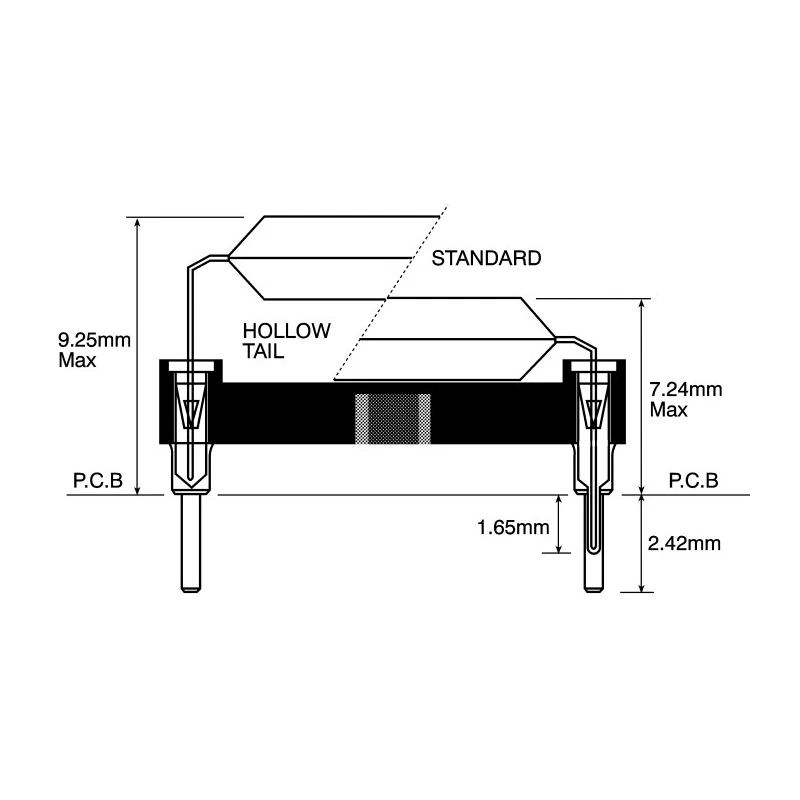

The socket's open frame design and ultra-low profile allow the IC to sit lower above the PCB, minimizing height while maintaining ease of access for installation or replacement. The combination of gold and tin plating on contacts provides excellent conductivity and protection against corrosion, making it suitable for demanding industrial and laboratory environments.

Constructed from beryllium copper alloy, the contacts ensure long lifespan and consistent performance under current load up to 3 amperes. The housing material, polybutylene terephthalate, contributes to the socket's mechanical integrity and thermal resistance up to 150°C.

With overall dimensions of 17.7 mm length, 3.5 mm width, and 10.14 mm depth, this socket is ideal for electronic manufacturing, testing, and repair applications. It complies with standard PCB footprints and fits various IC packages.

14 electrical contacts with 2.54 mm pitch ensure compatibility with most standard ICs. Through hole mount type offers robust PCB installation stability. Turned pin contacts provide enhanced reliability for electrical signal transmission.

Gold and tin plating enhance conductivity and reduce oxidation risks. Maximum operating temperature rated at 150°C for stable performance. Compact vertical orientation and open frame construction facilitate space-saving PCB designs.

This product is manufactured in the United Kingdom and comes in new condition, suitable for use in electronic assemblies, industrial equipment, and test labs. Browse EnvMart categories for more connectors and sockets from Winslow and other top brands.
