ITT Cannon Crimp Extraction Tool DL Series Plug Socket Contact Size 34 thru 12AWG 274-7029-007

Free Delivery in India | Lowest Global Shipping Charges

ITT Cannon Crimp Extraction Tool DL Series Plug Socket Contact Size 34 thru 12AWG 274-7029-007

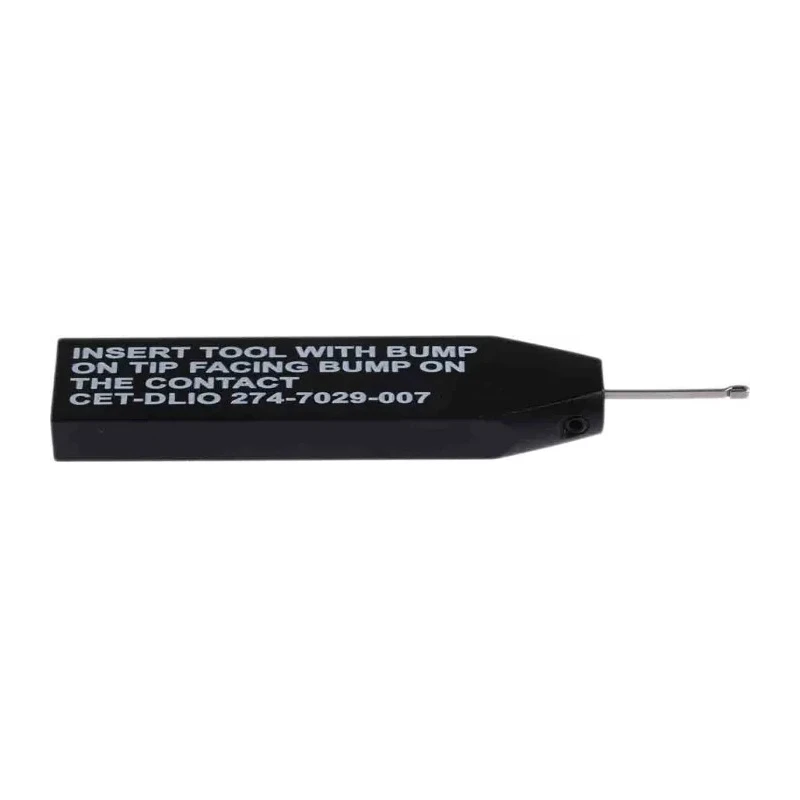

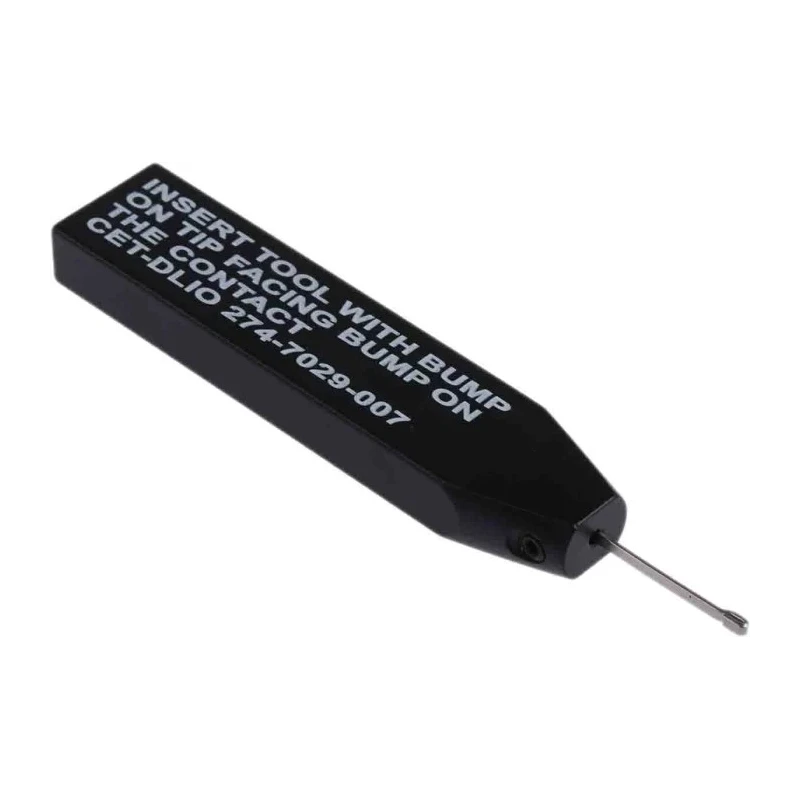

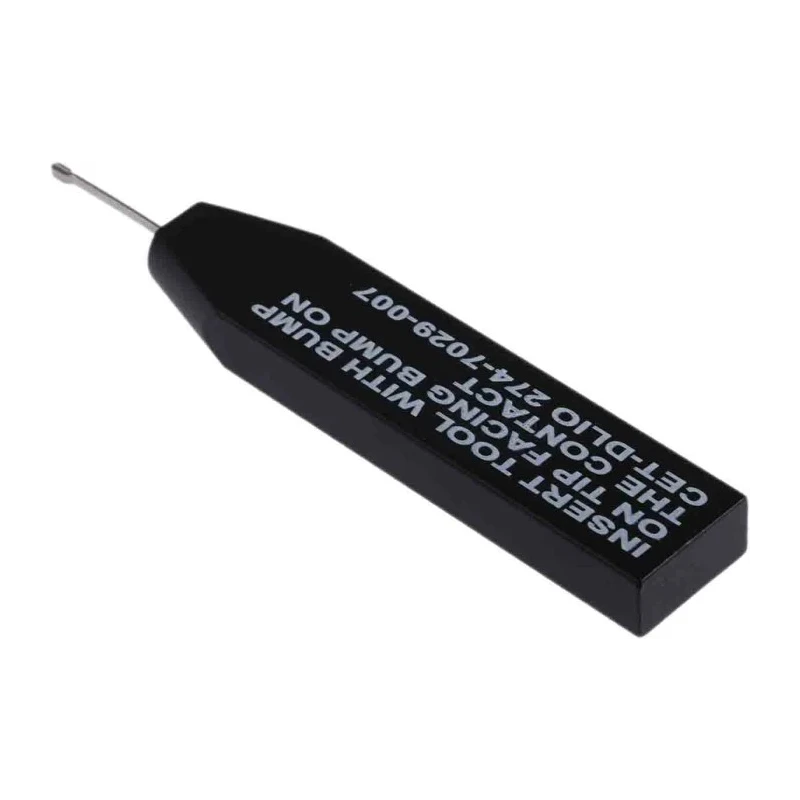

Name: ITT Cannon Crimp Extraction Tool DL Series Plug Socket Contact Size 34 thru 12AWG 274-7029-007
Brand: ITT CANNON
SKU: 117873
Price: 195.78 USD
Availability: InStock



Category Insertion & Extraction Tools Brand ITT CANNON Condition New

Specifications

Country of Origin	India
Brand	ITT Cannon
Series	DL
Sub Type	Extraction Tool
Contact Type	Plug Socket
Contact Size	34 thru 12AWG

Key Features

This tool features a locator on the jaws to position contacts securely for consistent crimping action.
Extraction functionality assists in servicing connectors during maintenance and modifications.
Compatible with the DL range of zero insertion force multi-pole connectors common in diagnostic and test equipment.
Supports contact sizes ranging from 34 to 12 AWG enabling versatility in multiple applications.
Operating instructions are included with the tool for proper usage and maintenance.
Suitable for use in medical, computer, audio, broadcast, and avionics industries requiring high reliability.
Part of the DL Series connectors known for high contact densities and long lifecycle of up to 10,000 mating cycles.

Product Description

ITT Cannon 274-7029-007 is a specialized crimp extraction tool within the DL Series, designed specifically for plug socket contacts sized 34 thru 12AWG. This tool aids technicians in precise contact positioning using an integrated locator on the jaws, which ensures consistent and reliable crimping performance. Alongside its crimping capabilities, it includes an extraction function facilitating efficient servicing of multi-pole connectors during routine maintenance or modifications.

This crimp extraction tool is ideal for use with the DL range of zero insertion force (ZIF) multi-pole connectors, renowned for their high contact densities suitable for complex diagnostic, test, and instrumentation devices across medical, computer, audio, broadcast, and avionics sectors. The DL connectors offer features such as cam-actuated zero insertion force coupling, backshell and strain relief options, as well as metal and plastic plug and socket bodies for robust application environments.

Contact sizes handled range from 34 to 12 AWG, making this tool versatile for various wire gauges common in industrial and electronic applications. The DL Series connectors are engineered for longevity, accommodating up to 10,000 mating cycles, thus guaranteeing durability in demanding operational settings.

This tool includes a locator for accurate positioning of contacts in the tool jaws to achieve consistent crimping. Extraction functionality supports servicing connectors efficiently during maintenance tasks. Correlates with ITT's DL range of ZIF connectors used in medical and avionics equipment for high-density multipole connections.

Compatible with plug socket contacts sized 34 thru 12AWG ensuring wide application scope. Includes operating instructions to ensure correct use and maintenance. Designed to work reliably across multiple industries including electronics, medical instrumentation, and broadcast.

Durability backed by the DL connector design supporting up to 10,000 mating cycles.

Choose the ITT Cannon 274-7029-007 crimp extraction tool for effective connector servicing and repair in professional industrial and technical environments. Discover more high-quality industrial hand tools and insertion & extraction tools at EnvMart.

Explore more products in our Insertion & Extraction Tools category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports contact sizes ranging from 34 to 12 AWG, allowing versatility for various wire gauges in industrial and electronic applications.

It is suitable for use in medical, computer, audio, broadcast, and avionics industries that require high reliability and efficient connector servicing.

The tool features a locator on the jaws that positions contacts securely, ensuring consistent and reliable crimping action during use.

It is compatible with the DL range of zero insertion force (ZIF) multi-pole connectors, which are commonly used in diagnostic and test equipment.

The DL Series connectors are designed to accommodate up to 10,000 mating cycles, ensuring durability in demanding operational settings.

Yes, operating instructions are included with the tool to ensure proper usage and maintenance for users.

The tool is manufactured in India.

This tool is classified as an extraction tool within the DL Series.

It works specifically with plug socket contacts, making it suitable for various applications requiring this type of connection.

The tool includes operating instructions that provide guidance on proper usage and maintenance, although specific maintenance intervals are not detailed.

The primary function is to assist technicians in precise contact positioning for crimping and to facilitate efficient extraction of connectors during maintenance tasks.

The DL Series connectors are known for their high contact densities and robust application environments, making them ideal for complex diagnostic and instrumentation devices.
