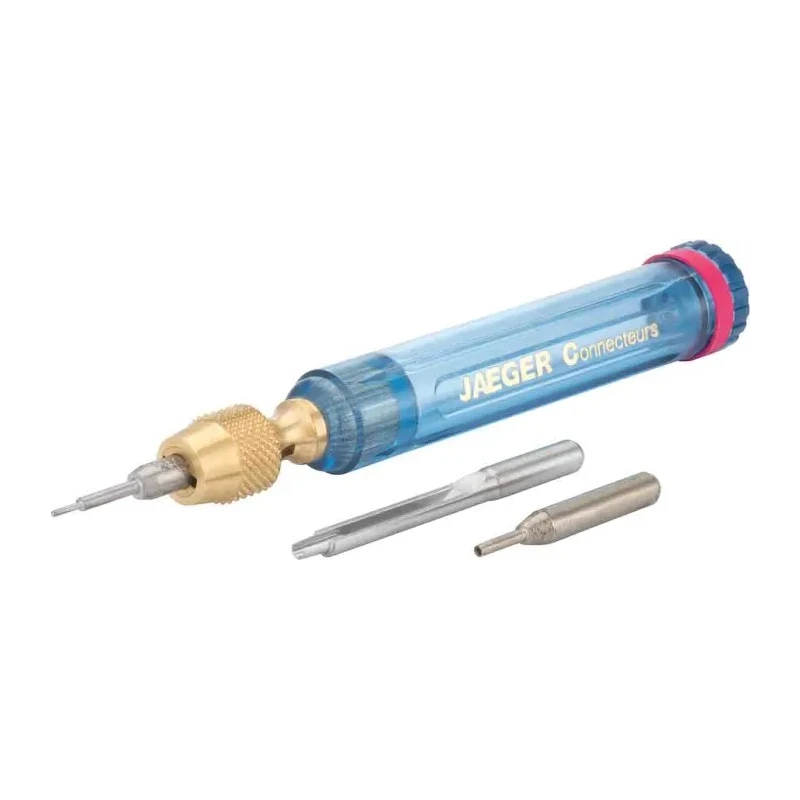

Jaeger Insertion & Extraction Tool Miniature HD Series Crimp Contact Extraction & Insertion Tool Contact 7691 310 06
Specifications
| Country of Origin | France |
|---|---|
| Brand | Jaeger |
| Series | Miniature HD |
| Sub Type | Extraction & Insertion Tool |
| Contact Type | Crimp |
| For Use With | Crimp Contacts |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 334-6365Brand: JaegerManufacturers Part No.: 7691 310 06 |
Key Features
- The tool is specifically engineered for the Miniature HD series of crimp contacts.
- Suitable for removal and fitting of male and female contacts with 0.76 mm diameter.
- Essential for size 22D crimp contacts requiring M22520/2-01 model 4-indent crimp tools.
- An optional positioner is available to accommodate Miniature HD series contacts.
- Manufactured in France with a focus on reliable and precise performance.
- Ideal for industrial, electrical, and electronics assembly and maintenance applications.
Product Description
Jaeger 7691 310 06 Insertion & Extraction Tool is crafted for use with the Miniature HD series of crimp contacts, providing precision handling for insertion and extraction processes. This tool accommodates the removal and fitting of both male and female contacts with a contact diameter of 0.76 mm, ensuring secure and efficient operations in connector assembly.
The tool is essential for working with size 22D crimp contacts which require a specialized M22520/2-01 model 4-indent crimp tool for crimping. For enhanced adaptability, an optional positioner is available to support Miniature HD series contacts, improving accuracy and ease of use.
Manufactured in France, this insertion and extraction tool exemplifies quality and precision engineering, meeting the stringent demands of electrical and electronics industries. It is suitable for various industrial, laboratory, manufacturing, and maintenance environments where precision contact handling is critical.
The ergonomic design ensures comfortable operation during repeated use, minimizing operator fatigue. It supports high-reliability assembly tasks and helps maintain the integrity of sensitive electrical connections.
The tool supports precise contact insertion and extraction with minimal damage risk. Compatible with crimp contacts of the Miniature HD series with a 0.76 mm diameter. Works with size 22D crimp contacts requiring specialized crimping tools.
Optional positioner is available for enhanced contact accommodation. Manufactured to high standards in France for dependability and longevity. Ideal for industrial assembly, maintenance, and repair applications requiring precision contact manipulation.
Explore further selections in the Insertion & Extraction Tools category on EnvMart for complementary connectors and crimping accessories.
Explore more products in our Insertion & Extraction Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insertion and extraction tool accommodates contacts with a diameter of 0.76 mm, suitable for both male and female contacts in the Miniature HD series.
It is specifically engineered for use with size 22D crimp contacts that require the M22520/2-01 model 4-indent crimp tool for crimping.
Yes, an optional positioner is available to accommodate Miniature HD series contacts, enhancing the tool's adaptability and ease of use.
This tool is manufactured in France, emphasizing quality and precision engineering.
It is ideal for industrial, electrical, and electronics assembly and maintenance applications where precision contact handling is critical.
The primary function of this tool is to facilitate the insertion and extraction of crimp contacts, ensuring secure and efficient operations in connector assembly.
The tool is branded by Jaeger, known for its reliable and precise performance in contact handling.
This model is classified as an extraction and insertion tool specifically designed for crimp contacts.
The tool features an ergonomic design that ensures comfortable operation during repeated use, minimizing operator fatigue.
The design supports precise contact insertion and extraction with minimal risk of damage, helping to maintain the integrity of sensitive electrical connections.
The RS Stock Number for this tool is 334-6365, which can be used for reference in inquiries or orders.
This tool works with crimp contacts specifically from the Miniature HD series, designed for efficient assembly and maintenance tasks.
