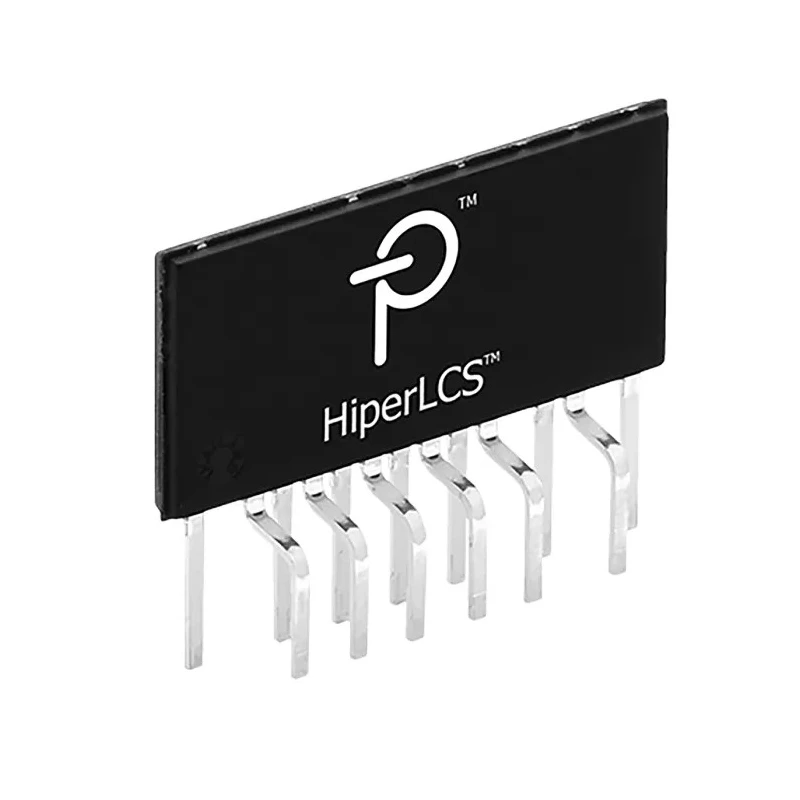

Power Integrations AC/DC Converter 30.9 A, 530V, -1.3 V, eSIP-16J LCS708HG

Power Integrations LCS708HG is an advanced AC/DC Converter featuring a maximum output current of 30.9 A and a maximum output voltage of 530 V. This device utilizes the HiperLCS family LLC Half Bridge topology and is housed in a compact eSIP-16J through-hole package measuring 16.59mm by 8.25mm by 2.06mm.

It delivers an output power of up to 440 W, making it ideal for industrial, commercial, and power management applications requiring efficient and compact power conversion. The converter supports a wide input voltage range of 11.4 V to 15 V and maintains operation reliably in harsh conditions from -40°C to 150°C.

The integrated multi-function controller provides programmable brown-in/out thresholds, under-voltage and over-voltage protection, over-current and short-circuit protection, as well as over-temperature shutdown.

Features include programmable soft-start time and delay, which enable gentle power ramp-up and reduce stress on components.

This high-efficiency AC/DC converter works at high switching frequencies up to 1 MHz with nominal steady-state operation around 500 kHz, optimizing electromagnetic compatibility and minimizing losses.

High efficiency with integrated high-side and low-side gate drivers. Compact and reliable through-hole eSIP-16J package for ease of PCB assembly. Multiple comprehensive protection features to ensure device and system safety.

Suitable for power supply designs up to 400 W. RoHS compliant, meeting environmental standards. Compact size reduces PCB space requirements and facilitates thermal management. Programmable brown-out and soft-start functions provide versatile usage.

Industrial-grade operating temperature range supports diverse environments. Ideal for use in industrial, power management, instrumentation, and manufacturing equipment. The Power Integrations LCS708HG AC/DC Converter is engineered to simplify power supply design by integrating key components and driver stages within a single, compact SIP package.

This significantly reduces external component count and PCB layout complexity while enhancing system robustness and efficiency.
