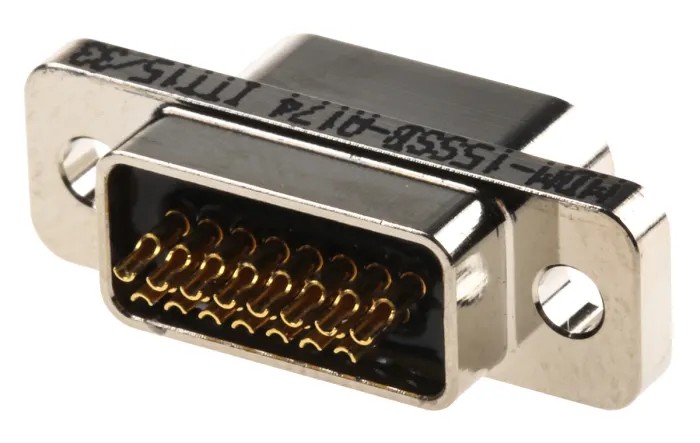

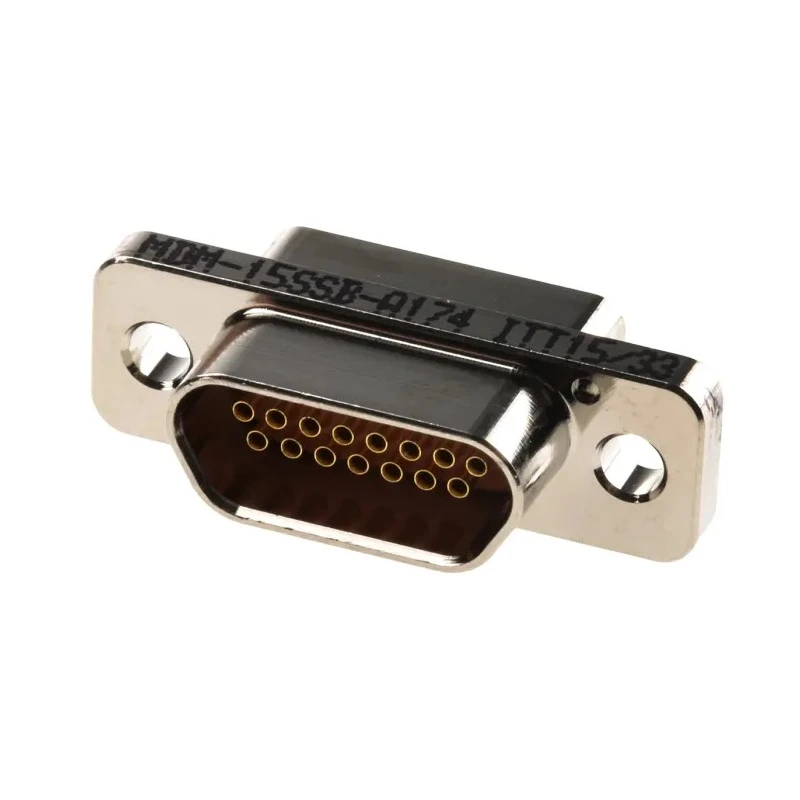

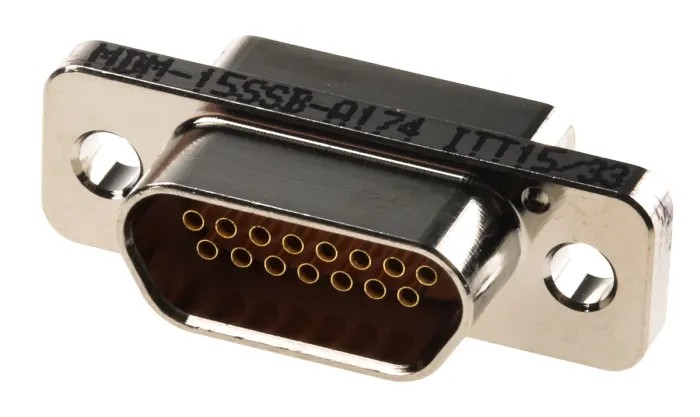

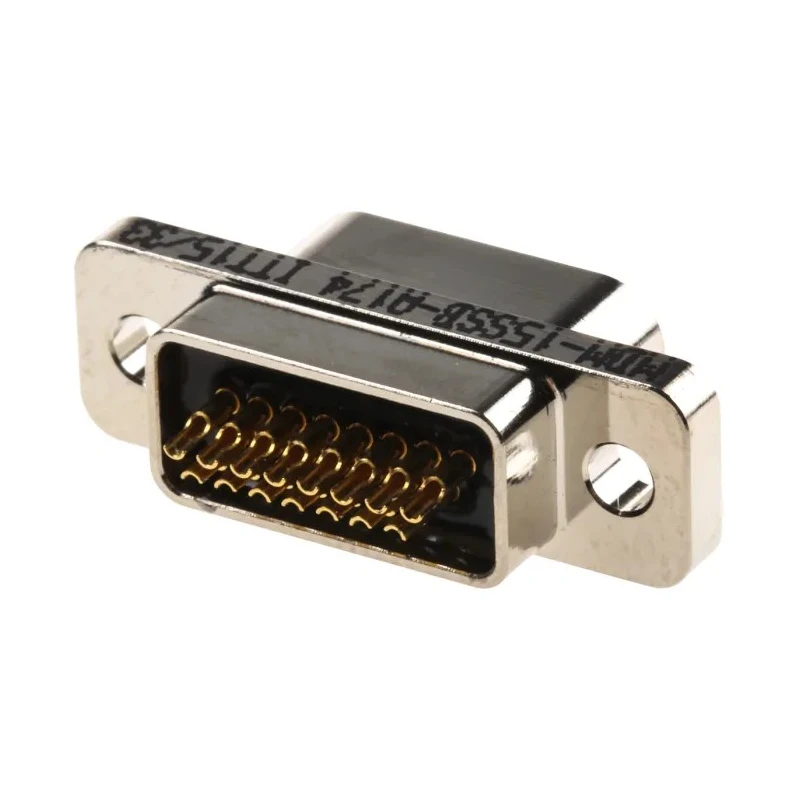

ITT Cannon 15 Way Straight 1.27 mm Pitch Panel Mount Micro-D D-Sub Connector MDM-15SSB-A174
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 3A |
| Model | MDM-15SSB-A174 |
| Mount Type | Panel Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MDM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Contact Size | 24 |
| Connector Type D | Micro-D |
| Part Numbers | MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire |
| RS PRO 15 Way Straight Panel Mount D-Sub Connector FemaleRS Stock No. | 245-0902Brand: RS PRO |
| ITT Cannon MDM 15 Way Straight 1.27 mm Pitch Cable D-Sub ConnectorBrand | ITT Cannon |
Key Features
- The connector supports a current rating of 3 amps for reliable electrical performance.
- It has a minimum operating temperature of -55°C and maximum operating temperature of 125°C.
- Housing is made from durable lightweight aluminium alloy with electroless nickel plating for EMI and RFI shielding.
- Contacts are size 24 MICROPIN™ or MICROSOCKET™ with gold plating for excellent conductivity and corrosion resistance.
- The termination type is solder, suitable for 26AWG maximum harness wire.
- Panel mount type ensures secure attachment with 2.31 mm mounting holes.
- Ideal for military, industrial and commercial electronic equipment requiring moisture sealed and rugged high density connectors.
Product Description
ITT Cannon MDM-15SSB-A174 is a high-quality 15 way straight Micro-D D-Sub connector designed for precision panel mount use with a 1.27 mm contact pitch. This connector belongs to the MDM series, featuring a rugged electroless nickel plated aluminium alloy housing that provides robust EMI and RFI shielding against electromagnetic interference. The moisture sealed design uses silicone elastomer compression interfacial seals between contacts and shell to protect against humidity and moisture ingress, ensuring reliable operation in harsh environments.
The connector pins are size 24 MICROPIN™ or MICROSOCKET™ contacts crafted from copper alloy with a gold plating that enhances electrical conductivity and prevents oxidation. It supports a 3 amp current rating, with operation over a wide temperature range from -55°C to 125°C, making it suitable for demanding industrial, military, and commercial applications. The solder termination type accepts up to 26AWG harness wiring for secure electrical connection.
This connector offers precise 1.27 mm pitch contact spacing and comes with mounting holes of 2.31 mm diameter to facilitate panel installation. These features make it ideal for computer interfacing, aerospace controls, and other electronic equipment requiring high density, reliable connections in compact spaces.
The MDM series connectors provide durable, lightweight, and compact solutions with strong materials and advanced moisture sealing technology for enhanced performance and longevity.
15 way straight Micro-D connector with 1.27 mm pitch for panel mounting. Gold plated copper alloy size 24 contacts for excellent conductivity. Aluminium alloy housing with electroless nickel plating for EMI/RFI shielding.
Solder termination type supporting 26AWG max harness wire. Wide operating temperature range from -55°C to 125°C. Moisture sealed with silicone elastomer compression interfacial seals. Robust design suitable for military, industrial, and commercial applications.
This product belongs to the Electronics & Electricals category under Power Connectors and D-Sub Connector subcategory. Discover more reliable connectors and electrical components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3 amps, ensuring reliable electrical performance.
This model operates within a temperature range of -55°C to 125°C, making it suitable for various environments.
The housing is made from lightweight aluminium alloy with electroless nickel plating, while the contacts are copper alloy with gold plating for enhanced conductivity.
It features a solder termination type that accepts up to 26AWG maximum harness wire for secure connections.
It has 15 contacts, specifically designed for high-density applications.
The contact pitch size is 1.27 mm, which allows for compact arrangements in electronic setups.
This model is designed for panel mounting, featuring 2.31 mm mounting holes for secure installation.
Yes, it is moisture sealed with silicone elastomer compression interfacial seals to protect against humidity and moisture ingress.
It is ideal for military, industrial, and commercial electronic equipment that requires reliable connections in harsh environments.
The orientation of this connector is straight, facilitating easy installation in various setups.
The connector is manufactured in India, ensuring compliance with local production standards.
The contact gender for this model is female, suitable for connecting with male counterparts in various applications.
