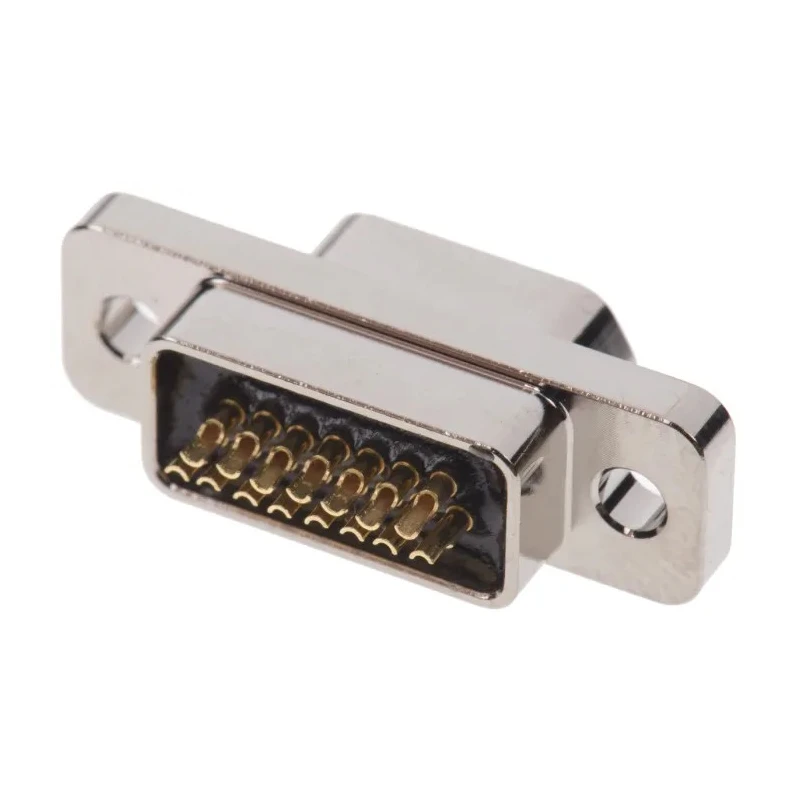

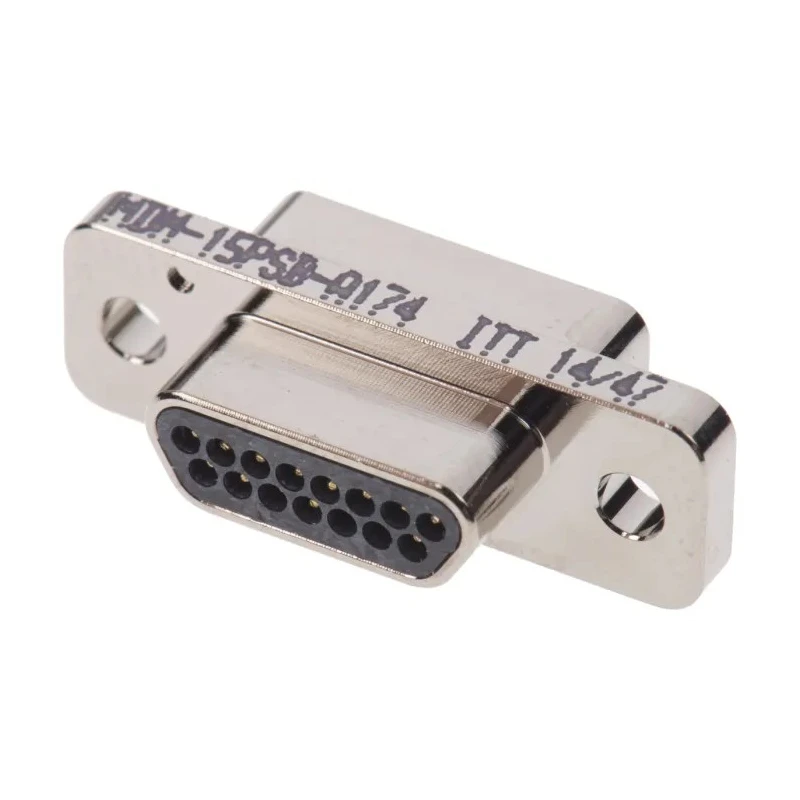

ITT Cannon 15 Way Straight Micro-D Panel Mount Aluminium Alloy D-Sub Connector 1.27 mm Pitch MDM-15PSB-A174

ITT Cannon MDM-15PSB-A174 is a 15 Way Straight Micro-D Panel Mount D-Sub Connector featuring a compact 1.27 mm pitch designed for high-density electronic connections. The connector shell is crafted from aluminium alloy with an electroless nickel plating to provide outstanding mechanical strength and EMI/RFI shielding. This rugged design incorporates silicone elastomer compression seals between contacts and shell units, ensuring protection from moisture and humidity for reliable performance even in harsh environmental conditions.

The connector contains 15 male MICROPIN™ contacts made from copper alloy with gold plating on size 24 contacts for superior electrical conductivity and corrosion resistance. It supports a current rating of 3 amperes and operates within a temperature range from -55°C to 125°C, making it suitable for demanding industrial, military, and commercial applications. The panel mount is facilitated by 2.31 mm mounting holes for secure attachment.

Termination is via solder pot designed for 26 AWG maximum harness wire, providing a robust and reliable connection method. The MDM series connectors offer multiple termination options to accommodate various wiring types and applications. These connectors are ideal for use in computer interfacing, telecommunications, instrumentation, and other electronics requiring high connector density and environmental sealing.

Lightweight aluminium alloy shell with electroless nickel plating offers mechanical protection and EMI/RFI shielding. Silicone elastomer seals prevent moisture ingress, enhancing durability in challenging environments. Gold plated copper alloy contacts provide reliable electrical performance and low contact resistance.

Wide operating temperature range enables use in extreme conditions. Solder termination supports harness wire up to 26 AWG for versatile wiring applications. Compact 1.27 mm pitch facilitates high-density connector arrangements.

Standard 2.31 mm mounting holes streamline panel installation. Suitable for military, industrial, and computer interfacing applications that demand durability.

Set includes one MDM-15PSB-A174 connector with 15 contact points. Explore more connectors in the ITT Cannon series for versatile application needs. Browse our extensive collection of D-Sub Connectors on EnvMart for your electronics and industrial component requirements.
