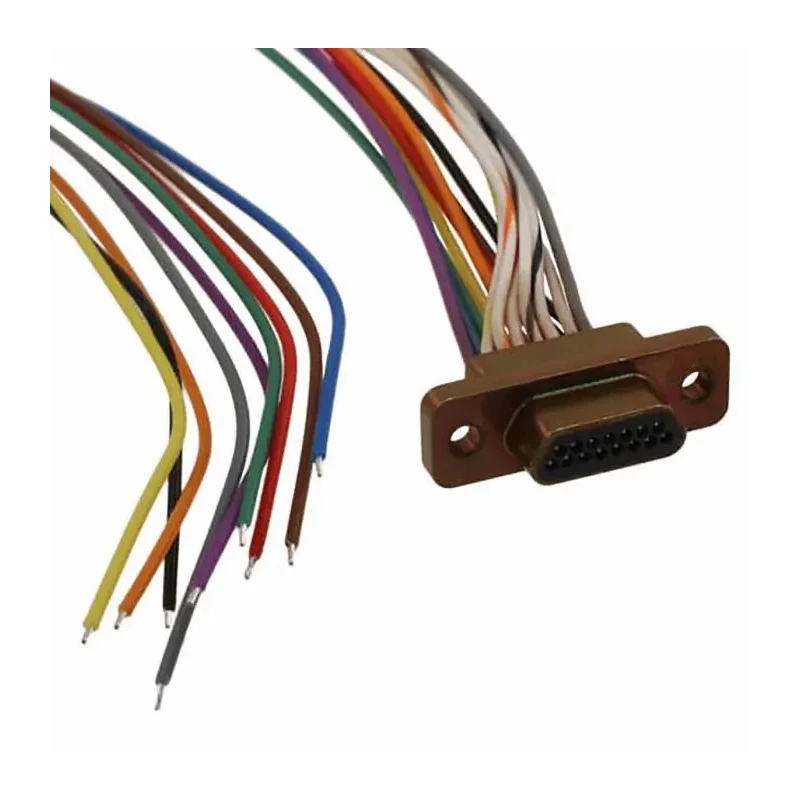

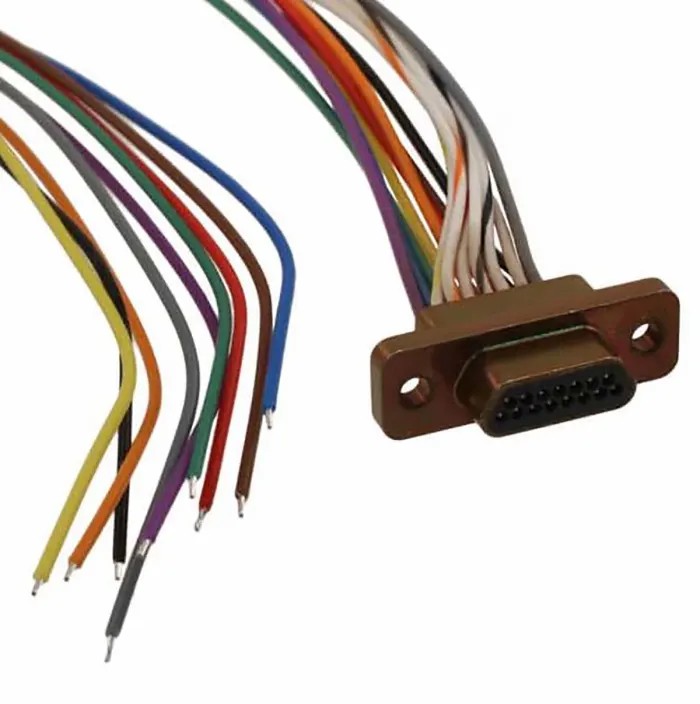

ITT Cannon 15 Way Straight 1.27 mm Pitch Micro-D Cable D-Sub Connector MDM-15PH003B-A174
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 3A |
| Model | MDM-15PH003B-A174 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MDM |
| Termination Type | Pre-Wired |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Contact Size | 8 |
| Part Numbers | MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire |
| ITT Cannon MDM 15 Way Straight 1.27 mm Pitch Panel Mount D-Sub ConnectorBrand | ITT Cannon |
| Glenair Coaxial Cable, 457mmBrand | Glenair |
Key Features
- Features 15 gold-plated copper alloy contacts for reliable signal transmission.
- Constructed with an aluminium alloy housing for durability and EMI/RFI shielding.
- Operates in temperatures from -55°C to 125°C for harsh environment suitability.
- Includes pre-wired harness termination using MIL-W-16878/4 type cable.
- Offers moisture sealed interfacial seals to protect against humidity and moisture ingress.
- Designed with a 1.27 mm contact pitch for high-density connector solutions.
- Suitable for military, industrial, and commercial computer interfacing applications.
- Manufactured in Mexico ensuring consistent quality and performance standards.
Product Description
ITT Cannon MDM-15PH003B-A174 is a 15 way straight micro-D cable D-Sub connector offering a 1.27 mm pitch, designed specifically for demanding industrial, military, and commercial electronic applications.
Its aluminium alloy shell is electroless nickel plated to provide enhanced mechanical strength and robust electromagnetic (EMI) as well as radio frequency interference (RFI) shielding capabilities. The micro-D connectors incorporate silicone elastomer compression interfacial seals to effectively protect both contacts and the connector shell from moisture and humidity, ensuring reliable performance in harsh environments.
The connector utilizes size 24 MICROPIN™ or MICROSOCKET™ copper alloy contacts with gold plating to guarantee superior electrical conductivity and corrosion resistance. The termination type is pre-wired harness wire with 18 inch, 7¾ strand 26 AWG Teflon insulated wire, color-coded per MIL-STD-681 system I standards. Standard mounting holes of 2.31 mm diameter provide secure cable installation.
This connector series is engineered for demanding environments with operating temperature ranges from -55°C up to 125°C. It supports current up to 3A and is suitable for integration in military gear, industrial control systems, and commercial computer interfacing equipment.
15 gold-plated copper alloy contacts ensure reliable data and power transmission. Electroless nickel plated aluminium alloy shell provides strength and shielding. Moisture sealed design prevents humidity damage to contacts and shell.
Pre-wired harness termination with MIL-W-16878/4 type E Teflon wire. Compatible with high-density configurations on 1.27 mm pitch footprint. Operating temperature from -55°C to 125°C for extreme conditions. Manufactured in Mexico adhering to strict quality and performance standards.
The package is designed for use in demanding industrial, military, laboratory, and commercial applications, including electronic component assemblies and computing interfaces. Explore the extensive selection of D-Sub Connectors and related power connectors under the ITT Cannon brand for dependable cable and connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 125°C.
This connector features 15 gold-plated copper alloy contacts for reliable signal transmission.
The pitch size of this D-Sub connector is 1.27 mm, designed for high-density configurations.
The connector is constructed with an aluminium alloy housing and copper alloy contacts, which are gold plated for enhanced conductivity.
This connector supports a current rating of up to 3A.
It features a pre-wired harness termination using MIL-W-16878/4 type cable.
It operates effectively in temperatures ranging from -55°C to 125°C, making it suitable for harsh environments.
The connector includes moisture sealed interfacial seals to protect against humidity and moisture ingress.
This connector is manufactured in Mexico, ensuring consistent quality and performance standards.
It is designed for military, industrial, and commercial computer interfacing applications.
The orientation of this connector is straight.
This connector has a male contact gender.
