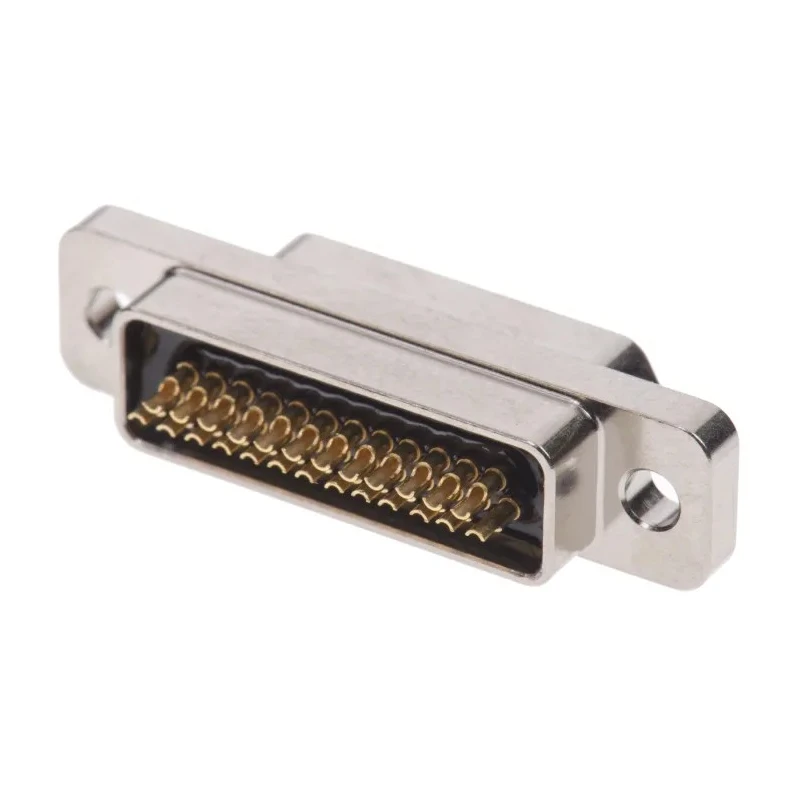

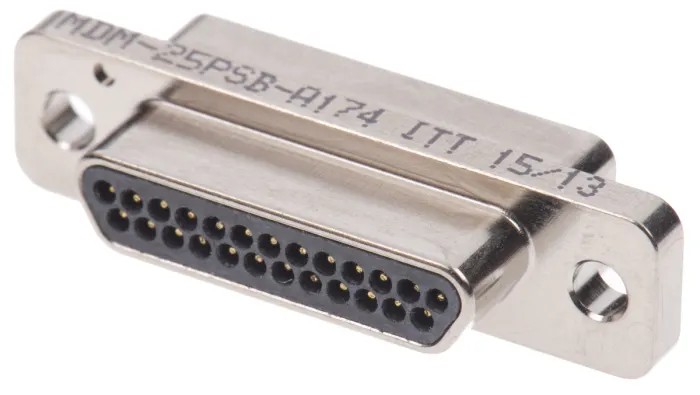

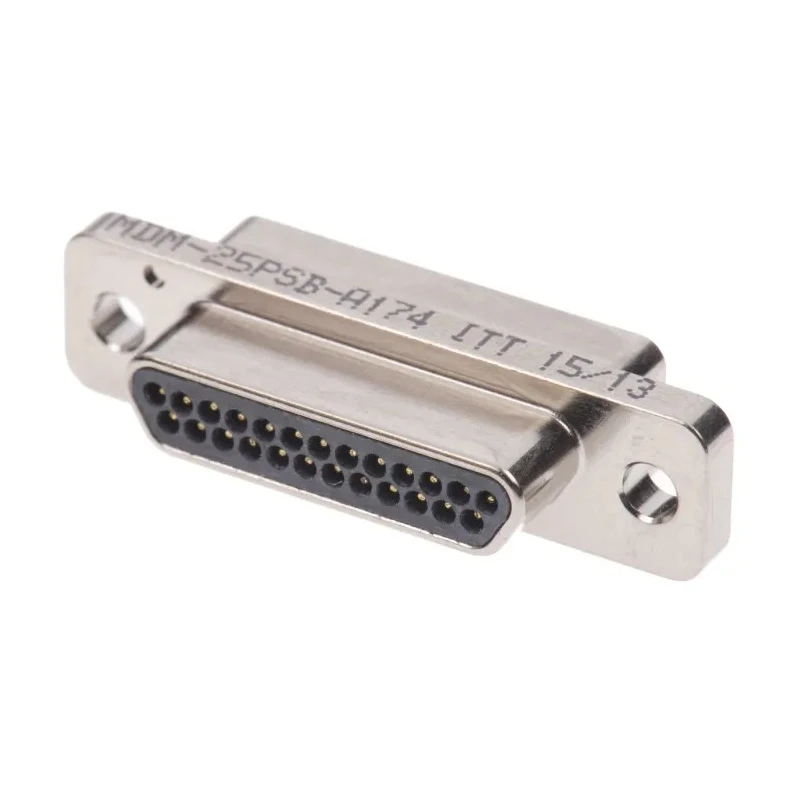

ITT Cannon 25 Way Straight 1.27 mm Pitch Panel Mount Micro-D Solder Male D-Sub Connector MDM-25PSB-A174
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 3A |
| Model | MDM-25PSB-A174 |
| Mount Type | Panel Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MDM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Contact Size | 24 |
| Connector Type D | Micro-D |
| Part Numbers | MDM-xxxSB-xxx have solder pot terminations that accept 26AWG max harness wire |
| ITT Cannon MDM 25 Way Straight 1.27 mm Pitch Cable D-Sub ConnectorBrand | ITT Cannon |
Key Features
- Features a 1.27 mm pitch for precise contact spacing.
- Panel mount type with solder termination for secure connections.
- Constructed with an aluminium alloy housing for durability and EMI/RFI shielding.
- Male contact gender with gold-plated copper alloy contacts ensures reliable conductivity.
- Operates within a temperature range of -55°C to 125°C for varied environments.
- Suitable for military, industrial, and commercial applications.
- Rated for a current of 3A providing dependable electrical performance.
- Micro-D type connector with 25 contacts for high contact density.
Product Description
ITT Cannon MDM-25PSB-A174 is a 25 Way Straight Panel Mount Micro-D solder male D-Sub Connector designed for demanding industrial and military electronic applications.
This connector has a 1.27 mm pitch and features a lightweight yet rugged aluminium alloy housing plated with electroless nickel to provide excellent mechanical strength and effective EMI and RFI shielding.
The gold-plated copper alloy contacts of size 24 MICROPIN™ ensure superior electrical conductivity and long-lasting performance. The connector operates reliably in extreme temperature ranges from -55°C to 125°C, suitable for harsh environments.
MDM series connectors include moisture sealing with silicone elastomer compression interfacial seals which prevent humidity ingress between contacts and the shell. This ensures durability and secure connections in diverse conditions.
This component uses solder terminations compatible with 26AWG maximum harness wire, ideal for panel mounting installations requiring robust and precise interconnections. High-density 25 contact Micro-D connector with 1.27 mm pitch.
Aluminium alloy shell with electroless nickel plating for strength and shielding. Moisture-sealed design with silicone elastomer compression seals. Gold-plated copper alloy size 24 contacts for excellent conductivity. Operating temperature range from -55°C to 125°C for harsh environments.
Solder termination suitable for 26AWG max wire harnesses.
This connector is widely utilized in military, industrial, and commercial electronic equipment requiring reliable and compact connections with high contact density and environmental protection.
Explore more specialized connectors and electronic components in the Electronics & Electricals category at EnvMart for your project and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this connector have a pitch of 1.27 mm, allowing for precise contact spacing.
This connector is rated for a maximum current of 3A, providing dependable electrical performance.
It features an aluminium alloy housing for durability, with gold-plated copper alloy contacts for reliable conductivity.
The connector operates reliably within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This model uses solder termination, compatible with 26AWG maximum harness wire, ideal for panel mounting installations.
This connector has 25 contacts, providing high contact density for various applications.
Yes, it is widely utilized in military, industrial, and commercial electronic equipment requiring reliable connections.
It is a Micro-D type connector, designed for compact and efficient connections in electronic systems.
Yes, the aluminium alloy housing is designed to provide effective EMI and RFI shielding.
The MDM-25PSB-A174 features a male contact gender, ensuring compatibility with corresponding female connectors.
The MDM-25PSB-A174 is manufactured in India.
This connector is part of the MDM series, which includes connectors designed for demanding applications.
