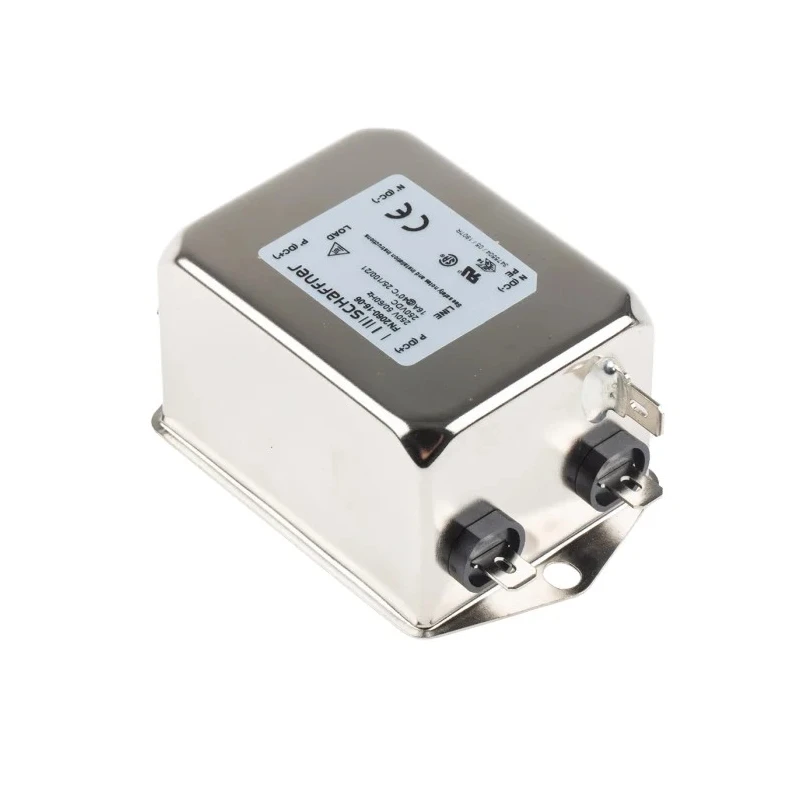

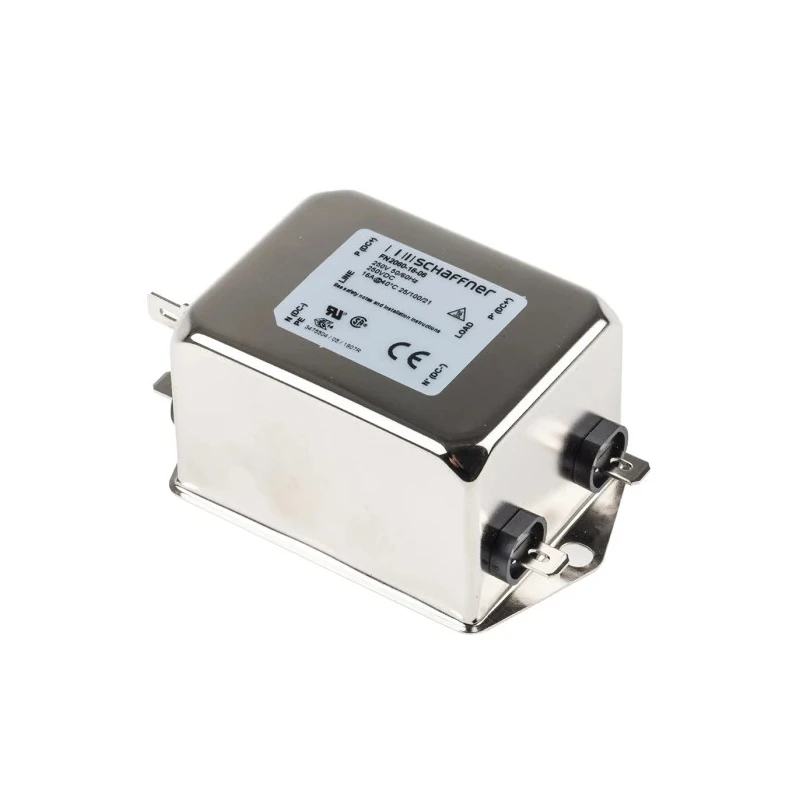

Schaffner Chassis Mount EMI Filter 16 A 250V AC/DC 0Hz-400Hz Fast-On Termination Single Phase FN2060
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 40.3mm |
| Length | 54mm |
| Model | FN2060 |
| Depth | 85mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 0, 400Hz |
| Series | FN2060 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 1mΩ |
| Capacitance | 330nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 650μH |
| Termination Style | Fast-On |
| 2 stage high performance filter,16ABrand | BLP |
Key Features
- Two-stage filter designed for high conducted attenuation performance.
- Features robust aluminium casing for reliable chassis mounting.
- Rated for operating frequency range from DC (0Hz) to 400Hz.
- Fast-On termination style with 0.25in connectors for quick installation.
- Suitable for diverse industrial and electronic equipment requiring noise suppression.
- Operates within temperatures from -25°C to 100°C.
- Compact dimensions of 54mm length, 85mm depth, and 40.3mm height.
- Low leakage current of 734μA enhancing safety and efficiency.
Product Description
Schaffner FN2060-16-06 is a premium chassis mount EMI filter designed to provide high-performance electromagnetic interference suppression for industrial, electronic, and medical equipment. Featuring a two-stage filtering configuration, it delivers excellent attenuation of conducted noise, improving reliability and compliance with electromagnetic compatibility standards.
The filter supports a maximum current rating of 16A and can operate efficiently across a voltage range up to 250V AC/DC. The frequency range extends from 0Hz to 400Hz, accommodating a wide range of AC and DC applications. The compact aluminium casing is robust and optimized for chassis mounting, facilitating quick and secure installation using 0.25 inch Fast-On termination connectors.
It operates reliably in environments ranging from -25°C minimum to 100°C maximum, making it suitable for demanding industrial settings. Its low leakage current of 734μA ensures minimal power wastage and improved safety. The inductance is 650μH and capacitance is 330nF, which together provide superior noise filtering capabilities. The minimal resistance of 1mΩ reduces power loss and heat generation.
Two-stage high attenuation EMI filter in rugged aluminium chassis mount design. Rated current: 16A with maximum voltage of 250V AC/DC. Operating frequency from DC to 400Hz for versatile use. Fast-On 0.25in termination for easy connection.
Compact with dimensions LxDxH: 54mm x 85mm x 40.3mm. Leakage current of only 734μA for increased safety. Inductance 650μH and capacitance 330nF for effective noise suppression. Meets robust industrial performance needs across electronics and machinery.
Ideal for electrical and electronic equipment, medical devices, and industrial automation.
This filter is a reliable solution for reducing electromagnetic interference in sensitive equipment and enhancing operational stability. Environmentally rugged and engineered by Schaffner, it assures durability and performance. Suitable for industrial, laboratory, manufacturing, and HVAC applications requiring EMI mitigation.
Explore more Schaffner EMI Filters and related power line filters in our category for your industrial and electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 16A.
It operates efficiently across a frequency range from DC (0Hz) to 400Hz.
The dimensions of this model are 54mm in length, 85mm in depth, and 40.3mm in height.
It uses a Fast-On termination style with 0.25 inch connectors for quick installation.
The filter has a low leakage current of 734μA, enhancing safety and efficiency.
The capacitance value is 330nF, which contributes to its noise suppression capabilities.
The inductance of this filter is 650μH, aiding in effective noise filtering.
It operates reliably in environments ranging from -25°C to 100°C.
The resistance is minimal at 1mΩ, which reduces power loss and heat generation.
This model is designed for chassis mounting, ensuring secure installation.
It is suitable for industrial, electronic, and medical equipment requiring noise suppression.
The maximum voltage rating is 250V AC/DC, making it versatile for various applications.
