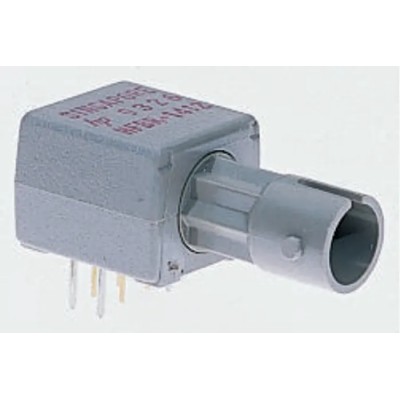

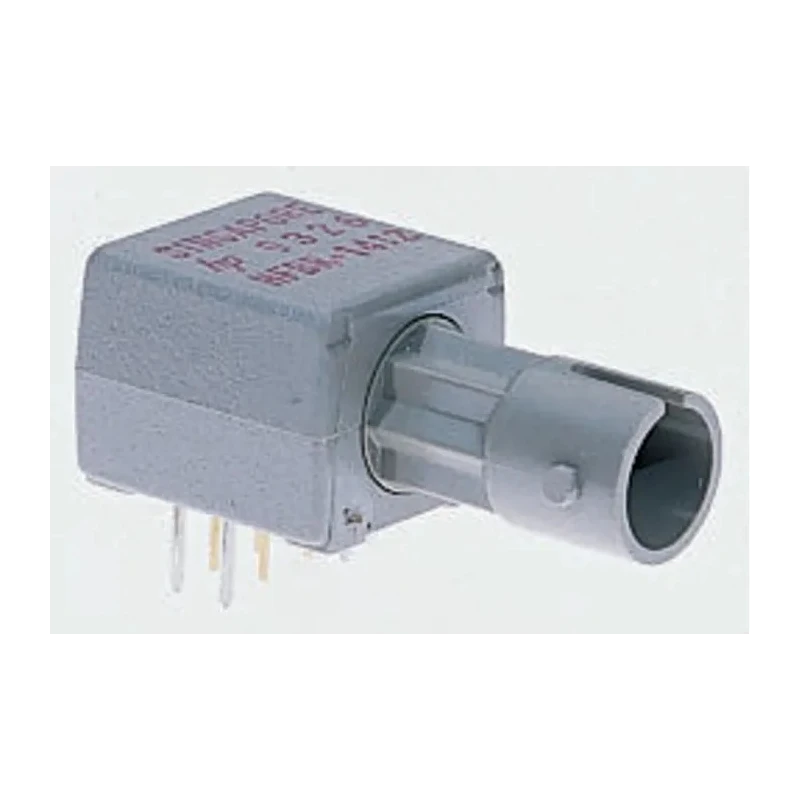

Broadcom 160 MBd 820 nm Fibre Optic Receiver, Round ST Connector HFBR-2416MZ

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 160 MBd 820 nm Fibre Optic Receiver, Round ST Connector HFBR-2416MZ

Name: Broadcom 160 MBd 820 nm Fibre Optic Receiver, Round ST Connector HFBR-2416MZ
Brand: Broadcom
SKU: 137965



Category Fibre Optic Receiver Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	10.2mm
Length	27.2mm
Model	HFBR-2416MZ
Connector Type	ST
Width	12.7mm
Mount Type	Through Hole
Series	HFBR
Number of Pins	8
Typical Rise Time	6.3ns
Typical Fall Time	3.3ns
Maximum Data Rate	160MBd
Output Signal Type	Analogue
Connector Shape	Round
Wavelength of Peak Sensitivity	820nm
This product is also available in other popular industry-standard connectors	SMA, SC and FC

Key Features

Operates with a round ST connector for efficient fiber optics coupling.
Maximum data rate capability of 160 MBd for high-speed communication.
Peak sensitivity wavelength of 820 nm suited for multimode fibers.
Typical rise time of 6.3 ns and fall time of 3.3 ns ensures fast response.
Through-hole mount type with 8 pins for secure PCB attachment.
Analogue output signal type ideal for industrial and communication applications.
Designed according to the HFBR series specifications.
Suitable for industrial fiber optic communication links and systems.

Product Description

Broadcom HFBR-2416MZ is a high-performance fibre optic receiver designed for industrial and commercial applications requiring reliable optical data communication. It supports a maximum data rate of 160 MBd and operates at an 820 nm wavelength, making it compatible with various multimode optical fibers including 50/125 μm and 62.5/125 μm fibers.

The receiver features a round ST connector, providing a conductive ST-threaded port that ensures efficient and secure optical coupling. Its integrated photo IC includes a photodetector and DC amplifier, driving an open-collector Schottky output transistor to deliver analogue output signals, making it suitable for a range of devices and link systems.

Its through-hole mounting with 8 pins allows for stable and reliable installation on printed circuit boards. The compact form factor with 27.2 mm length, 12.7 mm width, and 10.2 mm height facilitates integration into space-constrained environments.

This fiber optic receiver is RoHS compliant and comes from the HFBR series, known for cost-effective, high-quality optical components suitable for power generation, transportation, medical, gaming, and other industries requiring fast and reliable data transmission.

Operates with a round ST connector ensuring strong optical coupling. Max data rate of 160 MBd supports high-speed data links. Typical rise time 6.3 ns and fall time 3.3 ns provide fast signal transitions. Through-hole mount type with 8 pins ensures easy PCB integration.

Compact dimensions facilitate use in tight installation spaces. Outputs analogue signals compatible with various communication systems. RoHS compliant and designed for industrial applications. Suits use with 50/125 μm, 62.5/125 μm, and other common fiber types.

Part of the HFBR series known for reliability and performance.

Ideal for industrial fiber optic communication, computer peripheral links, and digital cross-connect links. Available packaging includes production packs for efficient insertion in manufacturing processes. This product supports various industrial use cases including laboratory, construction, HVAC, manufacturing, and water treatment systems. Browse EnvMart’s extensive range of Fibre Optic Receivers to find compatible components and accessories.
