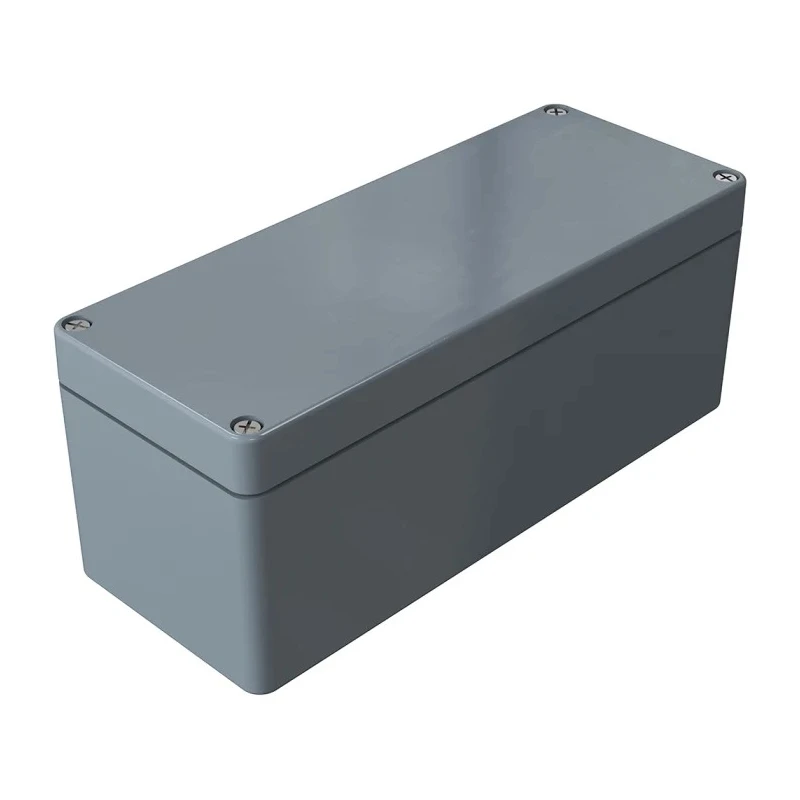

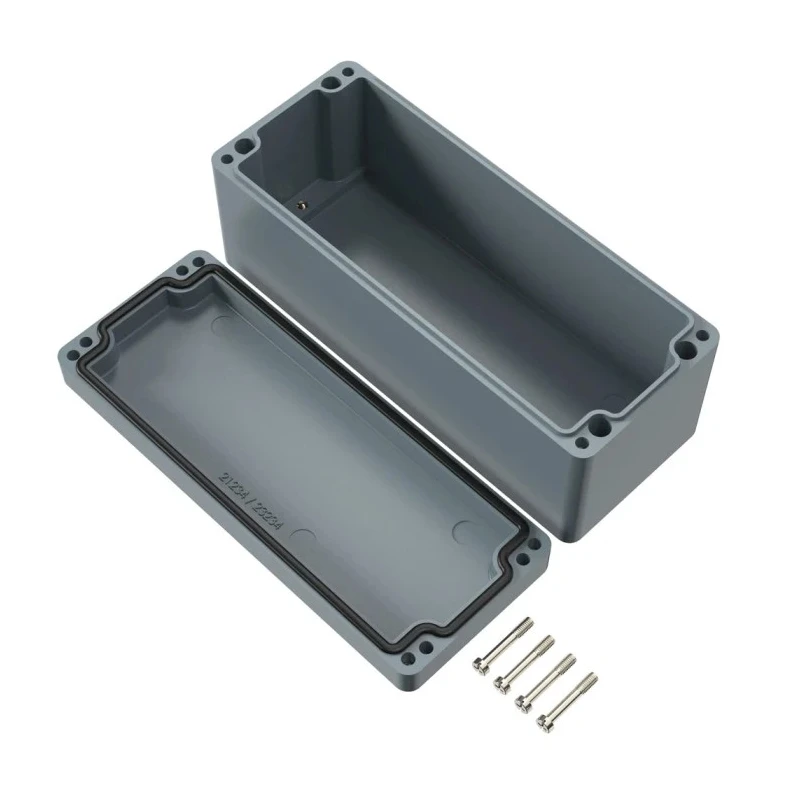

Rose Grey Fibreglass Reinforced Thermoset Polyester Enclosure Polyester Standard Series IP66 IK08
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Fibreglass Reinforced Thermoset Polyester, Graphite |
| Model | IP66 |
| IP Rating | IP66 |
| Gross Weight | 530g |
| Series | Polyester Standard |
| External Width | 75mm |
| External Height | 190mm |
| Shielding | Unshielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | RoHS Compliant |
| External Length | 190mm |
| Lid Colour | Grey |
| IK Rating | IK08 |
| Gasket Material | Chloroprene |
| Number of Knockouts | 0 |
Key Features
- Constructed from fibreglass reinforced thermoset polyester for high impact and corrosion resistance.
- Rated IP66 for dust-tight and protection against powerful water jets.
- Features IK08 rating for mechanical impact resistance.
- Includes chloroprene gasket for moisture and contaminant resistance.
- Suitable for harsh environments with temperature range from -40°C to +90°C.
- Weighs approximately 530g to minimize mounting strain.
- Unshielded design compliant to RoHS standards.
- Certified for maritime and UL hazardous areas.
Product Description
Rose IP66 Polyester Standard Series enclosure (Model: 20819080) is engineered from fibreglass reinforced thermoset polyester with graphite components, ensuring exceptional durability and long service life in demanding industrial environments.
The enclosure’s body material is resistant to impact, heat, corrosion, acids, oils, and fats, making it highly suited for applications including chemical processing, food and beverage manufacturing, and mechanical engineering.
It features an IP66 rating, providing complete dust-tight protection and resistance against high-pressure water jets, suited for outdoor and harsh environmental usage. The IK08 mechanical impact rating further enhances its reliability in rugged industrial settings.
The enclosure includes a chloroprene gasket that prevents moisture ingress and contamination, maintaining protection integrity. Its broad operational temperature range of -40°C to +90°C supports use in extreme ambient conditions.
Installation is flexible with options for DIN rail or mounting plate attachment to suit varied application needs. The light weight of approximately 530 grams ensures minimal load on mounting surfaces without compromising structural integrity.
Fibreglass reinforced thermoset polyester and graphite materials. IP66 ingress protection for dust and water. IK08 impact resistance rating for robust protection. Chloroprene gasket for sealing against moisture and contaminants.
RoHS compliance ensuring environmental safety. Certified for maritime and UL hazardous areas. Dimensions: 190mm (L) x 75mm (W) x 190mm (H). Unshielded design suitable for general purpose Electrical Enclosures. Grey lid color matching grey enclosure body.
This enclosure is ideal for industrial, automation, electrical, and construction applications requiring reliable, weather-resistant protection of sensitive electronics and terminals.
Explore the range of Rose enclosures and other electrical protection solutions at EnvMart to meet diverse industrial requirements.
