Rose Aluminium Standard Series Die Cast Aluminium Enclosure Grey Lid IP66 IK09 122mm x 122mm x 120mm 01121209

Rose 01121209 aluminium Die Cast enclosure is engineered to protect electronic and industrial control equipment with IP66 ingress protection and IK09 mechanical impact resistance. Its compact dimensions of 122mm length, 122mm height, and 120mm width make it suitable for integration in diverse industrial applications.

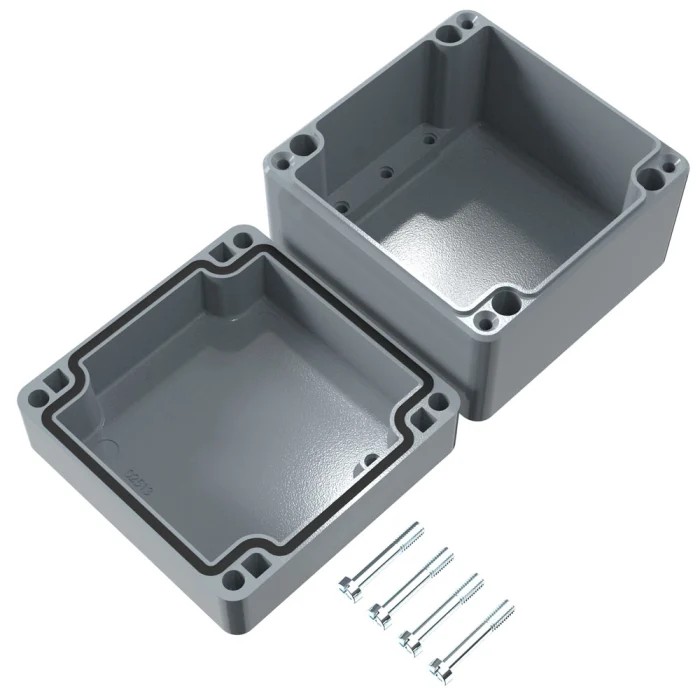

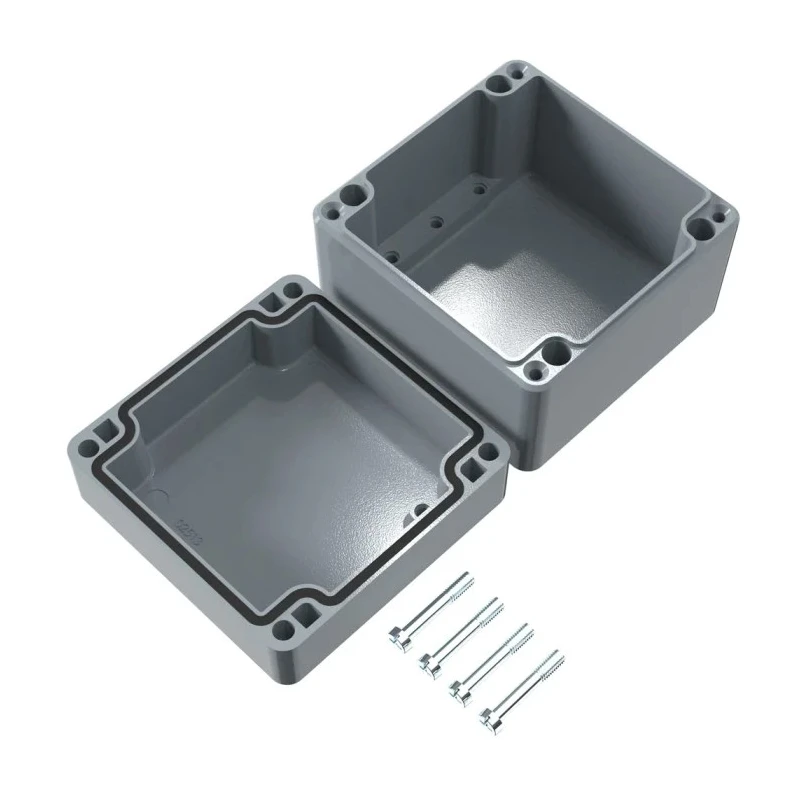

The body is constructed from die cast aluminium, offering excellent corrosion resistance and electromagnetic interference shielding to preserve sensitive electronics. The enclosure features a grey lid (RAL7001) secured by captive screws that prevent tampering and facilitate easy lid removal for maintenance tasks.

It includes a polyurethane gasket seal that allows operation in demanding environments ranging from -40°C to +90°C, ensuring dust tightness and protection from high-pressure water jets under the IP66 rating. The IK09 rating certifies the housing can withstand impacts up to 7 joules, safeguarding from mechanical abuse.

This enclosure meets UL 508 standards for industrial control equipment and conforms to DIN EN 1706 dimensional and mechanical tolerances for aluminium castings. It is unshielded externally but leverages its aluminium body to provide electromagnetic interference protection. The design includes a mounting plate to simplify internal installations and contains zero knockouts.

Applications include mechanical engineering, industrial automation, solar power battery housing, and food and beverage industry environments. Its reflective aluminium surface also offers UV protection against damage from direct sunlight, making it suitable for both indoor and outdoor deployment. Manufactured in Germany, it belongs to Rose's Aluminium Standard series, highly regarded for robustness and reliability.

The enclosure housing is made of robust die cast aluminium for corrosion resistance and EMI shielding. It features a polyurethane gasket seal rated for operating temperatures from -40°C to +90°C. Rated to IP66, it provides dust-tight protection and withstands powerful water jets.

IK09 impact rating ensures resistance to mechanical impacts up to 7 joules. The enclosure includes captive screws for secure lid fastening and a mounting plate for internal components. Designed for use in mechanical engineering, industrial automation, and food and beverage industries.

Protection against UV damage is provided by the reflective aluminium body, suitable for indoor and outdoor use. Complies with UL 508 industrial control equipment standards and DIN EN 1706 dimensional tolerances. It has no knockouts and comes unshielded except for electromagnetic interference protection due to aluminium body.

Produced in Germany and available in the Aluminium Standard series by Rose. Explore the EnvMart catalogue for high-quality electrical enclosures including the Aluminium Standard series by Rose, trusted for industrial and automation control applications.
