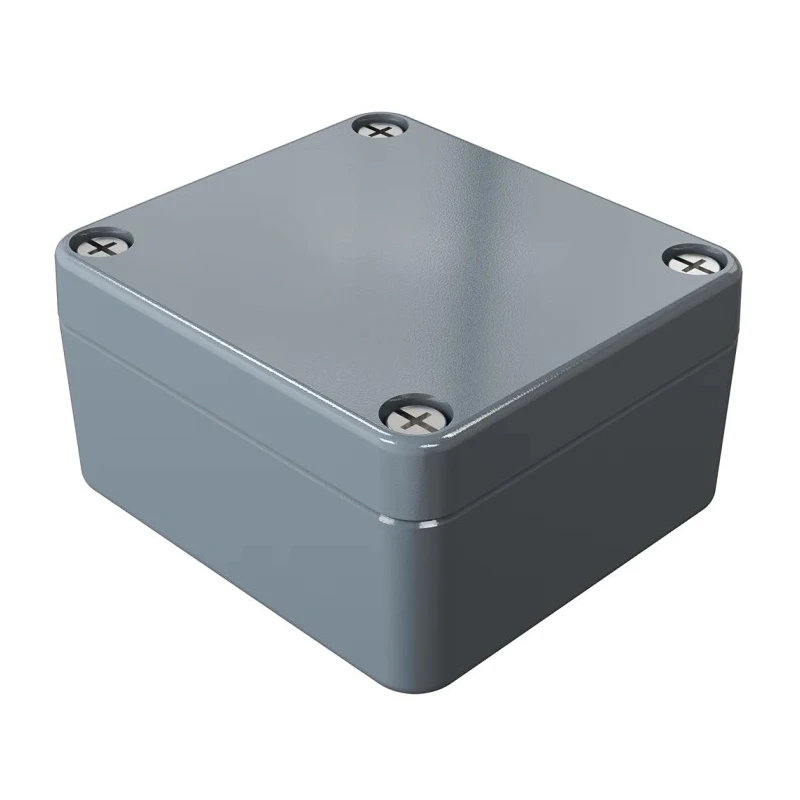

Rose Aluminium Standard Series Die Cast Aluminium Enclosure 64 mm Height, 58 mm Width, Grey Lid, IP66, IK09 01060603

The Rose 01060603 Aluminium Standard Series enclosure is a robust and compact solution, engineered specifically for protecting electrical components in challenging industrial environments. Crafted from die cast aluminium, this enclosure provides strong resistance to corrosion, impact, and moisture, while maintaining a lightweight construction that minimizes strain during installation.

Its 64 mm height, 58 mm width, and 64 mm length make it ideally sized for small devices, switches, and push buttons. The enclosure features a grey lid, complemented by a polyurethane gasket that forms a tight seal, safeguarding sensitive electronics from dust and water ingress as specified by its IP66 rating.

The IK09 mechanical impact resistance further ensures reliability, making it suitable for mechanical engineering, traffic control panels, industrial automation, and telecommunications projects. Designed for versatile mounting, the enclosure can be installed either on a DIN rail or a standard fixing plate, allowing seamless integration into various equipment racks and panels.

With compliance to UL508 safety standard, the Rose 01060603 enclosure supports international industrial requirements and expands the possibilities for global deployment. Its wide operating temperature range of -40°C to +90°C enables functionality in extreme climates, increasing survivability in outdoor and factory settings.

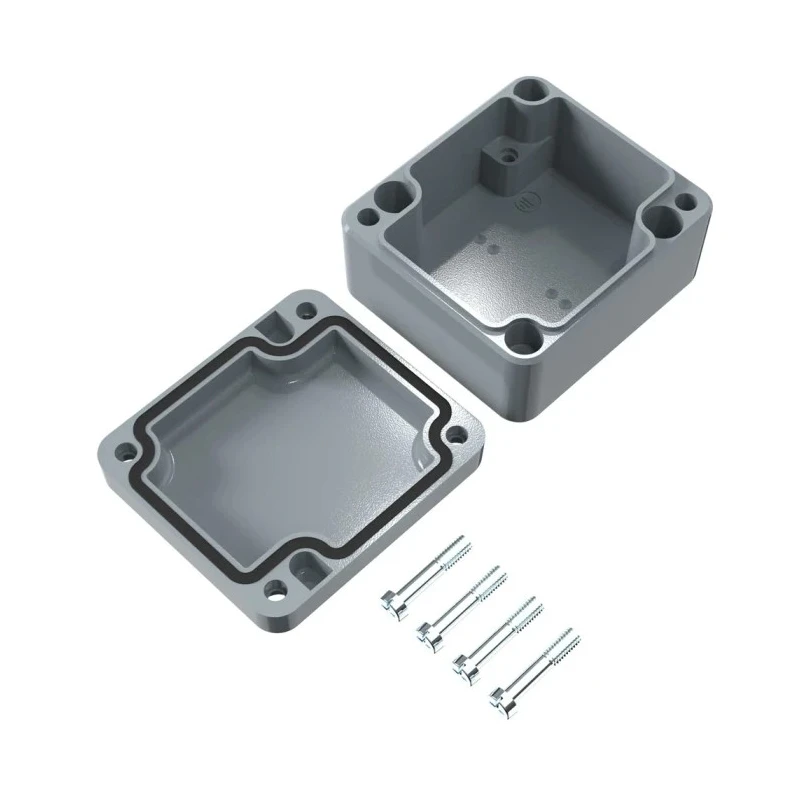

Each enclosure is supplied with stainless steel fixing screws, ensuring the lid is securely fastened and reducing the risk of tampering. The unshielded design allows for flexible use, and the enclosure is compatible with modern hazardous area certifications such as Maritime and UL for specialized industrial sectors.

This enclosure is purpose-built for applications including industrial automation, mechanical engineering, telecommunications, and traffic control - where equipment protection is paramount and space constraints demand compact, high-performance packaging.

Engineering-grade die cast aluminium body for durability and corrosion resistance. IP66 and IK09 ratings for protection and impact resistance. Polyurethane gasket and wide temperature tolerance ensure effective sealing and operational stability.

Installed via DIN rail or fixing plate for adaptability and ease of use. Supplied with stainless steel screws for secure assembly. UL508 safety certification for assured industrial compliance. Suitable for demanding environments, including outdoor installations.

Explore more Electrical Enclosures and Rose solutions in the General Purpose Enclosures category at EnvMart.
