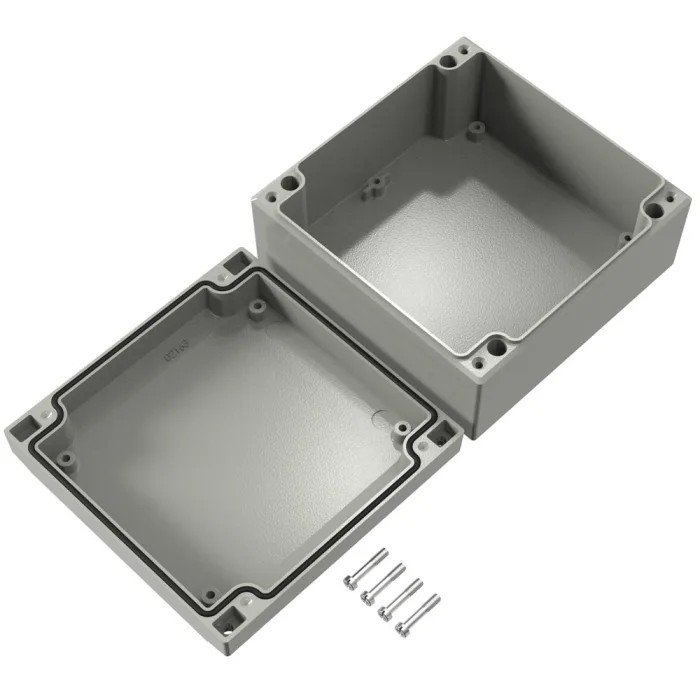

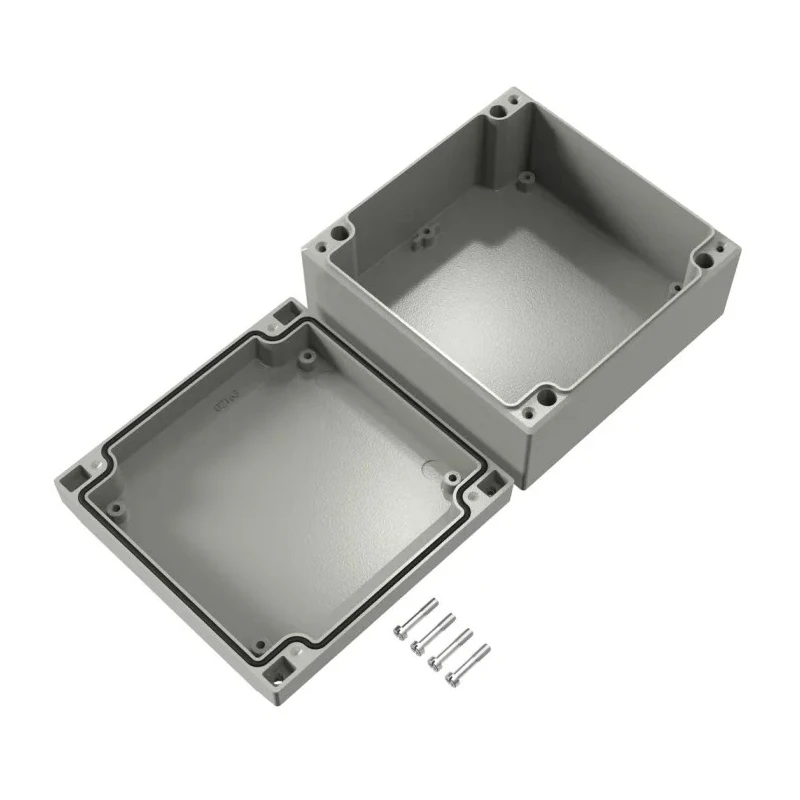

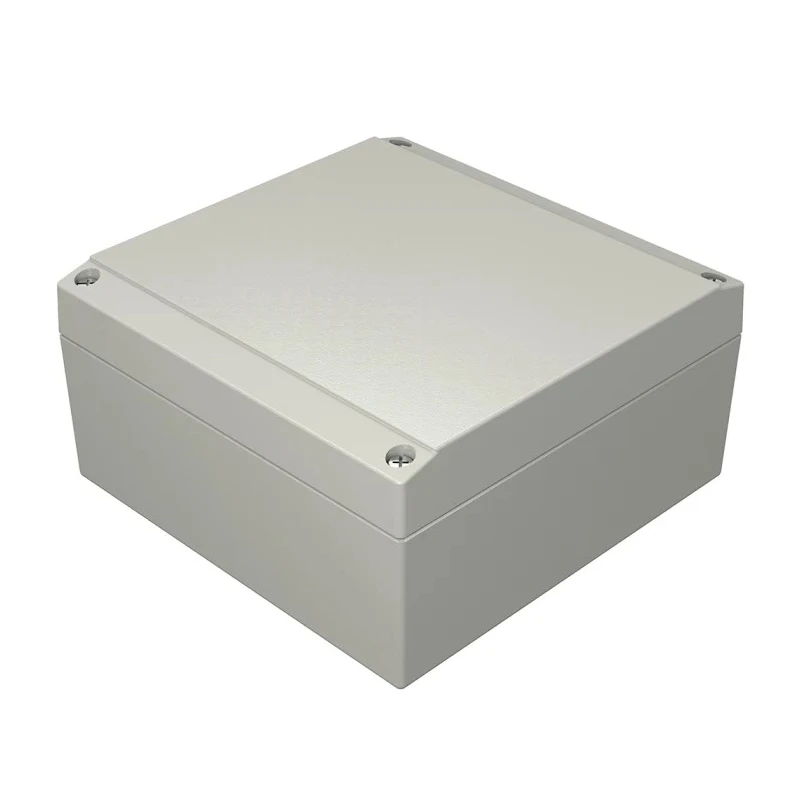

Rose Aluform Series Grey Lid Die Cast Aluminium Enclosure IP66 IK09 71 mm x 140 mm x 140 mm

Rose 041414070 Aluform Series Die Cast Aluminium Enclosure IP66 IK09 rated, measuring 71 mm depth, 140 mm height, and 140 mm width. Designed for electrical component protection, this enclosure combines durability with compact form factor suitable for demanding industrial and electronics environments.

The enclosure body is made from die cast aluminium known for high conductivity and mechanical strength, ideal for housing sensitive electrical devices while minimizing interference.

It features a grey lid with a polyurethane gasket to provide an airtight and water-resistant seal, achieving IP66 protection against dust and high-pressure water jets, making it suitable for outdoor and harsh industrial conditions.

With an IK09 impact rating, this enclosure ensures resistance against mechanical impacts and tampering, critical for security in industrial control panels and automation setups.

Certified to UL 508A standards and compliant with RoHS directives, it assures safety and regulatory compliance across various applications including IT server rooms, traffic control, and construction sites.

The enclosure weighs only 800 grams, facilitating easy handling and DIN rail mounting without excessive load on mounting structures.

Its wide operating temperature range from -60°C to +130°C enables operation in extreme environmental conditions, supporting applications in maritime and hazardous locations certified for UL and maritime standards.

Constructed from robust die cast aluminium for durability and conductivity. IP66 rating provides protection against dust ingress and powerful water jets. Equipped with a grey lid and polyurethane gasket ensuring an airtight electrical seal.

Complies with UL 508A industrial control panel standards and RoHS regulations. Compact size suitable for electronics and automation applications requiring protection in harsh environments. Lightweight at 800 g for easy installation and DIN rail mounting.

Certified for hazardous maritime and UL hazardous area applications. Wide operating temperature range from -60°C to +130°C for versatile usage.

This enclosure is ideal for industrial, laboratory, electronics, and automation use cases where protection from environmental hazards is essential. Explore our catalogue for additional related general purpose and electronic enclosures.
