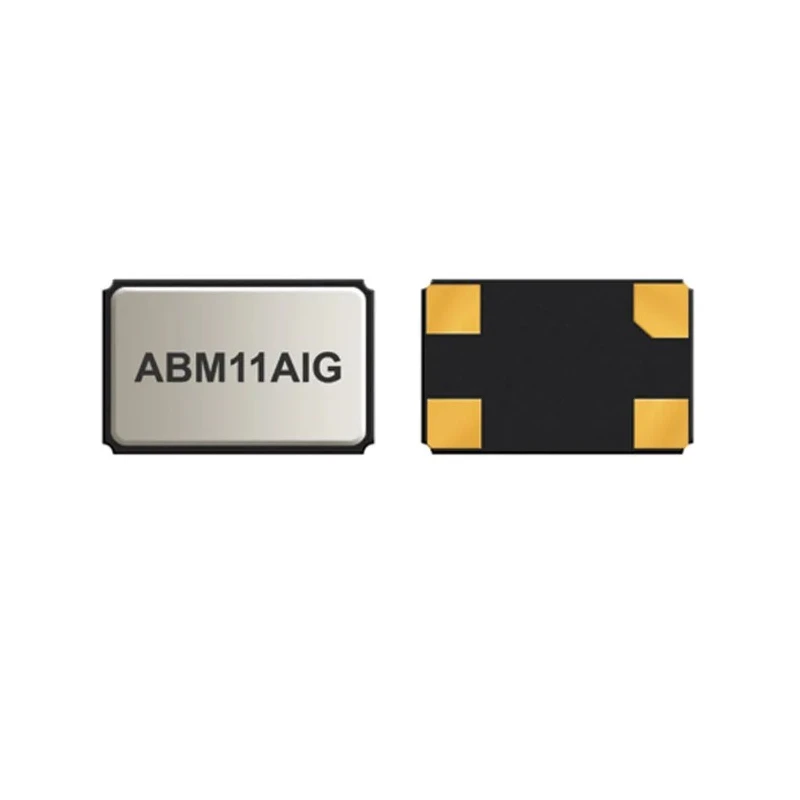

Abracon 20 MHz Surface Mount Ceramic Package Crystal with 4-Pin 0.55 mm Height 2 mm Length 1.6 mm ABM11AIG-20.000MHZ-4Z-T3

The Abracon ABM11AIG-20.000MHZ-4Z-T3 is a 20 MHz crystal unit designed for use in automotive and industrial electronics. Featuring a hermetically seam-sealed ceramic package, this surface mount device supports reliable frequency generation essential for infotainment systems, GPS navigation, Advanced Driver Assistance Systems (ADAS), and LiDAR applications. This miniature crystal comes in a robust 4-pin configuration with a compact footprint of 2 mm length, 1.6 mm width, and 0.55 mm height, suitable for space-constrained PCB designs.

This crystal oscillator is AEC-Q200 qualified, meeting stringent automotive standards, and is rated for a wide operating temperature range from -40°C to 125°C. It delivers a frequency tolerance of ±50 ppm and frequency stability of ±100 ppm, making it suitable for precise timing requirements in demanding industrial environments. With a series resistance of 100 ohms and a load capacitance of 10 pF, it ensures stable oscillation characteristics.

Manufactured in a TS16949 certified production line, the ABM11AIG series guarantees high quality and reliability, with PPAP documentation available upon request to support production validation. Moreover, its hermetically sealed ceramic package provides excellent environmental protection and durability. The product is RoHS and Pb free compliant, meeting modern environmental regulations.

This crystal unit is typically used in automotive electronic control units, industrial instrumentation, communication devices, and other precision timing applications. Its small form factor and compliance with automotive standards make it ideal for use in vehicle electronics and industrial automation systems.

Standard frequency of 20 MHz ensuring reliable oscillation. Surface mount type with tape & reel packaging for efficient assembly. Low series resistance of 100 ohms for improved signal quality. Operating temperature range from -40°C to 125°C suitable for automotive grade 1 compliance.

4-pin configuration in a compact ceramic package measuring 2 mm by 1.6 mm by 0.55 mm. Frequency tolerance ±50 ppm with frequency stability ±100 ppm for precise timing. Load capacitance rated at 10 pF optimized for typical crystal oscillator circuits.

AEC-Q200 qualified ensuring automotive industry reliability and quality standards. TS16949 production line certified and PPAP available on request for manufacturing consistency. RoHS and Pb free compliant supporting eco-friendly manufacturing processes.
