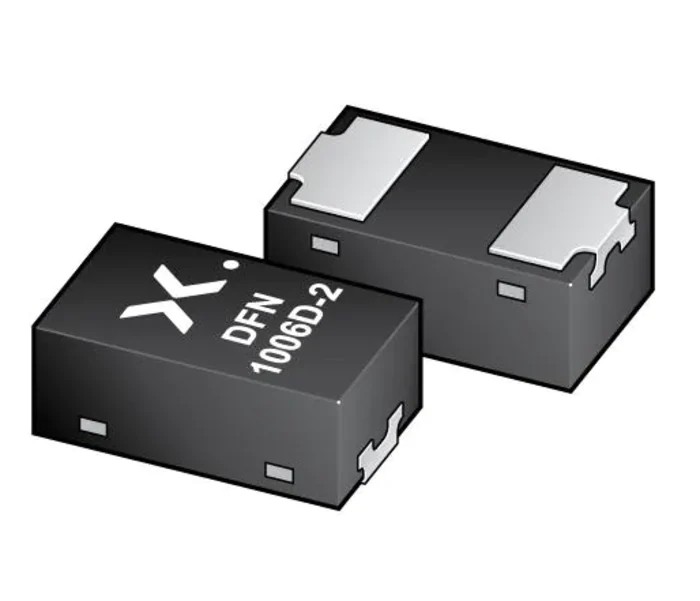

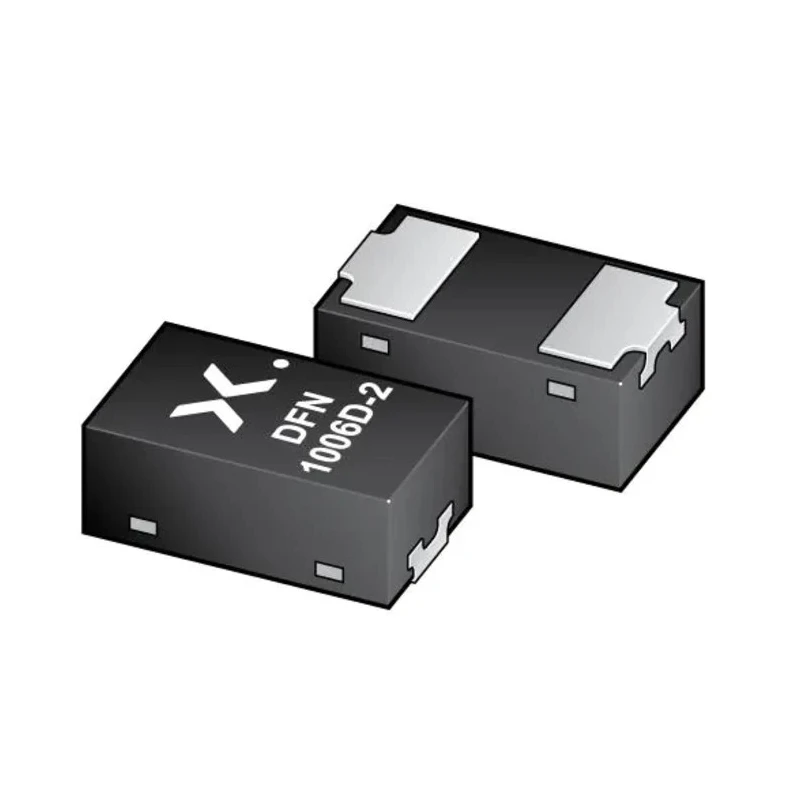

Nexperia Bi-Directional ESD Protection Diode, 2-Pin DFN1006BD-2, Max Reverse Voltage 24V, Max Peak Pulse PESD1ETH1G-LSYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | PESD1ETH1G-LSYL |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | PESD1ETH1G-LS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Interfaces | Ethernet |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Clamping Voltage VC | 3.3V |
| Direction Type | Bi-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 2.3A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Compact 2-pin DFN1006BD-2 surface-mount package offers space-saving installation.
- Maximum reverse stand-off voltage of 24 volts ensures robust protection against voltage spikes.
- High peak pulse current capability of 2.3 amperes for effective transient suppression.
- Low clamping voltage of 3.3 volts to safeguard sensitive electronics.
- Wide operating temperature range from -55°C to 150°C suitable for harsh environments.
- Low capacitance of less than 1.8 pF minimizes signal distortion in high-speed data lines.
- Complies with AEC-Q101 standard ensuring automotive quality and reliability.
- ESD protection certified up to 30 kV per IEC 61000-4-2 and ISO10605 standards.
Product Description
Nexperia PESD1ETH1G-LSYL Bi-Directional ESD Protection Diode in a miniature 2-pin DFN1006BD-2 surface-mount package provides robust electrostatic discharge protection for sensitive electronic circuits. Operating with a maximum reverse voltage of 24 V and peak pulse current rating of 2.3 A, this diode safeguards automotive and industrial communication networks, especially Ethernet lines compliant with IEEE 100BASE-T1 and 1000BASE-T1 standards.
The device excels with a low clamping voltage of 3.3 V and ultra-low capacitance below 1.8 pF, preserving signal integrity on high-speed data lines such as Low-Voltage Differential Signalling (LVDS). Its operational temperature range of -55°C to 150°C makes it suitable for harsh automotive environments. This component meets the AEC-Q101 qualification and withstands ESD events up to 30 kV as per IEC 61000-4-2 and ISO 10605 certifications.
Designed for surface mount technology, the diode features a compact footprint (1 mm length, 0.6 mm width, and 0.47 mm height) enabling integration in space-constrained PCB layouts. Though not specifically an automotive standard product, it is ideal for in-vehicle network protection and industrial applications requiring reliable transient voltage suppression.
Compact 2-pin DFN1006BD-2 package. Maximum reverse stand-off voltage: 24 V. Maximum peak pulse current: 2.3 A. Low clamping voltage: 3.3 V. Operating temperature range: -55°C to 150°C. Low capacitance below 1.8 pF. AEC-Q101 qualified.
ESD protection up to 30 kV according to IEC 61000-4-2 and ISO 10605. Optimized for 100BASE-T1 and 1000BASE-T1 Ethernet communication. Ideal for automotive and industrial in-vehicle network transient suppression.
This Nexperia diode is a high-performance solution for protecting automotive Ethernet lines and other sensitive electronic interfaces from damaging transient voltages. Explore the Semiconductor and ESD Protection Diode categories at EnvMart for complementary protection components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 24 volts, providing robust protection against voltage spikes.
It has a maximum peak pulse current rating of 2.3 amperes, which is effective for transient suppression.
The clamping voltage is low at 3.3 volts, which helps safeguard sensitive electronics from overvoltage conditions.
The operating temperature range is from -55°C to 150°C, making it suitable for harsh environments.
This model is housed in a compact 2-pin DFN1006BD-2 surface-mount package, allowing for space-saving installation.
Yes, it complies with the AEC-Q101 standard, ensuring automotive quality and reliability.
It is optimized for Ethernet interfaces, specifically for 100BASE-T1 and 1000BASE-T1 communication standards.
The diode features a low capacitance of less than 1.8 pF, which minimizes signal distortion in high-speed data lines.
The dimensions are 0.47 mm in height, 1 mm in length, and 0.6 mm in width.
The maximum reverse leakage current is specified at 100 nA, which helps maintain circuit integrity.
It is suitable for protecting sensitive electronic circuits in automotive and industrial communication networks, particularly Ethernet lines.
This model is a bi-directional ESD protection diode designed for effective transient voltage suppression.
