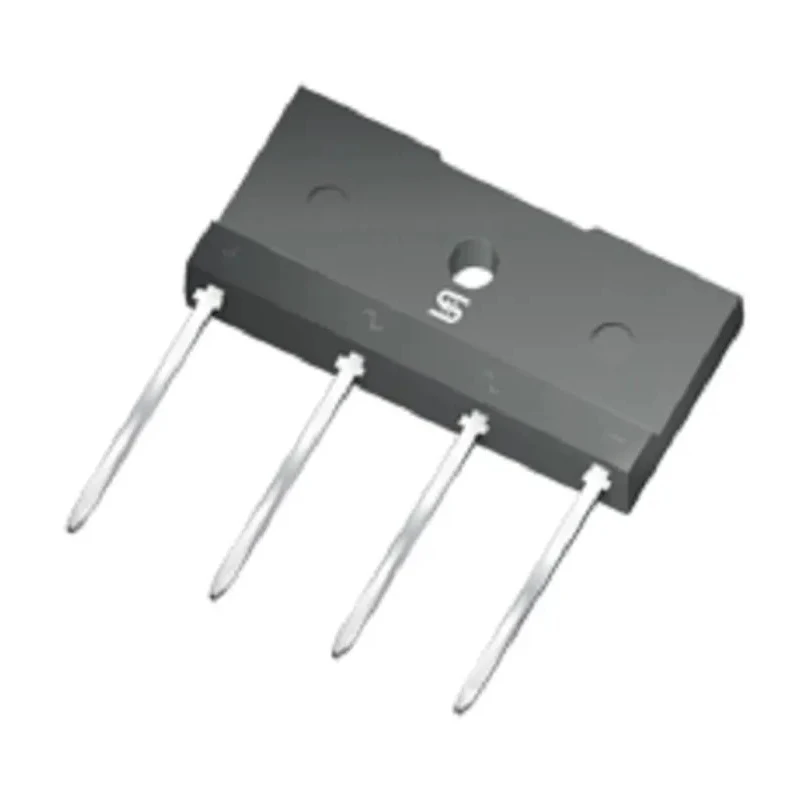

Taiwan Semiconductor Bridge Rectifier 600 V 144 A 4-Pin Quad Through Hole TS-6PL T10JA05G-K

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier 600 V 144 A 4-Pin Quad Through Hole TS-6PL T10JA05G-K

Name: Taiwan Semiconductor Bridge Rectifier 600 V 144 A 4-Pin Quad Through Hole TS-6PL T10JA05G-K
Brand: Taiwan Semiconductor
SKU: 178251
Price: 0.96 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	30mm
Length	29.3mm
Model	T10JA05G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	RoHS, UL, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	144A
Forward Current If	10A
Peak Forward Voltage Vf	1.1V

Key Features

Designed for use in switching mode power supplies, adapters, and lighting applications.
Features glass passivated chip junction for enhanced reliability.
Compact TS-6PL package with through hole mount type.
Operates reliably within a temperature range of -55°C to 150°C.
High surge current capability ensures durability under load conditions.
Compliance with RoHS, UL recognition, and IEC 61249-2-21 standards.
Halogen-free material according to IEC 61249-2-21 for environmental safety.
0μA peak reverse current and 1.1 V peak forward voltage for efficient performance.

Product Description

Taiwan Semiconductor T10JA05G-K Bridge Rectifier is a discrete semiconductor device engineered for high reliability and efficiency in electronics applications. It supports a peak reverse voltage of 600 V and a forward current rating of 10 A, with a peak non-repetitive forward surge current of 144 A, making it suitable for demanding power conversion scenarios.

This 4-pin quad bridge rectifier housed in a TS-6PL package utilizes a through hole mount, facilitating easy PCB integration. Its glass passivated junction enhances durability and temperature tolerance.

The device is ideal for industrial use cases including switching mode power supplies (SMPS), adapters, and lighting systems, where robust rectification is required.

Compliance with RoHS and certifications such as UL recognition ensure safety and environmental standards adherence. It is halogen-free according to IEC 61249-2-21 standards, making it an eco-conscious choice.

High surge current capability supports transient energy conditions. Wide operating temperature range from -55°C to 150°C allows performance in harsh industrial environments. The low peak forward voltage of 1.1 V improves energy efficiency.

Compact dimensions of 29.3 mm length and 30 mm height support space-constrained designs. Peak reverse current minimized to 0μA ensures minimal leakage losses. Through hole mounting facilitates durable mechanical connection and heat dissipation.

The quad configuration offers comprehensive bridge rectification in a single package.

The Taiwan Semiconductor T10JA05G-K is designed for electronics manufacturing, industrial equipment, power management, and testing labs requiring reliable bridge rectification components.
