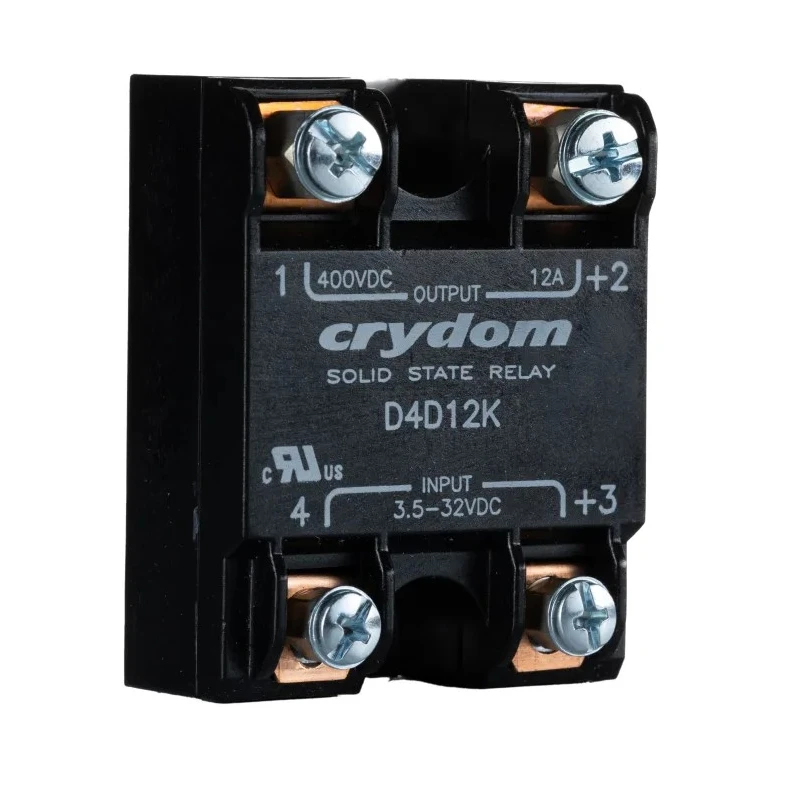

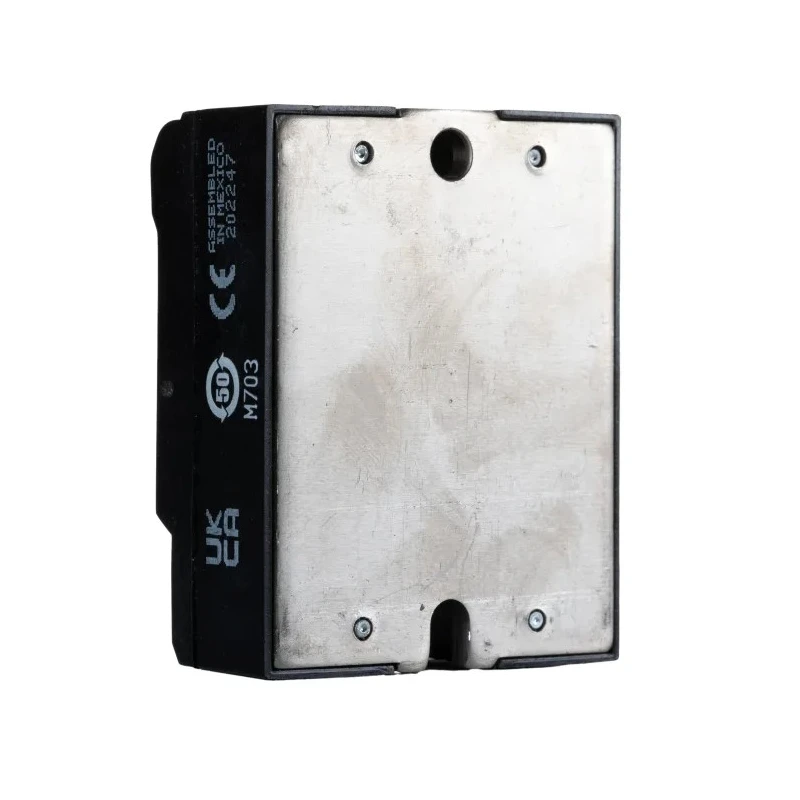

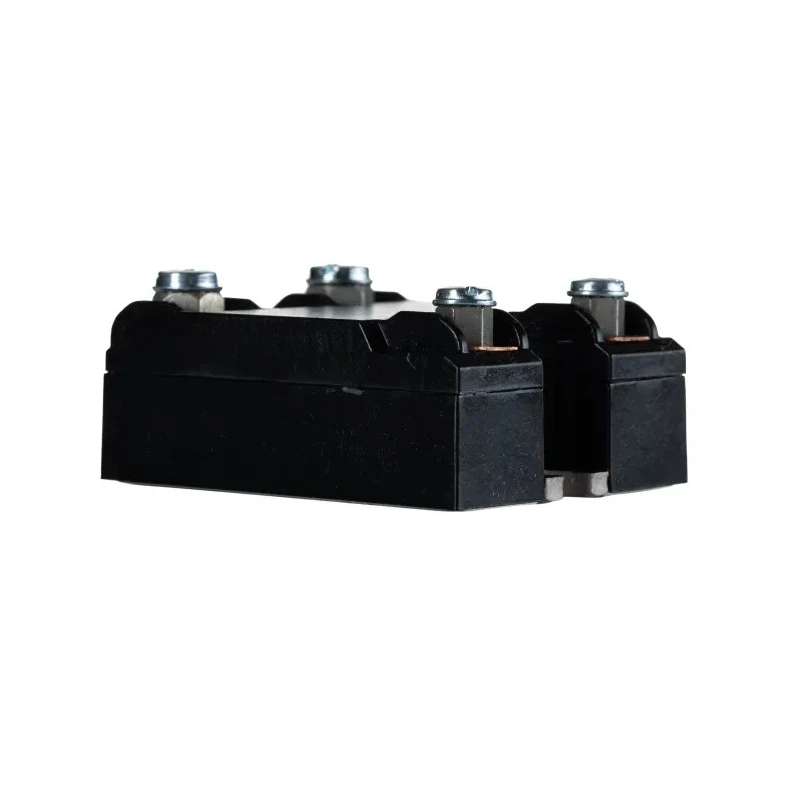

Crydom 1-DC Series Solid State Relay Panel Mount, 12 A DC Load, 400 V DC Load, 32 V DC Control D4D12K

The Crydom D4D12K 1-DC Series Solid State Relay is a high-performance device engineered for industrial and commercial applications requiring reliable switching of DC loads up to 12 A and load voltages up to 400 V DC. Intended for panel mounting, it features a robust screw terminal design ensuring secure and stable connections in control panels.

Utilizing advanced MOSFET output technology, this relay provides rapid switching with a 100 microsecond turn-on and turn-off time, enhancing the efficiency of automated systems such as lighting controls, medical devices, and other industrial equipment.

The relay is designed for demanding environments, featuring a wide operating temperature range from -40°C to +100°C, making it suitable for harsh industrial and outdoor settings. The housing is self-extinguishing and includes anti-rotation barriers to prevent loosening or damage due to heavy vibrations.

This product maintains very low off-state leakage current (0.3 mA) and minimal capacitance (8 pF), contributing to energy efficiency and system integrity. It complies with international standards including CE, VDE, and RoHS for electrical safety and environmental compliance.

With a compact form factor measuring 44.5 mm in length, width and 22.6 mm in height, and a lightweight design of 75.5 grams, the Crydom D4D12K relay integrates seamlessly into existing industrial and automation control systems.

This solid state relay operates efficiently with a control voltage range of 3.5 V to 32 V DC. Features MOSFET output technology providing fast and reliable switching. Panel mount with screw terminals for secure connections.

Wide operating temperature range from -40°C to +100°C. Low off-state leakage current and minimal capacitance. Compliance with CE, VDE, and RoHS standards. Lightweight and vibration resistant housing design. Fast switching times of 100 microseconds improve automation efficiency.

This solid state relay is ideal for use in industrial automation, electrical control panels, manufacturing machinery, medical equipment, and other applications requiring dependable DC load switching. EnvMart customers benefit from Crydom's reliable quality and cutting-edge technology in the 1-DC product series.
