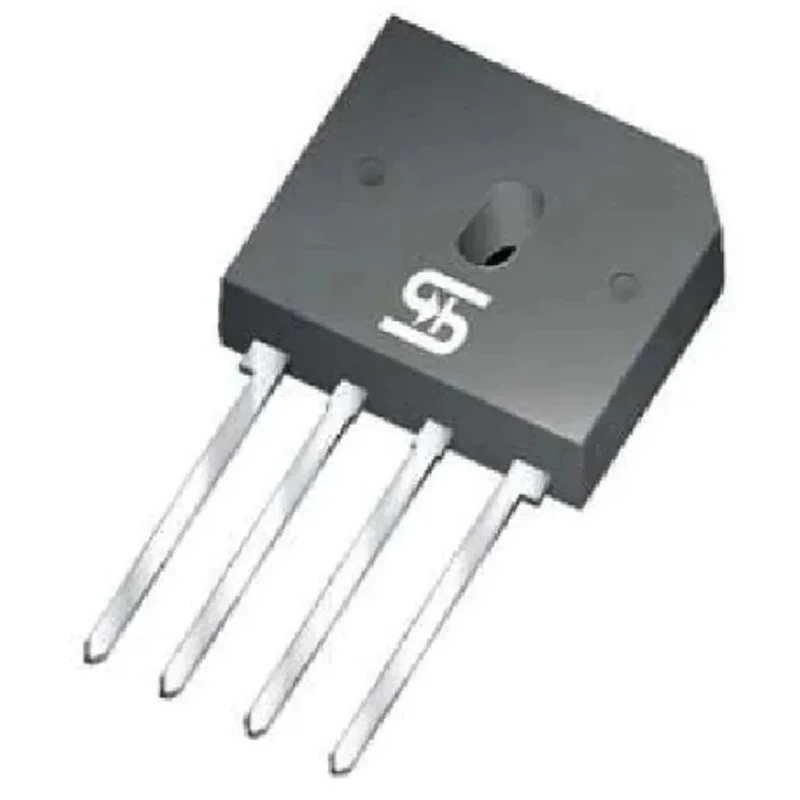

Taiwan Semiconductor Standard Bridge Rectifier 400 V 280 A 4-Pin Quad GBU404H

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Standard Bridge Rectifier 400 V 280 A 4-Pin Quad GBU404H

Name: Taiwan Semiconductor Standard Bridge Rectifier 400 V 280 A 4-Pin Quad GBU404H
Brand: Taiwan Semiconductor
SKU: 178248
Price: 0.74 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	22.3mm
Length	36.8mm
Model	GBU404H
Mount Type	Through Hole
Series	GBU401 - GBU407
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	UL File E-326243, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	280A
Forward Current If	4A
Peak Forward Voltage Vf	1.1V

Key Features

This bridge rectifier supports a maximum operating temperature of 150°C.
It features through-hole mount type and GBU package style for easy PCB installation.
The device is suitable for applications such as switching mode power supplies and adapters.
It offers high case dielectric strength of 1500 VRMS and is UL recognized.
The rectifier is RoHS compliant and halogen-free according to IEC 61249-2-2 standards.
Minimum operating temperature is -55°C, ensuring performance in harsh environments.
Peak forward voltage is 1.1 V with low peak reverse current of 500 μA.

Product Description

Taiwan Semiconductor GBU404H standard bridge rectifier is a high-performance semiconductor device designed for power rectification in industrial and electronic applications. Rated for a peak reverse repetitive voltage of 400 V and a peak surge current of 280 A, this 4-pin quad configuration rectifier is ideal for use in switching mode power supplies (SMPS), adapters, lighting applications, and other power electronic circuits.

Its through-hole mount and GBU package facilitate reliable PCB installation with robust mechanical stability. The device operates efficiently over a wide temperature range from -55°C to a maximum of 150°C, ensuring durability in demanding conditions.

This bridge rectifier boasts a high case dielectric strength of 1500 VRMS and features peak forward voltage of only 1.1 V, minimizing power losses. Peak reverse current is limited to 500 μA, enhancing overall efficiency.

The GBU404H is UL recognized (File # E-326243) and RoHS compliant, confirming its adherence to safety and environmental standards. Additionally, it is halogen-free, conforming to IEC 61249-2-2, making it suitable for environmentally conscious designs.

With its reliable performance and industrial-grade quality, the Taiwan Semiconductor GBU404H bridge rectifier finds extensive use in industrial electronics, laboratory equipment, consumer electronics, and HVAC systems requiring dependable rectification solutions.

This Bridge Rectifier supports a maximum operating temperature of 150°C. Highest surge current capability of 280 A peak allows tolerance to transient loads. Through-hole GBU package ensures easy PCB mounting and robust connections.

RoHS compliant and halogen-free design supports environmental regulations. UL recognized product with documented safety certification. Low forward voltage reduces energy loss and heat generation. Operates over a wide temperature range from -55°C to 150°C.
