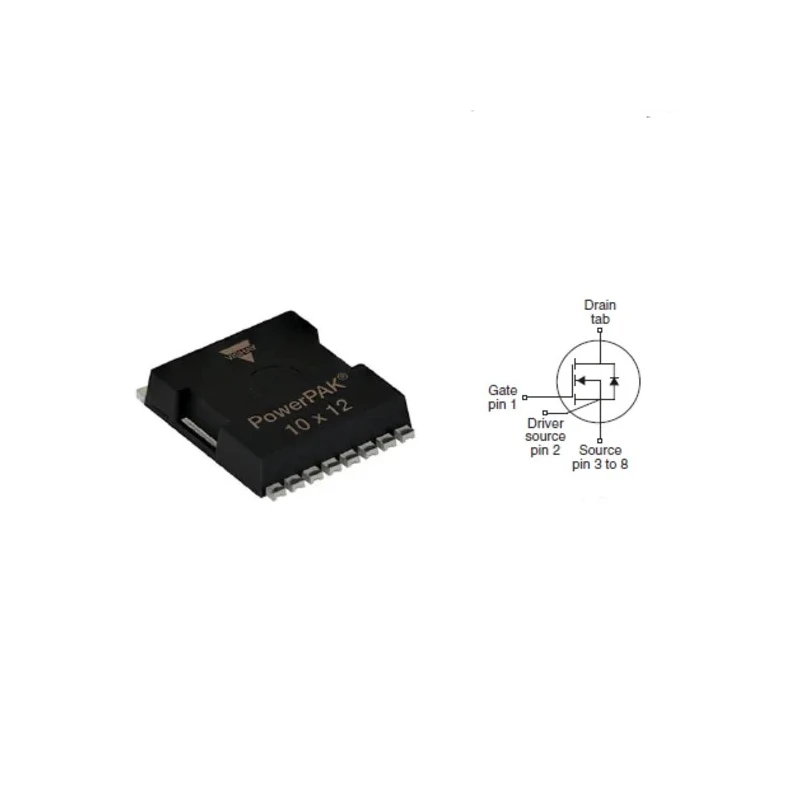

Vishay E Series N-Channel Power MOSFET 29 A 600 V 8-Pin PowerPAK 10 x 12 SIHK075N60E-T1-GE3

Vishay SIHK075N60E-T1-GE3 is an E Series N-Channel Power MOSFET designed for high-voltage power conversion and switching applications requiring robust thermal performance and compact footprint. Rated for a maximum continuous drain current of 29 amperes and a drain-source voltage of up to 600 volts, it ensures reliable operation in demanding industrial and electronic systems.

The device features an 8-pin PowerPAK 10 x 12 package that supports surface mounting on PCBs, providing both mechanical stability and efficient thermal dissipation. Its low maximum drain-source resistance of 0.08 ohms minimizes power loss in conduction mode, while its maximum power dissipation rating of 167 watts allows it to handle substantial thermal loads effectively.

This MOSFET has a typical gate charge of 41 nC at the maximum gate-source voltage of 30 V, allowing for efficient switching control with less power drive. It operates safely within a wide temperature range of -55°C to 150°C, making it suitable for applications in harsh and extreme environmental conditions.

Applications include industrial motor-drive inverters, power supplies for server and telecom equipment, DC-DC converters for renewable energy systems, high-voltage switch controllers in instrumentation, and LED lighting drivers demanding high-voltage switching capabilities.

The PowerPAK 10 x 12 package format aids in heat dissipation through the PCB, ensuring maintained performance and longevity. This product is fully RoHS compliant, aligning with environmental standards.

Designed for surface-mount applications requiring compact size and efficient thermal management. Maximum drain-source resistance of 0.08 Ohms reduces conduction losses. Supports power dissipation up to 167 W enabling effective heat handling.

Typical gate charge of 41 nC at Vgs ensures controlled switching performance. Maximum gate-source voltage tolerance of 30 V broadens gate-drive margin. Operates reliably over a wide temperature range from -55°C to 150°C for harsh environments.

Suitable for industrial motor-drive inverters and telecommunications power supplies. Well suited for DC-DC converters, renewable energy systems, and LED lighting drivers. RoHS compliant and packaged in a low-profile PowerPAK 10 x 12 format for optimal PCB mounting.
