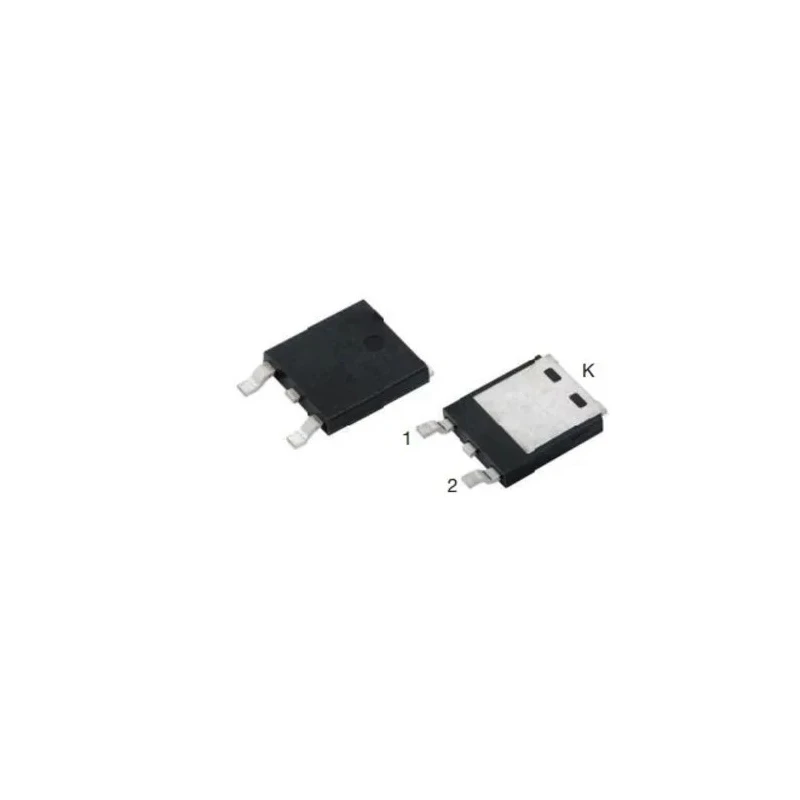

Vishay 100 V 20 A Surface Mount Rectifier & Schottky Diode TO-252 Package V20PW10CHM3/I

Free Delivery in India | Lowest Global Shipping Charges

Vishay 100 V 20 A Surface Mount Rectifier & Schottky Diode TO-252 Package V20PW10CHM3/I

Name: Vishay 100 V 20 A Surface Mount Rectifier & Schottky Diode TO-252 Package V20PW10CHM3/I
Brand: Vishay
SKU: 176263
Price: 1.13 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.4mm
Length	9.4mm
Model	V20PW10CHM3/I
Width	6.32mm
Mount Type	Surface
Series	V20PW10C
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS and AEC-Q101, JESD 201 Class 2 whisker test
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	2x Common Cathode Pair
Rectifier Type	Schottky
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	0.79V

Key Features

Features a maximum continuous forward current of 20 A for high power handling.
Provides peak reverse repetitive voltage of 100 V to protect circuits effectively.
Diode configuration is 2x common cathode pair for versatile use.
Constructed using Trench MOS Schottky technology for low forward voltage drop of 0.79 V.
Capable of a peak non-repetitive forward surge current of 150 A for transient robustness.
Operates within a temperature range from -40°C to 150°C suitable for automotive applications.
Complies with RoHS, AEC-Q101, and JESD 201 Class 2 whisker test standards.
Compact dimensions with length 9.4 mm, width 6.32 mm, and height 1.4 mm support efficient PCB layout.

Product Description

Vishay V20PW10CHM3/I is a high current density surface-mount rectifier and Schottky diode with a robust TO-252 package designed for demanding power electronics applications. This device supports a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 100 V, making it well suited for efficient power rectification and switching.

Utilizing Trench MOS Schottky technology, it achieves a low forward voltage drop of 0.79 V, resulting in high efficiency and reduced power losses. Its peak non-repetitive forward surge current rating of 150 A offers transient surge protection, enhancing reliability in challenging environments.

The diode supports operation over a wide temperature range from -40°C to 150°C, adhering to stringent automotive standards such as AEC-Q101, and meets RoHS and JESD 201 Class 2 whisker test requirements. Its compact dimensions (9.4 mm length, 6.32 mm width, and 1.4 mm height) facilitate surface mounting on compact PCB designs.

Typical applications include low voltage, high frequency DC/DC converters, freewheeling diodes for inductive load switching, and polarity protection circuits in automotive and industrial settings. The V20PW10CHM3/I is engineered for use in environments requiring high efficiency, reliability, and temperature resilience.

Maximum continuous forward current of 20 A enables handling of substantial power loads. Low forward voltage drop of 0.79 V reduces conduction losses significantly. High peak surge current rating of 150 A ensures robustness against transient events.

Wide operating temperature range from -40°C to 150°C supports automotive-grade reliability. Meets RoHS and AEC-Q101 quality and reliability standards. Compact TO-252 surface mount package allows for automated assembly and space-saving PCB layouts.

Explore the Vishay Schottky Diodes & Rectifiers range on EnvMart for comprehensive solutions in power management and circuit protection.
