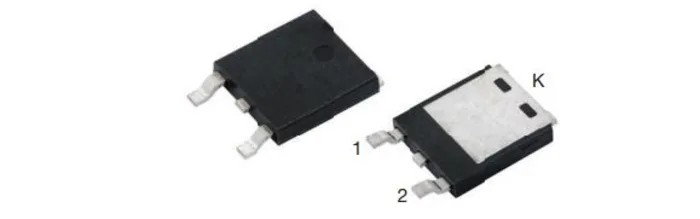

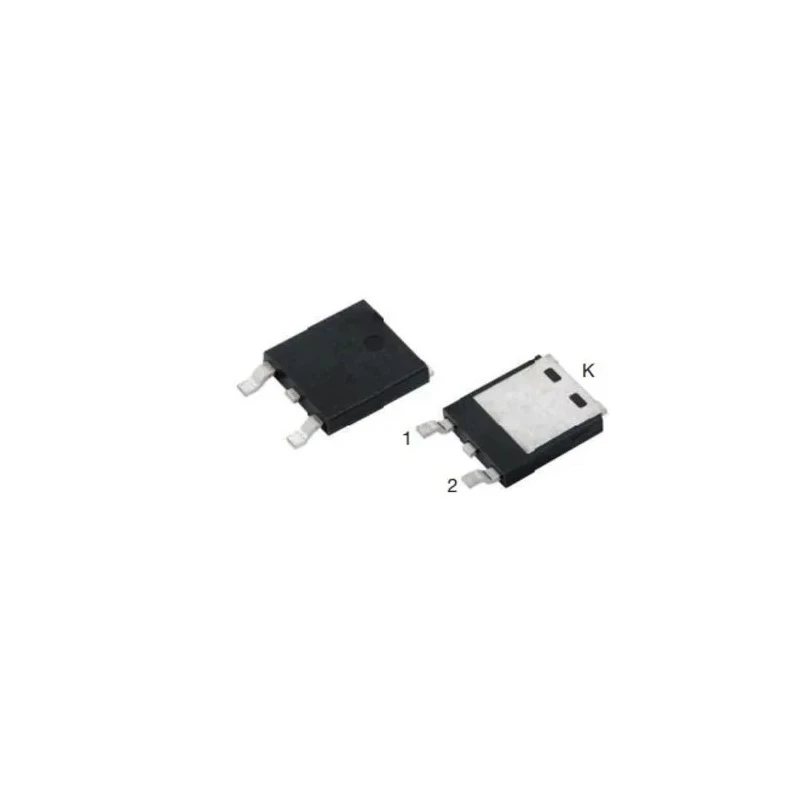

Vishay 100 V 20 A Rectifier & Schottky Diode Surface Mount TO-252 Package V20PW10CHM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.4mm |
| Length | 9.4mm |
| Model | V20PW10CHM3/I |
| Width | 6.32mm |
| Mount Type | Surface |
| Series | V20PW10C |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and AEC-Q101, JESD 201 Class 2 whisker test |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.79V |
Key Features
- The diode is configured as a 2x common cathode pair providing efficient rectification.
- Features trench MOS Schottky technology for low forward voltage drop and high efficiency.
- Supports a maximum continuous forward current of 20 A and peak reverse voltage of 100 V.
- Operates reliably within a temperature range of -40°C to 150°C.
- Compact package dimensions of 9.4 mm length, 6.32 mm width, and 1.4 mm height.
- Peak reverse current is 300 μA, ensuring minimal leakage.
- Meets automotive standard AEC-Q101 and passes JESD 201 Class 2 whisker testing.
- Designed for automated placement with MSL level 1 and 260°C peak reflow temperature.
Product Description
Vishay V20PW10CHM3/I Rectifier & Schottky Diode is a high current density, surface mount semiconductor device designed for efficient power conversion applications. It operates at a maximum continuous forward current of 20 A and a peak reverse voltage of 100 V. The device's TO-252 package provides a low-profile form factor with a height of only 1.4 mm, suitable for compact PCB layouts.
Utilizing trench MOS Schottky technology, the diode achieves a low forward voltage drop of 0.79 V, which results in reduced power losses and improved efficiency in circuits. This makes it ideal for use in high frequency DC/DC converters, freewheeling diode configurations, and polarity protection circuits in automotive and industrial sectors.
The device is qualified to AEC-Q101 standards, ensuring robustness and reliability for automotive systems. It also meets RoHS compliance and passes JESD 201 Class 2 whisker testing to prevent electrical shorts caused by whisker growth. The peak non-repetitive forward surge current rating of 150 A ensures excellent transient tolerance.
With operating temperature capability ranging from -40°C to 150°C, the Vishay rectifier diode is suitable for harsh environmental conditions, making it a strong candidate for industrial electronics and power management tasks. The compact dimensions (9.4 mm length by 6.32 mm width by 1.4 mm height) enable space savings on PCBs without sacrificing performance.
The diode's surface mount TO-252 package supports automated pick-and-place assembly with MSL level 1 compliance. Applications include power supply rectification, DC/DC conversion, freewheeling diode roles, and polarity protection in automotive and industrial electronics.
Explore more high-quality semiconductor components from Vishay and other leading manufacturers on EnvMart to meet your industrial and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay V20PW10CHM3/I diode is 20 A.
This Schottky diode has a peak reverse voltage rating of 100 V.
The dimensions of the TO-252 package are 9.4 mm in length, 6.32 mm in width, and 1.4 mm in height.
The operating temperature range for the Vishay V20PW10CHM3/I is from -40°C to 150°C.
The maximum forward voltage drop of this diode is 0.79 V.
The peak reverse current for the Vishay V20PW10CHM3/I is 300 μA.
The peak non-repetitive forward surge current rating is 150 A.
This diode meets the automotive standard AEC-Q101.
Yes, the Vishay V20PW10CHM3/I is RoHS compliant.
The diode is configured as a 2x common cathode pair.
This model uses a surface mount type for installation.
It passes JESD 201 Class 2 whisker testing.
