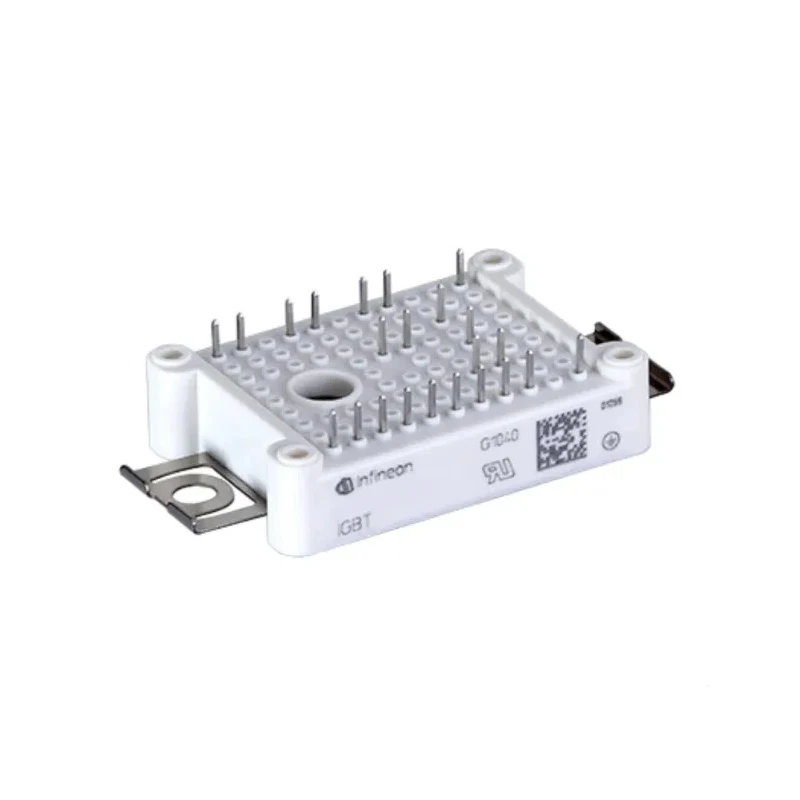

Infineon Bridge Rectifier 1200 V 415 A SiC Diode AG-EASY1B-1 Package DDB2U60N12W1RFB11BPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Length | 62.8mm |
| Model | DDB2U60N12W1RFB11BPSA1 |
| Width | 33.8mm |
| Mount Type | Chassis |
| Series | DDB2U60 |
| Configuration | SiC Diod |
| Maximum Operating Temperature | 150°C |
| Package Type | AG-EASY1B-1 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, 60749 and 60068, IEC24720 and IEC16022, IEC 60747, IEC8859-1 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 415A |
| Forward Current If | 60A |
| Peak Forward Voltage Vf | 1.85V |
Key Features
- Supports peak reverse repetitive voltage of 1200 V for high voltage applications.
- Maximum forward current rating of 60 A for robust current handling.
- Features a peak non-repetitive forward surge current of 415 A.
- Equipped with an integrated NTC temperature sensor for thermal management.
- Operates safely within temperatures from -40°C to 150°C.
- Compact dimensions with length 62.8 mm and width 33.8 mm.
- Package type AG-EASY1B-1 ensures rugged mounting with integrated clamps.
- Conforms to RoHS, IEC 60749, 60068, IEC24720, IEC16022, IEC 60747, and IEC8859-1 standards.
Product Description
Infineon DDB2U60N12W1RFB11BPSA1 Bridge Rectifier is a state-of-the-art SiC diode module designed for demanding industrial and power electronics applications. This chassis-mounted bridge rectifier supports a peak reverse repetitive voltage of 1200 V and a forward current of 60 A, making it suitable for high voltage and current conversion tasks.
The device features an integrated NTC temperature sensor and utilizes CoolSiC Schottky diode technology to deliver low forward voltage drop and high efficiency. Its rugged AG-EASY1B-1 package includes integral mounting clamps for secure and stable installation in industrial machinery.
With operational temperature range from -40°C to 150°C and a peak non-repetitive forward surge current rating of 415 A, this rectifier ensures reliable performance under thermal and electrical stresses. The compact physical dimensions of 62.8 mm length and 33.8 mm width optimize space usage on PCBs and power assemblies.
The module complies with various international standards including RoHS, IEC 60749, 60068, IEC24720, 16022, IEC 60747, and IEC8859-1, assuring quality and safety compliance for industrial use.
This product is ideal for applications in industrial power electronics, manufacturing equipment, power conversion units, automotive electronics (non-automotive standard), and other semiconductor discrete electronic circuits requiring high reliability and performance.
Supports peak reverse repetitive voltage of 1200 V for high voltage applications. Maximum forward current rating of 60 A for robust current handling. Features a peak non-repetitive forward surge current of 415 A. Equipped with an integrated NTC temperature sensor for thermal management.
Operates safely within temperatures from -40°C to 150°C. Compact dimensions with length 62.8 mm and width 33.8 mm. Package type AG-EASY1B-1 ensures rugged mounting with integrated clamps. Conforms to RoHS, IEC 60749, 60068, IEC24720, IEC16022, IEC 60747, and IEC8859-1 standards.
Designed for industrial, power electronics, and semiconductor discrete applications. Part of the DDB2U60 series with a chassis mount type and SiC diode configuration. Explore more cutting-edge semiconductor components, Bridge Rectifiers, and power electronics products in this category at EnvMart.
