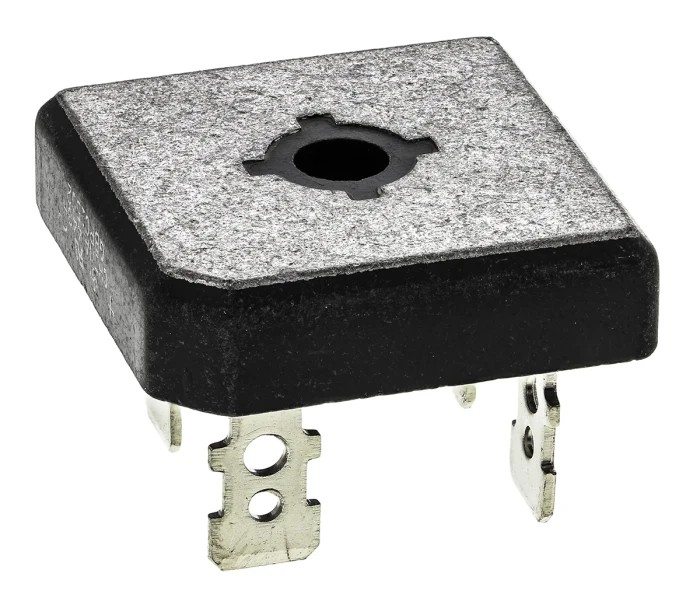

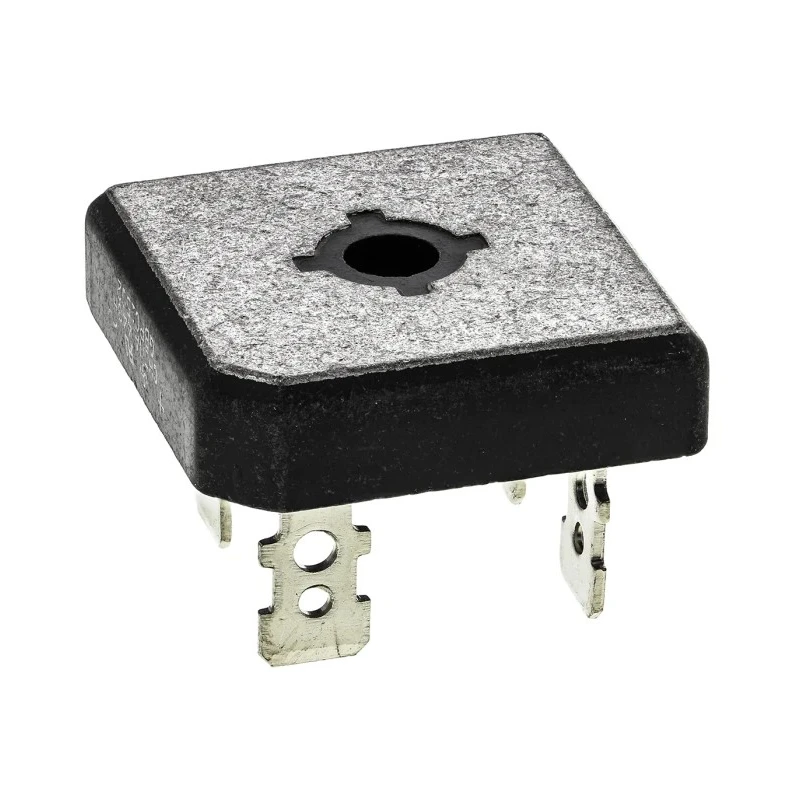

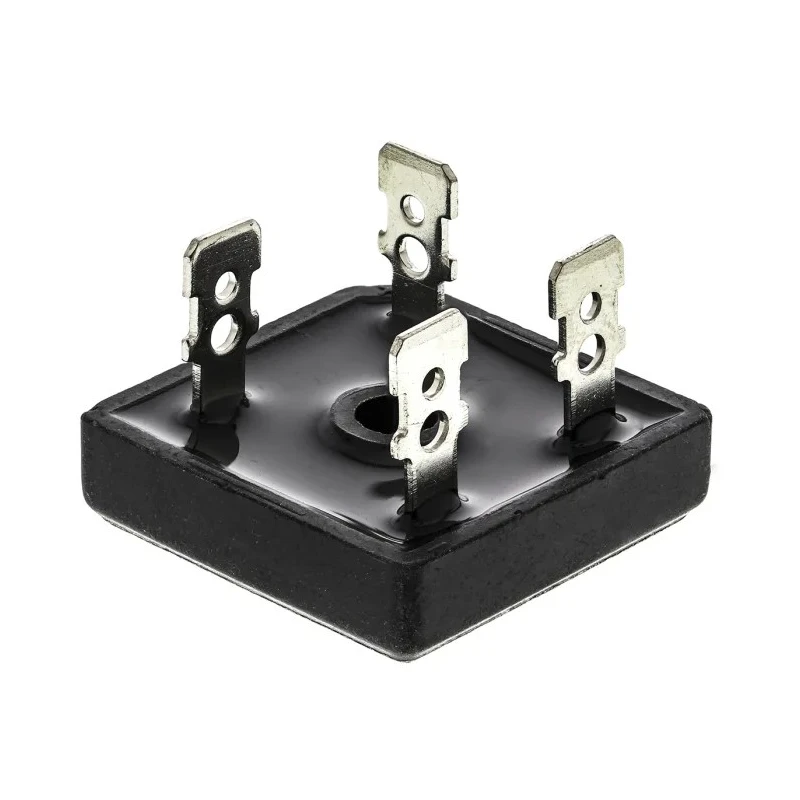

Vishay Bridge Rectifier, Screw Mount, 200 V Peak Reverse Voltage, 300 A Peak Non-Repetitive Surge Current GBPC1502-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier, Screw Mount, 200 V Peak Reverse Voltage, 300 A Peak Non-Repetitive Surge Current GBPC1502-E4/51

Name: Vishay Bridge Rectifier, Screw Mount, 200 V Peak Reverse Voltage, 300 A Peak Non-Repetitive Surge Current GBPC1502-E4/51
Brand: Vishay
SKU: 200792
Price: 4.8 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	GBPC1502-E4/51
Width	28.8mm
Mount Type	Screw
Series	GBPC15
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V
Universal, 3-way terminals	Push-on, wrap around or solder
Vishay Bridge Rectifier, 15A, 200V, 4-PinBrand	Vishay
Vishay Bridge Rectifier, 50 V 300 A, 4-Pin SingleBrand	Vishay

Key Features

This bridge rectifier supports peak non-repetitive forward surge current up to 300 A.
It has a compact package with 28.8 mm length, 28.8 mm width, and 7.62 mm height.
Operates reliably at temperatures from -55°C up to 150°C maximum.
Features glass passivated chip junction for long-term stable performance.
Universal 3-way terminals allow push-on, wrap around, or solder mounting.
Low thermal resistance design maximizes heat dissipation efficiency.
Ideal for full-wave rectification in industrial and electronic power supply applications.

Product Description

Vishay GBPC1502-E4/51 is a high-performance bridge rectifier designed for industrial and electronic applications requiring reliable AC to DC conversion. This screw mount device supports a peak reverse repetitive voltage of 200 V and a forward current rating of 15 A, ensuring stable and efficient power rectification.

The compact GBPC package measures 28.8 mm by 28.8 mm with a height of 7.62 mm, making it suitable for spaces with moderate size constraints. It withstands operating temperatures from -55°C to a maximum of 150°C, enabling use in a wide range of environmental conditions.

The device includes glass passivated chip junctions that enhance reliability and mitigate performance degradation over long operation periods. Its low thermal resistance construction facilitates efficient heat dissipation, critical for maintaining junction temperature and prolonging component lifespan.

This bridge rectifier accepts universal 3-way terminals, supporting push-on, wrap around, or solder installation methods for flexible and secure connectivity. It is capable of withstanding non-repetitive surge currents up to 300 A, making it resilient to transient overloads encountered in power supply and motor control circuits.

Typical industrial use cases include power supplies for manufacturing equipment, motor drives, laboratory instrumentation, HVAC systems, and other electronics requiring steady DC voltage from AC input sources.

This Bridge Rectifier supports peak non-repetitive forward surge current up to 300 A. Compact 4-pin single configuration with screw mount. Operates over a wide temperature range from -55°C to 150°C. Glass passivated chip junction ensures stable long-term operation.

Low thermal resistance aids in efficient heat dissipation. Universal 3-way terminals for varied mounting methods. Applicable in industrial, laboratory, and HVAC power rectification systems. Explore the Electronics & Electricals category at EnvMart for more semiconductor solutions by Vishay and other reputed manufacturers.
