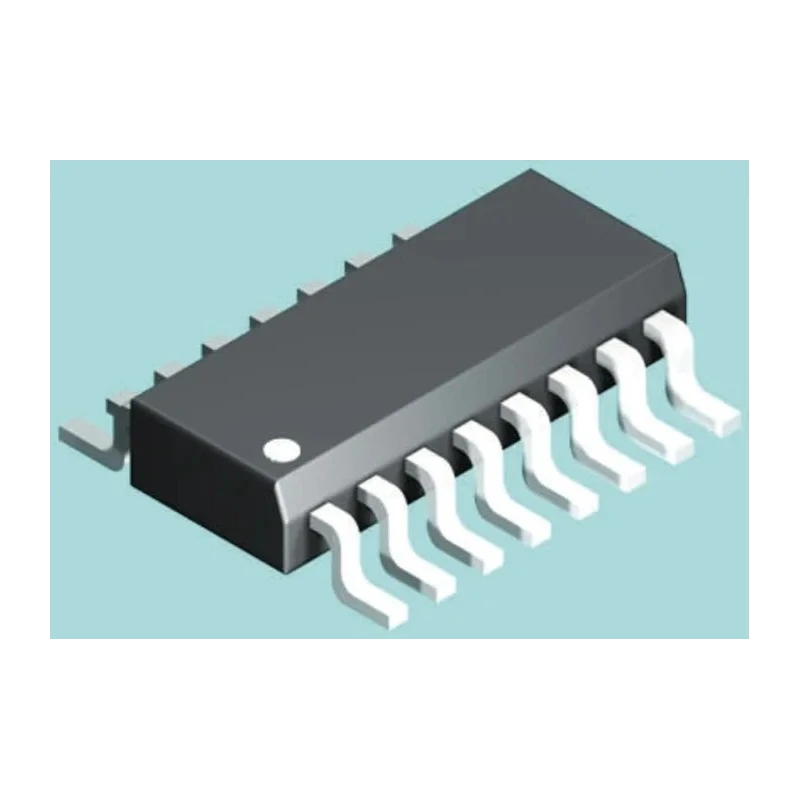

STMicroelectronics Seven Darlington Array NPN 500 mA 50 V HFE 1000 16-Pin SOIC ULQ2003D1013TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.6mm |
| Length | 10mm |
| Model | ULQ2003D1013TR |
| Mount Type | Surface |
| Series | ULQ2003 |
| Maximum Operating Temperature | 105°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC JESD97 |
| Pin Count | 16 |
| Maximum Continuous Collector Current Ic | 500mA |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Number of Elements per Chip | 7 |
| Minimum DC Current Gain hFE | 1000 |
| Transistor Polarity | NPN |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.6V |
| Automotive Standard | AEC-Q100 |
| STMicroelectronics ULQ2003D1013TR 7 Seven Darlington array NPN, 500 mA 50 V HFE | 1000, 16-Pin SOIC |
Key Features
- High current rating of 500 mA per output channel.
- Maximum collector-emitter voltage rating of 50 V.
- Minimum DC current gain (hFE) of 1000 ensuring efficient switching.
- Includes 7 Darlington transistor pairs for multiple switching applications.
- Surface mount SOIC package with 16 pins for compact PCB designs.
- Wide operating temperature range from -40°C to 105°C for reliable performance.
- Incorporates integral suppression diodes suitable for inductive load management.
- Automotive standard compliant with AEC-Q100 for quality assurance.
Product Description
STMicroelectronics ULQ2003D1013TR is a 7-element seven Darlington array NPN transistor designed for high voltage and high current switching applications, featuring a 16-Pin SOIC surface mount package. It is capable of handling a maximum continuous collector current of 500 mA and withstands collector-emitter voltages up to 50 V, making it well-suited for robust industrial and automotive electronics.
The device provides a high minimum DC current gain of 1000, which allows efficient control of high-current loads through low-level logic signals. Integral suppression diodes protect against voltage spikes from inductive loads, enhancing device reliability when switching motors, relays, and solenoids commonly found in industrial automation and automotive systems.
The package layout has inputs pinned opposite to outputs, simplifying board design and improving noise immunity. It supports a wide operating temperature range from -40°C to 105°C, ensuring dependable operation under harsh environmental conditions.
ULQ2003D1013TR complies with JEDEC JESD97 standards and the automotive grade AEC-Q100, ensuring quality and safety in critical applications. Its compatibility with standard TTL and CMOS logic levels makes it versatile for various control and driver circuits in industrial equipment, laboratory instrumentation, automotive electronics, and more.
This Darlington transistor array is ideal for use as a power driver in switching loads with high current requirements in industrial, automotive, HVAC, and manufacturing control applications.
High current rating of 500 mA per output channel. Maximum collector-emitter voltage rating of 50 V. Minimum DC current gain (hFE) of 1000 ensuring efficient switching. Includes 7 Darlington Transistor pairs for multiple switching applications.
Surface mount SOIC package with 16 pins for compact PCB designs. Wide operating temperature range from -40°C to 105°C for reliable performance. Incorporates integral suppression diodes suitable for inductive load management.
Automotive standard compliant with AEC-Q100 for quality assurance. Standard logic level interface compatible with TTL and CMOS. Explore more from the STMicroelectronics semiconductor range at EnvMart for your industrial and electronic component needs.
