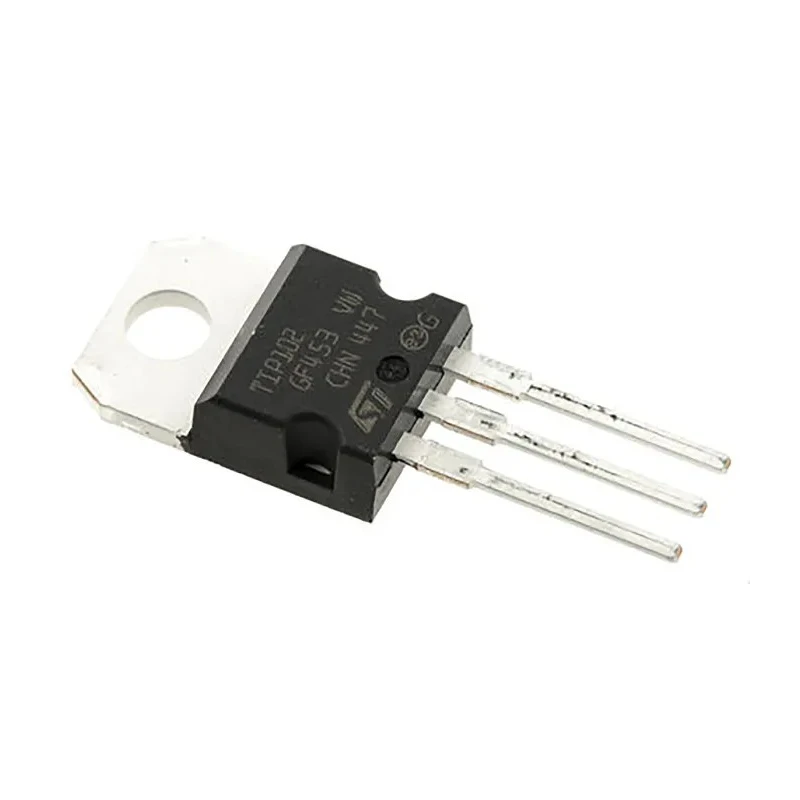

STMicroelectronics Darlington Transistor NPN TO-220 TIP102, 8A 100V HFE:200 80W, 3-Pin Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | TIP102 |
| Mount Type | Through Hole |
| Series | TIP102 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 8A |
| Maximum Collector Emitter Voltage Vceo | 100V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 200 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 100V |
| Maximum Collector Cut-off Current | 0.05mA |
| Maximum Power Dissipation Pd | 80W |
| STMicroelectronics TIP102 NPN Darlington Transistor, 8 A 100 V HFE | 200, 3-Pin TO-220Brand: STMicroelectronics |
Key Features
- High-power NPN Darlington transistor designed for electronic applications.
- Supports maximum collector current of 8A and collector-emitter voltage up to 100V.
- Operates with minimum DC current gain (hFE) of 200 for reliable amplification.
- Robust TO-220 package for through-hole mounting, with 3-pin configuration.
- Maximum power dissipation is 80W for efficient performance and heat handling.
- Wide operating temperature range from -65°C to 150°C, suitable for industrial environments.
- Maximum collector base voltage is 100V; emitter base voltage rated at 5V.
- Saturation voltage VceSAT of 2V and low collector cut-off current (0.05mA).
Product Description
The STMicroelectronics TIP102 Darlington Transistor is an NPN high-power device engineered for demanding electronic and industrial circuit applications. Designed with a robust TO-220 package and through-hole mounting, this transistor is ideal for integrating into PCB layouts where space and thermal management are critical.
This model supports a maximum collector current of 8A and collector-emitter voltage of up to 100V, making it well-suited for high-load switching and amplification tasks. Its minimum DC current gain (hFE) of 200 enables stable signal amplification across various application domains, including power electronics, motor control, power supplies, and high-current switching systems.
Featuring a 3-pin configuration, the TIP102 delivers convenient connections for collector, base, and emitter terminals, streamlining assembly and replacement processes. The maximum power dissipation of 80W ensures efficient heat dissipation during prolonged operation, while the wide operating temperature range from -65°C to 150°C allows for use in both indoor and harsh environmental conditions.
With a collector base voltage and emitter base voltage rated at 100V and 5V respectively, the transistor accommodates broad input conditions while maintaining safety margins. Its low collector cut-off current of 0.05mA and collector-emitter saturation voltage VceSAT of 2V further enhance operational reliability and efficiency.
The STMicroelectronics TIP102 belongs to the TIP102 series and meets the requirements for general-purpose, Darlington, power, and high-voltage transistor solutions. It is a suitable component for engineers' toolkit in industrial automation, laboratory projects, commercial electronics, and advanced manufacturing systems.
Explore more Darlington Transistor options and related electronic components from STMicroelectronics in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TIP102 transistor supports a maximum collector current of 8A.
It has a collector-emitter voltage rating of up to 100V.
The minimum DC current gain (hFE) is 200, which ensures reliable amplification.
The maximum power dissipation for the TIP102 is 80W, allowing for efficient heat handling during operation.
This model operates within a temperature range of -65°C to 150°C, making it suitable for various environments.
The TIP102 is housed in a TO-220 package, designed for through-hole mounting.
It features a 3-pin configuration for easy connections.
The saturation voltage (VceSAT) for the TIP102 is 2V.
The maximum emitter-base voltage (VEBO) is rated at 5V.
The TIP102 has a maximum collector cut-off current of 0.05mA.
The TIP102 is an NPN Darlington transistor, suitable for high-power applications.
The TIP102 is manufactured in India.
