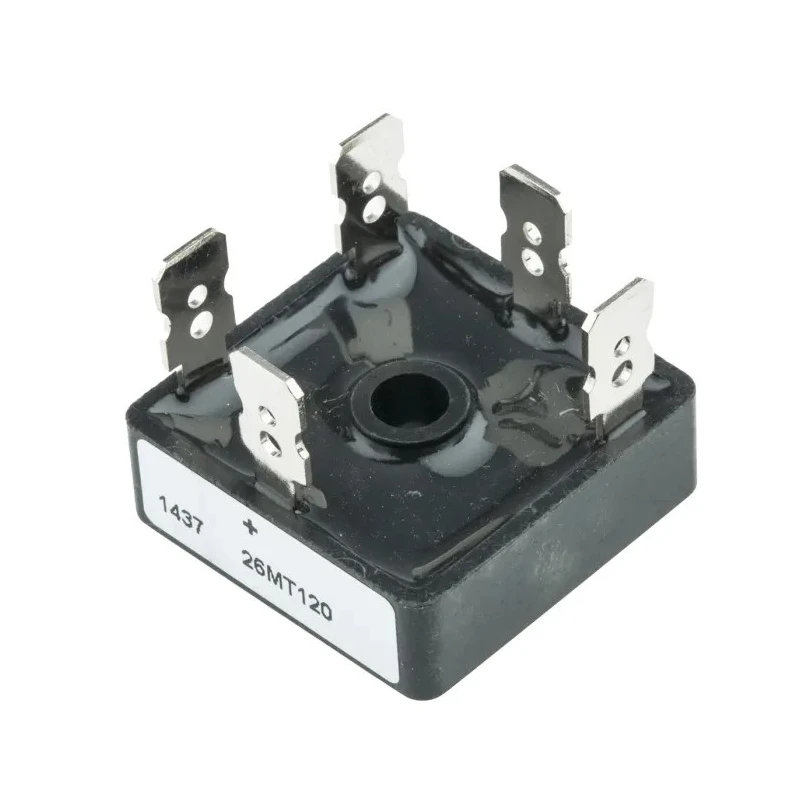

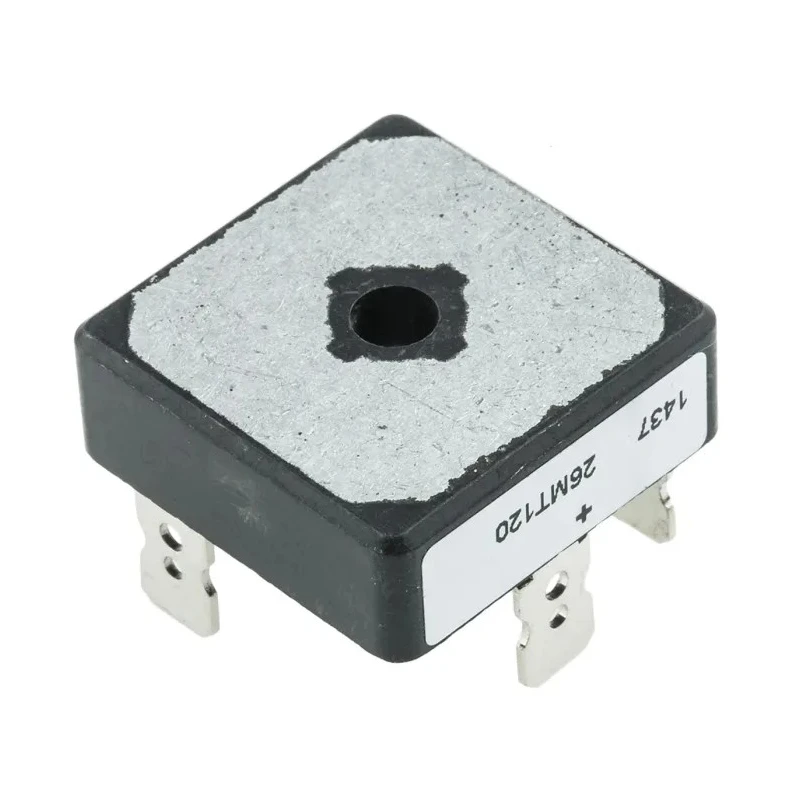

Vishay Bridge Rectifier, 1200 V Peak Reverse Repetitive Voltage, 375 A Peak Surge Current, 5-Pin Single VS-26MT120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-26MT120 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-26MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 375A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.26V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 1200 V 500 A, 5-Pin SingleBrand | Vishay |
Key Features
- Supports peak reverse repetitive voltage of 1200 volts.
- Capable of handling peak non-repetitive forward surge current of 375 amperes.
- Features a 5-pin single configuration with through-hole mount type.
- Operates reliably between -55°C to 150°C maximum operating temperature.
- Compact dimensions of 28.5 mm length, 28.5 mm width, and 10 mm height enable space-efficient PCB integration.
- Offers a peak forward voltage of 1.26 volts for efficient rectification.
- Includes push-on, wrap around, or solderable universal 3-way terminals for versatile connectivity.
- Package type is D-63 with high thermal conductivity and electrically insulated case.
Product Description
Vishay VS-26MT120 Bridge Rectifier is a durable, industrial-grade 3-phase diode assembly designed to convert alternating current (AC) inputs into direct current (DC) outputs via full-wave rectification. This discrete semiconductor component features a 5-pin single configuration and through-hole mount type, optimized for high thermal conductivity and electrically insulated casing. It supports a peak reverse repetitive voltage (Vrrm) of 1200 volts and a peak non-repetitive forward surge current (Ifsm) of 375 amperes, suitable for demanding power electronics applications.
With a maximum operating temperature of 150°C and minimum of -55°C, this rectifier withstands harsh environmental conditions typically encountered in industrial, manufacturing, and HVAC systems. Measuring 28.5 mm in length and width, and 10 mm in height, the compact D-63 package provides an excellent power-to-volume ratio for efficient PCB layouts.
The device integrates universal 3-way terminals allowing push-on, wrap around, or solder connections, enhancing installation flexibility. The forward voltage drop is 1.26 volts and the peak forward current at 25°C is specified at 25 amperes. Peak reverse current remains low at 200 microamperes, indicating efficient performance and minimal leakage.
Designed for reliable use in industrial, electronics manufacturing, and power conversion applications, the VS-26MT Series bridge rectifiers offer superior reliability and performance. The product meets UL E300359 certification requirements, ensuring industry compliance and quality assurance.
Supports peak reverse voltage up to 1200 V for heavy-duty applications. Handles surge currents up to 375 A for transient protection. Operates efficiently over a wide temperature range from -55°C to 150°C. Compact D-63 package enhances space efficiency on circuit boards.
Universal 3-way terminals enable versatile connection methods. Excellent power-to-volume ratio suited for industrial settings. Electrically insulated, high thermal conductivity design for enhanced safety. Reliable performance certified by UL E300359 standard.
For professionals seeking dependable bridge rectifiers for electronics and power management, the Vishay VS-26MT120 delivers robust performance and versatile application support. Explore more quality Vishay semiconductors and Bridge Rectifiers on EnvMart for your industrial and electronic component needs.
