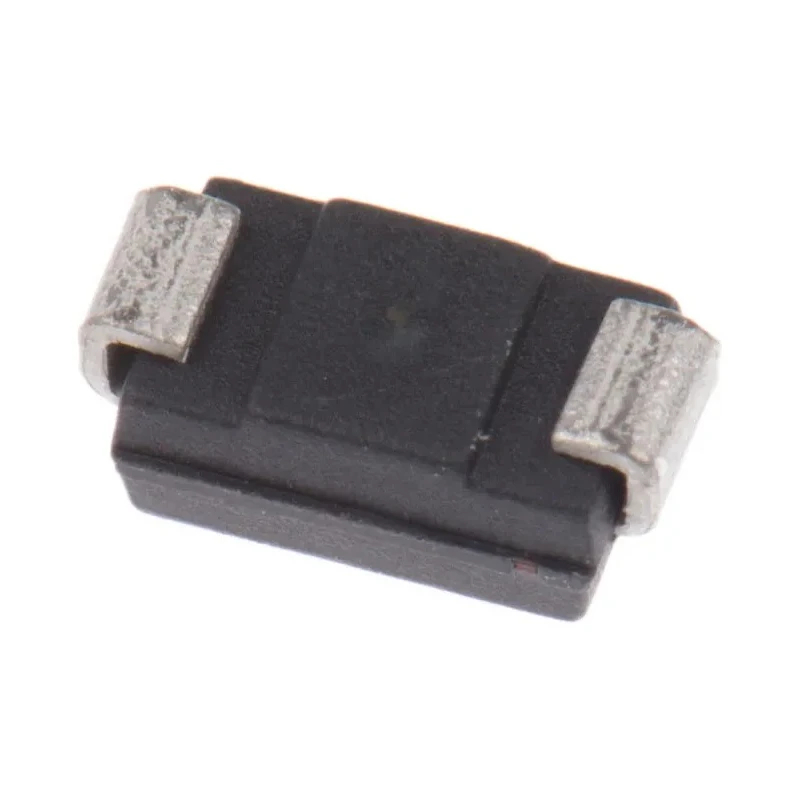

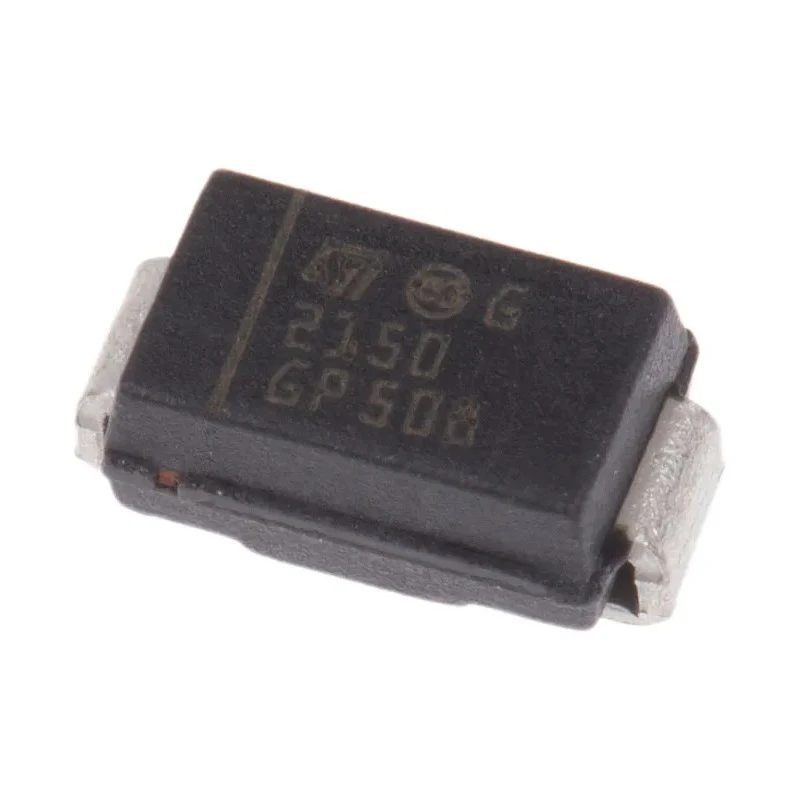

STMicroelectronics Schottky Diode 150 V 2 A Surface Mount 2-Pin DO-214AC STPS2150A

Name: STMicroelectronics Schottky Diode 150 V 2 A Surface Mount 2-Pin DO-214AC STPS2150A
Brand: STMicroelectronics
SKU: 150111
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.03mm
Length	4.6mm
Model	STPS2150A
Width	2.95mm
Mount Type	Surface
Series	STPS2150
Maximum Operating Temperature	175°C
Package Type	DO-214AC
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	150V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1.5μA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.62V

Key Features

This surface mount diode features a DO-214AC package type.
It has a maximum forward voltage of 0.62 V ensuring efficient rectification.
The diode is rated for a peak non-repetitive forward surge current of 75 A.
Operating temperature ranges from -65°C to 175°C for versatile industrial applications.
It has a compact dimension with length 4.6 mm, width 2.95 mm, and height 2.03 mm.
The device has a low peak reverse current of 1.5 µA ensuring minimal leakage.
This diode is designed for single diode configuration within power electronic circuits.
It complies with no specific standards or automotive approvals, suitable for general electronics.

Product Description

STMicroelectronics STPS2150A Schottky Diode 150 V 2 A is a robust surface mount diode tailored for power electronics requiring efficient rectification and fast switching. Its DO-214AC package allows compact surface mounting, simplifying PCB layouts and enabling high-density board assemblies.

The diode delivers maximum continuous forward current of 2 A with a peak reverse repetitive voltage rating of 150 V, making it suitable for industrial, commercial, and laboratory electronics applications.

With a low forward voltage of 0.62 V and peak surge current capacity of 75 A, this device efficiently handles transient surges and reduces power losses. Operating across a wide temperature range from -65°C to 175°C, it is ideal for harsh environmental conditions common in automated machinery and power supply systems.

The compact dimensions (4.6 mm length, 2.95 mm width, 2.03 mm height) and 2-pin single diode configuration provide flexibility in integration within various circuit designs.

While it does not carry automotive certification or specific approvals, the STPS2150A is trusted for reliable performance in semiconductor discrete components for power and control systems.

This diode supports fast switching to improve circuit efficiency and reduce electromagnetic interference. Its low leakage current ensures minimal power dissipation during operation. The device is RoHS compliant, supporting environmental standards.

Supplied on reels ready for automated insertion, enhancing production efficiency. Ideal for use in converters, power supplies, rectifiers, and freewheeling diode applications. Explore the Electronics & Electricals category for more semiconductor solutions and power rectifiers at EnvMart.
