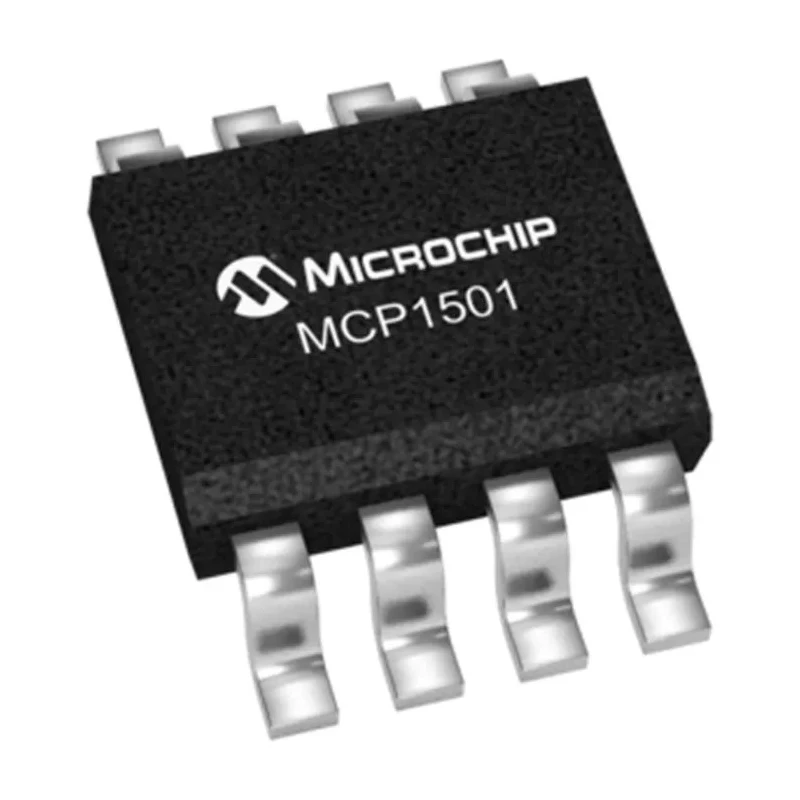

Microchip Fixed Series Voltage Reference ±0.08% Initial Accuracy Surface Mount SOIC 8-Pin MCP1501-12E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Operating Temperature Range | -40 to +125°C |
| Length | 4.9mm |
| Model | MCP1501-12E/SN |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MCP1501 |
| Temperature Coefficient | 10 ppm/°C |
| Output Current | 30mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 70 ppm/mA (Source), 40 ppm/mA (Sink) |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 50 ppm/V |
| Minimum Input Voltage | 1.65V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Reference Voltage | 1.25V |
| Initial Accuracy | ±0.08 % |
| Maximum Temperature Coefficient | 50 ppm/°C from -40°C to +125°C |
| Low Typical Operating Current | 140 μA |
Key Features
- Features a 1.25V reference voltage for stable output.
- Surface mount 8-pin SOIC package suitable for PCB integration.
- Low temperature coefficient of 10 ppm/°C ensures minimal drift.
- Operates over a temperature range from -40°C to +125°C.
- Supports output currents up to 30mA for versatile applications.
- Low typical operating current of 140 μA to conserve power.
- Line regulation of 50 ppm/V and load regulation of 40 ppm/mA for accuracy.
- Meets automotive AEC-Q100 standards for reliability.
Product Description
Microchip MCP1501-12E/SN is a high-precision, fixed series voltage reference designed for industrial and automotive power management applications. With an initial accuracy of ±0.08%, this device provides a stable 1.25V output voltage in a compact 8-pin SOIC surface mount package.
The device utilizes chopper-stabilized amplifiers to minimize voltage drift, resulting in a low temperature coefficient of 10 ppm/°C and output noise under 0.1 μV peak-to-peak (0.1 Hz to 10 Hz). It is capable of sourcing and sinking currents up to 30mA, making it suitable for a variety of precision voltage reference needs.
Operating temperature ranges from -40°C to +125°C with robust line regulation (50 ppm/V) and load regulation characteristics (70 ppm/mA source, 40 ppm/mA sink), ensuring reliable performance under varying electrical loads and environments.
The MCP1501-12E/SN meets stringent automotive standard AEC-Q100, confirming its suitability for rigorous automotive and industrial use cases including power management ICs, instrumentation, and control systems.
Its compact dimensions (length: 4.9mm, height: 1.5mm) help designers integrate it into space-constrained PCB layouts without compromising precision. Features a 1.25V reference voltage for stable output. Surface mount 8-pin SOIC package suitable for PCB integration.
Low temperature coefficient of 10 ppm/°C ensures minimal drift. Operates over a temperature range from -40°C to +125°C. Supports output currents up to 30mA for versatile applications. Low typical operating current of 140 μA to conserve power.
Line regulation of 50 ppm/V and load regulation of 40 ppm/mA for accuracy. Meets automotive AEC-Q100 standards for reliability. Compact dimensions of 4.9mm length and 1.5mm height enable space-saving designs.
This voltage reference component is ideal for use in industrial machinery, automotive electronics, laboratory instrumentation, and HVAC systems requiring accurate and stable voltage references. It supports enhanced power efficiency and device reliability critical to modern electronics manufacturing and maintenance.
Explore more power management ICs and Voltage Reference solutions compatible with Microchip devices in the Electronics & Electricals section on EnvMart.
