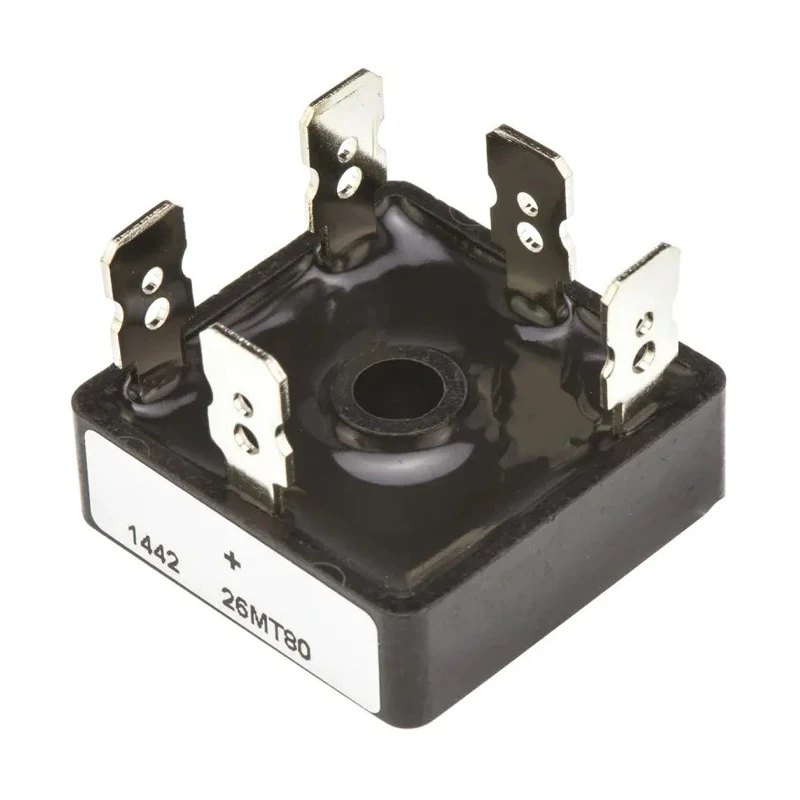

Vishay Bridge Rectifier, 800 V Peak Reverse Voltage, 375 A Peak Surge Current, 5-Pin Single VS-26MT80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-26MT80 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-26MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 375A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.26V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 600 V 375 A, 5-Pin SingleBrand | Vishay |
Key Features
- Supports a maximum operating temperature of 150°C for reliable performance.
- Features a through-hole mount type with D-63 package size for secure PCB installation.
- Operates with a maximum forward current of 25 A and peak forward voltage of 1.26 V.
- Equipped with universal 3-way push-on terminals allowing for flexible connections.
- Provides excellent power-to-volume ratio with electrically insulated high thermal conductivity case.
- Designed for industrial, power electronics, and semiconductor applications requiring efficient AC to DC conversion.
- Pin count of 5 suitable for three-phase bridge rectifier circuitry.
- Construction allows for a minimum operating temperature of -55°C, supporting wide temperature ranges.
Product Description
Vishay VS-26MT80 Bridge Rectifier is a high-performance three-phase full-wave rectifier designed for converting alternating current (AC) to direct current (DC) efficiently. With a peak reverse voltage rating of 800 V and capable of handling a peak surge current of 375 A, this device ensures robust electrical performance in demanding environments.
The rectifier features a 5-pin single configuration with a D-63 through-hole mount package, providing mechanical stability and ease of installation on PCBs. It supports a forward current rating of 25 A and a low peak forward voltage drop of 1.26 V, improving overall energy efficiency.
Operating within a temperature range from -55°C to a maximum of 150°C, the device is suited for harsh industrial conditions. The case employs a high thermal conductivity material that is electrically insulated, optimizing heat dissipation while ensuring safe operation.
Equipped with universal three-way terminals that support push-on, wrap-around, or solder connections, the VS-26MT80 offers installation versatility for various applications. Its compact dimensions of 28.5 mm x 28.5 mm x 10 mm enable space-saving designs without compromising performance.
This bridge rectifier is ideal for industrial power supplies, motor drives, HVAC systems, and other semiconductor applications requiring reliable conversion of three-phase AC to DC current.
Supports a maximum operating temperature of 150°C for reliable performance. Features a through-hole mount type with D-63 package size for secure PCB installation. Operates with a maximum forward current of 25 A and peak forward voltage of 1.26 V.
Equipped with universal 3-way push-on terminals allowing for flexible connections. Provides excellent power-to-volume ratio with electrically insulated high thermal conductivity case. Designed for industrial, power electronics, and semiconductor applications requiring efficient AC to DC conversion.
Pin count of 5 suitable for three-phase bridge rectifier circuitry. Construction allows for a minimum operating temperature of -55°C, supporting wide temperature ranges. Explore more Vishay Semiconductor products and Bridge Rectifier solutions at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse voltage rating of this model is 800 V.
It can handle a maximum forward current of 25 A.
The peak forward voltage drop is 1.26 V.
The operating temperature range is from -55°C to a maximum of 150°C.
This model features a pin count of 5.
It uses a through-hole mount type with a D-63 package size.
It is equipped with universal 3-way terminals that allow for push-on, wrap-around, or solder connections.
The peak non-repetitive forward surge current rating is 375 A.
The dimensions are 28.5 mm x 28.5 mm x 10 mm.
This bridge rectifier is designed for industrial power supplies, motor drives, HVAC systems, and other semiconductor applications requiring efficient AC to DC conversion.
The peak reverse current rating is 200 μA.
The country of origin for this model is India.
