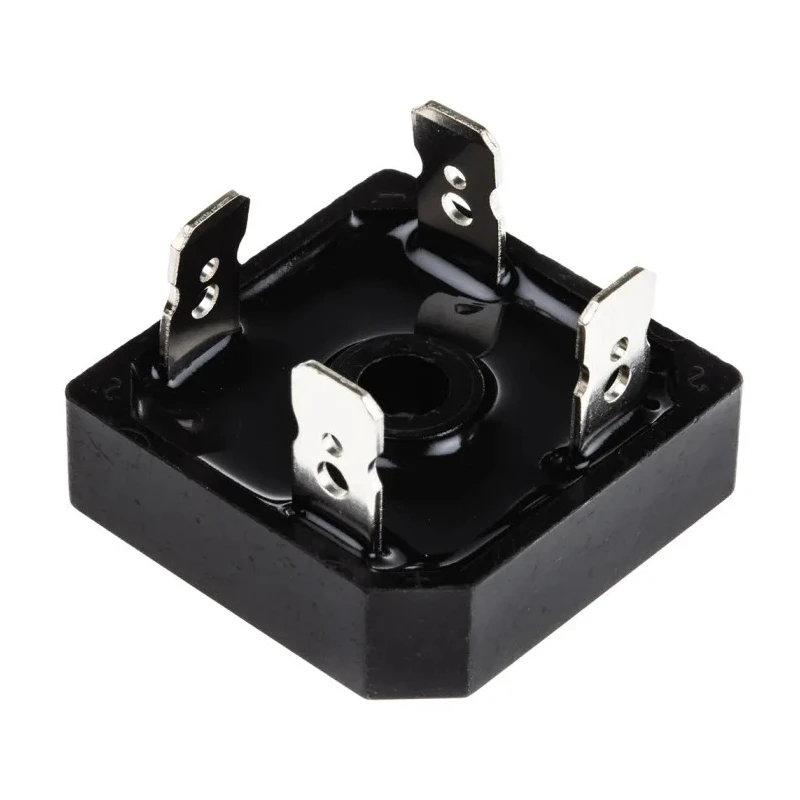

Vishay Bridge Rectifier 800 V 420 A, 4-Pin Single Phase, Screw Mount, Package D-34 VS-26MB80A

Vishay VS-26MB80A Bridge Rectifier is a single-phase semiconductor device designed for efficient AC to DC full-wave rectification. It is built in a D-34 encapsulated package with screw mount and four pins, meeting industrial operational requirements with a peak reverse repetitive voltage of 800 V and a forward current rating of 25 A.

This rectifier features universal three-way terminals enabling versatile installation methods including push-on, wrap around, or soldering, thereby increasing application flexibility. The thermally conductive package with an electrically insulated case provides excellent heat dissipation, ensuring reliable operation even at maximum operating temperatures up to 150°C and minimum temperatures down to -55°C.

The device supports a peak non-repetitive forward surge current of 420 A suitable for transient load conditions and has a low peak forward voltage of 1.11 V which optimizes efficiency. Its nickel-plated terminals are compatible with lead-free solder alloys such as Sn/Ag/Cu (SAC305) and withstand solder temperatures ranging from 260 °C to 275 °C.

This bridge rectifier is ideal for both instrumentation and general-purpose industrial applications where compact size and thermal management are critical. The encapsulated design ensures protection and physical durability with dimensions of 28.5 mm length, 28.5 mm width, and a height of 9.8 mm.

Supports robust peak reverse voltage of 800 V. Rated continuous forward current of 25 A for stable operation. Withstands surge currents up to 420 A. Compact form factor with screw mount and D-34 package. Wide operating temperature range from -55°C to 150°C.

Electrically insulated, thermally conductive housing. Universal terminal types for versatile mounting. Nickel-plated terminals for Pb-free solder compatibility. Designed for industrial and instrumentation usage.

The Vishay VS-26MB80A Bridge Rectifier ensures high power-to-volume ratio offering reliable performance for demanding electrical circuits. It is manufactured in India and conforms to UL E300359 approval standards, confirming its quality and safety for integration in electronic assemblies.

EnvMart offers this component for industrial electronics applications requiring efficient AC to DC conversion with durable, high quality components.
