Samtec Vertical Edge Connector Female Surface Mount 40-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Edge Connector Female Surface Mount 40-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-DV

Name: Samtec Vertical Edge Connector Female Surface Mount 40-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-DV
Brand: Samtec
SKU: 172158
Price: 6.15 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	240V
Brand	Samtec
Orientation	Vertical
Current	2.8A
Model	HSEC8-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HSEC8-DV
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector Gender	Female
Card Type	PCIe
Card Thickness	1.6mm

Key Features

Designed with a vertical orientation suitable for PCB edge mounting.
Consists of 40 gold-plated contacts ensuring reliable conductivity.
Constructed with beryllium copper alloy contact material for durability.
Supports a current of up to 2.8A and voltage rating of 240V.
Operates within a temperature range from -55°C to 125°C.
Features solder termination type ensuring secure electrical connection.
Housing made from liquid crystal polymer providing stability and insulation.
Card thickness of 1.6 mm compatible with PCIe card types.

Product Description

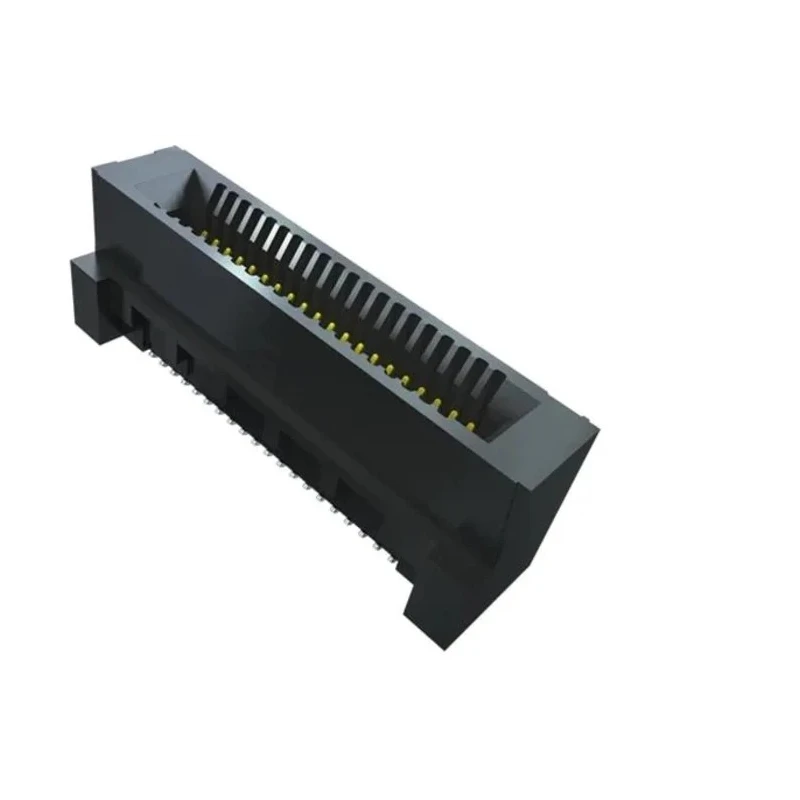

Samtec HSEC8-DV is a high-performance vertical edge connector female designed for electronic applications requiring surface mounting. The connector features 40 gold-plated contacts arranged in 2 rows with a 0.8 mm pitch, offering secure and stable connections important for PCIe card interfaces.

The contacts are crafted from beryllium copper alloy with gold plating, providing excellent conductivity and corrosion resistance. The solder termination allows for robust assembly on printed circuit boards. The housing utilizes liquid crystal polymer which offers mechanical strength and thermal stability over the operating temperature range from -55°C to 125°C. This connector supports current ratings of up to 2.8 A at 240 V, making it suitable for moderate power applications.

The connector's dual vertical row design includes an alignment pin enabling precise card positioning during PCB installations. The card thickness compatibility of 1.6 mm fits common PCIe cards used in industrial, computing, and telecommunications equipment.

Packaging in tape and reel format facilitates automated pick-and-place processes, ideal for volume PCB assembly and manufacturing environments. This edge connector is extensively used in electronic components, power connector circuits, and other industrial electronics applications requiring reliable, precise edge connections.

Vertical orientation suitable for PCB edge connector applications. 40 gold-plated contacts arranged in 2 rows at 0.8 mm pitch. Beryllium copper alloy contacts offer durability and conductivity. Solder termination provides stable attachment to surface mount boards.

Housing made from liquid crystal polymer ensures thermal and mechanical resilience. Current rating of 2.8A and voltage rating of 240V applicable for moderate power devices. Operating temperature from -55°C to 125°C supports demanding environments.

Compatible with PCIe card type thickness of 1.6 mm. Tape and reel packaging supports automated manufacturing processes.

Samtec edge connectors are trusted in industrial automation, telecommunications, computing, and electronic manufacturing sectors. Explore the full range of Edge Connectors on EnvMart for professional-grade connector solutions.
