XP Power DC/DC Switching Regulator Through Hole SIP Package 12V DC Output 500mA 6W SR05S12

Free Delivery in India | Lowest Global Shipping Charges

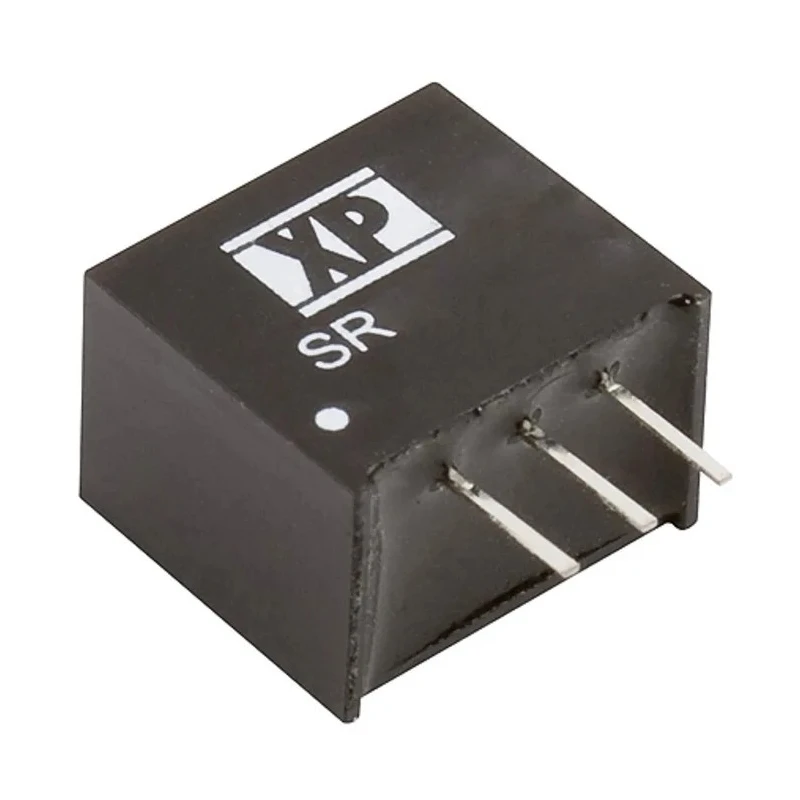

XP Power DC/DC Switching Regulator Through Hole SIP Package 12V DC Output 500mA 6W SR05S12

Name: XP Power DC/DC Switching Regulator Through Hole SIP Package 12V DC Output 500mA 6W SR05S12
Brand: XP Power
SKU: 140605
Price: 13.2 USD
Availability: InStock



Category Switching Regulator Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Brand	XP Power
Power	6W
Efficiency	96%
Length	11.68mm
Model	SR05S12
Depth	10.15mm
Gross Weight	1.8g
Width	7.5mm
Mount Type	Through Hole
Series	SR
Output Current	500mA
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.6 %
Minimum Operating Temperature	-40°C
MTBF	4.5mH
Number of outputs	1
Ripple and Noise	60mV Pk-Pk
Maximum Input Voltage	34V dc
Line Regulation	±0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	15V
Output Voltage 1	12V dc

Key Features

Offers high efficiency of 96%, ensuring minimal power loss during operation.
Features a wide input voltage range from 15V to 34V DC for versatile applications.
Includes continuous short circuit protection to enhance safety and durability.
Operates reliably in wide temperature range from -40°C to 85°C for industrial environments.
Compact size with dimensions 11.68mm (L) x 7.5mm (W) x 10.15mm (D) suitable for PCB integration.
Low ripple and noise of 60mV Pk-Pk ensures stable output voltage with minimal interference.
Industry standard SIP package compatible with standard footprints and pin layouts.
Pin compatible with LM78MXX regulators for easy replacement in designs.

Product Description

XP Power SR05S12 DC/DC Switching Regulator is a high-performance power supply component designed for converting DC voltages within electronic circuits. Featuring a through-hole SIP package, this regulator provides a regulated 12V DC output at a maximum current of 500mA and power rating of 6W. Its broad input voltage range from 15V to 34V DC and efficiency of up to 96% make it suitable for many industrial, electronic, and laboratory applications requiring reliable power conversion.

Constructed to operate within an ambient temperature range from -40 °C to 85 °C, the SR05S12 supports harsh environments common in industrial automation, telecommunications, and embedded systems. The regulator incorporates continuous short circuit protection to ensure robustness against electrical faults and extends functional reliability.

With low ripple and noise specifications (60mV peak-to-peak), the unit ensures clean, stable voltage output vital for sensitive electronics. The small SIP package (11.68 mm length, 7.5 mm width, 10.15 mm depth) allows for efficient PCB space utilization. This product is pin-compatible with LM78MXX series regulators, aiding in seamless replacements and upgrades in existing designs.

High efficiency minimizes heat dissipation and power consumption. Wide operating temperature range suitable for diverse industrial and commercial uses. Compact form factor simplifies installation in tight circuit board layouts.

Compliance with RoHS environmental standards. Continuous short circuit protection enhances device longevity and safety. Designed for electronics manufacturing, industrial automation, communications, and laboratory equipment.

This DC/DC Switching Regulator is an essential component for applications needing compact, reliable, and efficient voltage regulation. Explore more high-quality power supply solutions in our Electronics & Electricals category at EnvMart.
