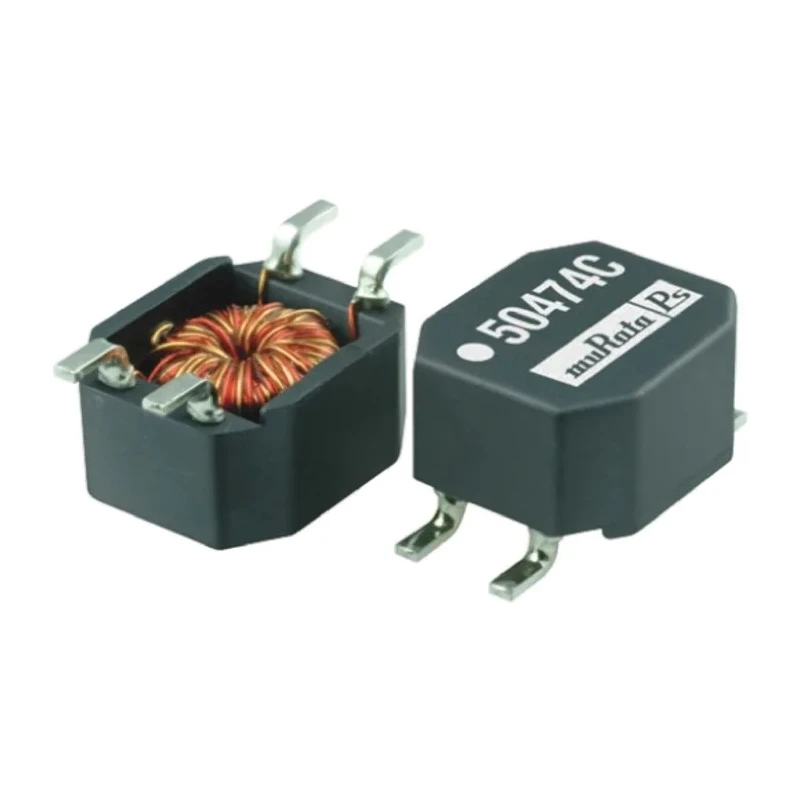

Murata Power Solutions Surface Mount Common Mode Choke Inductor 470μH 700mA Wirewound 5000 Series 50474C

Murata Power Solutions 50474C surface mount common mode choke is a 5000 Series wirewound inductor designed for attenuating common mode noise in electronic circuits. It features a nominal inductance of 470μH with a tolerance ranging from -30% to 50%, accommodating diverse design requirements. The choke supports a maximum DC current of 700mA and offers a maximum DC resistance of 300mΩ, ensuring efficient operation with minimal power loss.

This common mode choke measures 7mm in length, 3.6mm in height, and 5.9mm in depth, making it compact and suitable for surface mounting on printed circuit boards. It includes 4 pins for ease of integration. The robust wirewound construction provides mechanical and electrical stability over a wide operating temperature range of -40°C to 85°C.

Designed to meet environmental compliance, this Murata product is RoHS certified and incorporates UL 94V-0 packaging materials. It is ideally suited for low current switching power supplies and telecommunications equipment that require attenuation of common mode noise up to 100MHz.

The compact and reliable design makes it a preferred choice for industrial, electronic manufacturing, telecommunications, and power management applications. Its surface mount style enables improved production efficiency through ready-to-use packaging for insertion into machinery.

Compact 5000 Series with surface mount termination style. Inductance tolerance between -30% to 50% supports variable applications. Wirewound construction enhances durability and performance. Operating temperature range from -40°C to 85°C for reliable operation.

Dimensions: 7mm length, 3.6mm height, and 5.9mm depth. Maximum DC resistance of 300mΩ to minimize power loss. Pin count of 4 enables surface mounting on PCB designs. RoHS compliant ensuring environmental safety standards.

Suitable for low current switching power supplies and telecom applications. Designed to attenuate common mode noise up to 100MHz frequency. Explore the comprehensive Murata Power Solutions range and other Surface Mount Inductors available at EnvMart for your electronics design and manufacturing needs.
