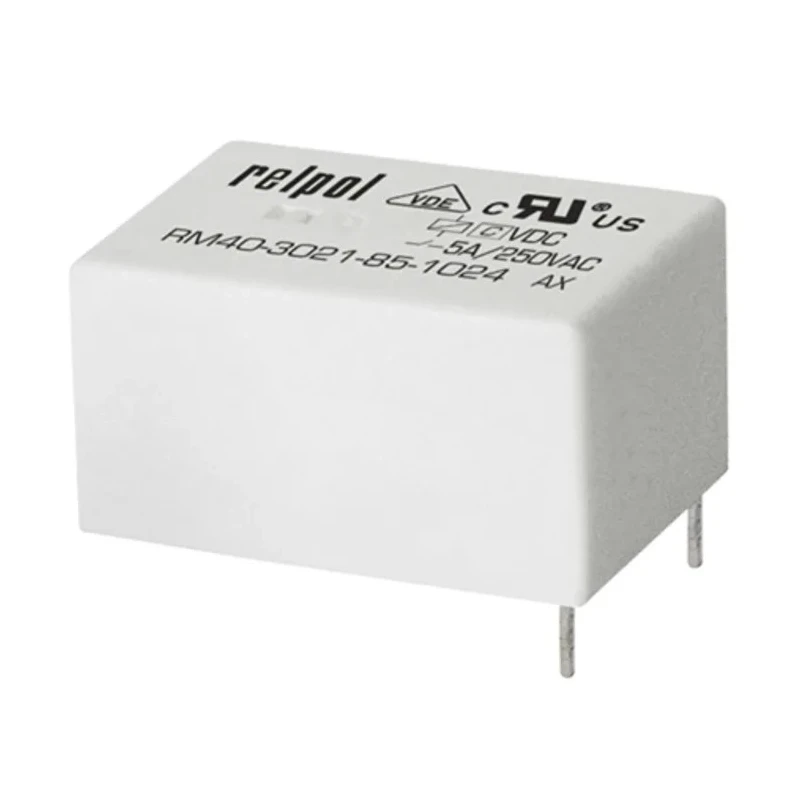

Relpol RM40 Series PCB Power Relay, 5V DC Coil, 5A Switching Current, SPDT RM40-2011-85-1005

Free Delivery in India | Lowest Global Shipping Charges

Relpol RM40 Series PCB Power Relay, 5V DC Coil, 5A Switching Current, SPDT RM40-2011-85-1005

Name: Relpol RM40 Series PCB Power Relay, 5V DC Coil, 5A Switching Current, SPDT RM40-2011-85-1005
Brand: Relpol
SKU: 144139
Price: 4.67 USD
Availability: InStock



Category Power Relay Brand Relpol Condition New

Specifications

Country of Origin	Poland
Brand	Relpol
Height	10.5mm
Length	20mm
Model	RM40-2011-85-1005
Width	10mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	RM40
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	5A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	RoHS, VDE
Coil Resistance	125Ω
Coil Voltage	5V dc
Switching DC Voltage	48V dc
Switching AC Voltage	380V ac
Coil Power	200mW

Key Features

The relay features a Single Pole Double Throw (SPDT) contact configuration for versatile circuit switching.
Operates efficiently with a coil resistance of 125Ω and coil power of 200mW.
Supports switching voltages up to 48V DC and 380V AC, with a maximum switching power of 250VA.
Compact dimensions of 20mm length, 10mm width, and 10.5mm height for easy PCB integration.
Constructed with silver alloy contacts offering low contact resistance of 100mΩ for high conductivity.
Designed to withstand a wide operating temperature range from -40°C to 85°C.
Complies with RoHS and VDE standards ensuring environmental safety and reliable performance.

Product Description

The Relpol RM40-2011-85-1005 is a miniature power relay designed for PCB mounting, featuring a 5V DC coil and a 5A switching current.

This relay has a compact form factor with dimensions of 20mm length, 10mm width, and 10.5mm height, facilitating easy integration into printed circuit boards. Its coil resistance is rated at 125Ω, drawing a coil power of only 200mW, which contributes to its energy efficiency.

It allows switching of DC voltages up to 48V and AC voltages up to 380V, handling a maximum switching power of 250VA. The contacts are made from silver alloy, providing a low contact resistance of 100mΩ that ensures reliable electrical connectivity and signal integrity.

The device operates safely within a broad temperature range of -40°C to 85°C, making it suitable for harsh industrial and environmental conditions. Certified to RoHS and VDE standards, the relay adheres to stringent environmental and safety requirements.

This power relay is widely applicable in industrial automation, control systems, electronic circuit assemblies, and automotive electronics. Its robust design offers high shock and vibration resistance, enhancing its reliability in demanding applications.

The relay features a Single Pole Double Throw (SPDT) contact configuration for versatile circuit switching. Operates efficiently with a coil resistance of 125Ω and coil power of 200mW. Supports switching voltages up to 48V DC and 380V AC, with a maximum switching power of 250VA.

Compact dimensions of 20mm length, 10mm width, and 10.5mm height for easy PCB integration. Constructed with silver alloy contacts offering low contact resistance of 100mΩ for high conductivity. Designed to withstand a wide operating temperature range from -40°C to 85°C.

Complies with RoHS and VDE standards ensuring environmental safety and reliable performance. Explore our range of industrial Power Relays at EnvMart for trusted performance and compliance with industry standards.
