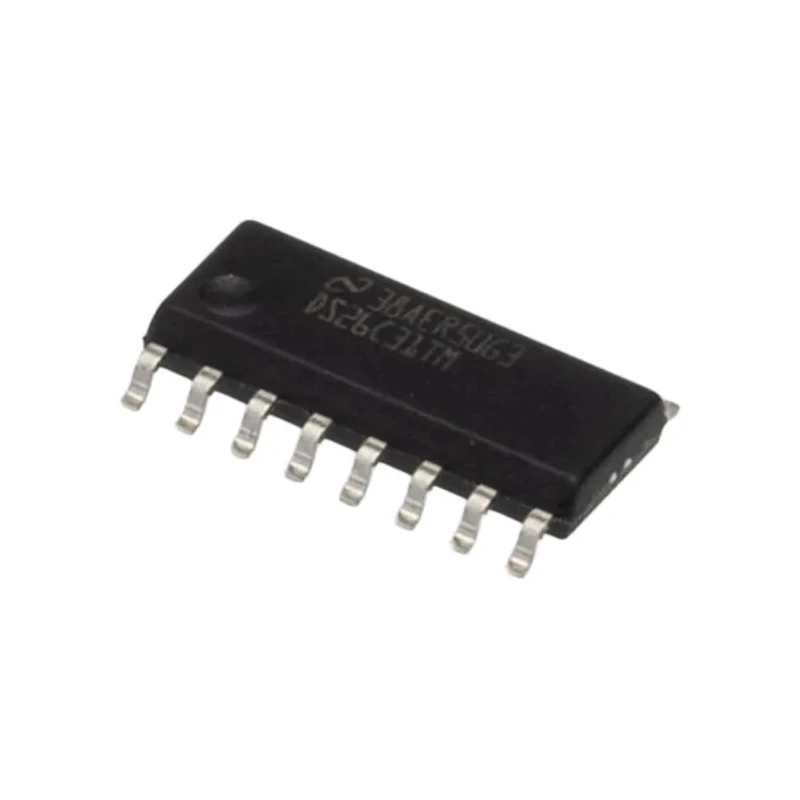

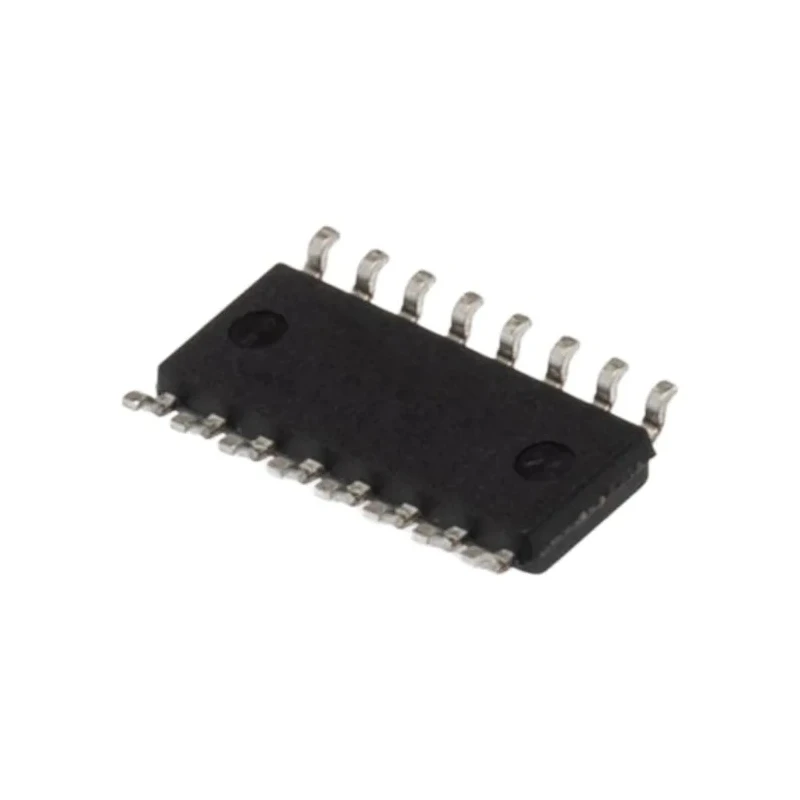

Texas Instruments 4-Channel CMOS Line Transmitter 3 State, Surface Mount SOIC 16-Pin DS26C31TM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | DS26C31TM/NOPB |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | DS26C31T |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Driver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 8ns |
| Supply Current | 500μA |
Key Features
- Operates with supply voltage from 4.5V to 5.5V.
- Maximum propagation delay time of 8ns at load capacitance.
- Features 3 state output for enhanced bus control.
- Surface mount SOIC package with 16 pins for compact mounting.
- Wide operating temperature range from -40°C to 85°C.
- Low supply current consumption at 500μA.
- Four independent channels for versatile line driving.
- Compatible with RS-422 line transmitter standards.
Product Description
Texas Instruments DS26C31TM/NOPB is a 4-channel CMOS line transmitter designed for driving differential signals in communication and data transfer applications. The device operates with a supply voltage ranging from 4.5V to 5.5V and features 3 state outputs that provide enhanced control over the communication bus. Packaged in a surface mount 16-pin SOIC, its compact size of 10mm length, 6.2mm width, and 1.75mm height makes it suitable for space-constrained PCB layouts.
This line driver IC has a maximum propagation delay time of 8ns at specified load capacitance, ensuring fast and reliable signal transmission. It supports an extended operating temperature range from -40°C to 85°C, making it suitable for industrial and commercial environments. The IC consumes a low supply current of 500μA, enhancing energy efficiency in embedded systems.
The DS26C31TM/NOPB is compliant with RS-422 line transmitter standards and offers four independent channels capable of driving differential inputs. Its CMOS logic family architecture ensures reliable and noise-resilient operation in demanding applications.
Typical applications include industrial communication systems, data acquisition, and instrumentation where precise and high-speed line transmission is required. The surface mount SOIC package facilitates automated assembly and integration in modern electronic designs.
Operates on 4.5V to 5.5V supply voltage range. Maximum propagation delay time: 8 nanoseconds. Features 3-state outputs for bus sharing capability. Surface mount technology with 16-pin SOIC package. Operating temperature range: -40°C to 85°C.
Low power consumption at 500 microamperes supply current. Four independent line driver channels available. CMOS logic family for enhanced reliability. Compliant with RS-422 line transmitter standards. Compact physical dimensions suitable for PCB applications.
Explore our comprehensive range of semiconductor Line Interface ICs at EnvMart for industrial, laboratory, communication, and embedded electronics applications.
