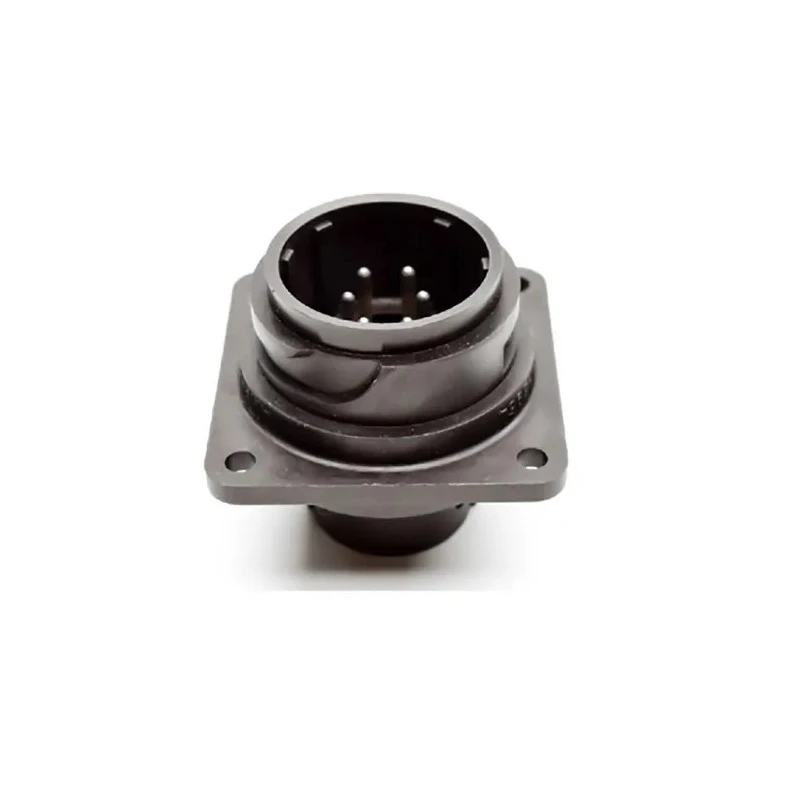

Amphenol Industrial Circular Connector Panel Mount Socket Male 5 Contacts IP65 Ecomate C16 C016-20C005-1002

Amphenol Industrial C016-20C005-1002 is a high-quality circular connector from the Ecomate C16 series, designed for panel mounting and industrial applications requiring robust and reliable electrical connections. This socket connector features 5 contacts with a male contact gender and is engineered for IP65 ingress protection, ensuring durability against dust and water ingress.

The connector supports a maximum current of 21A and a voltage rating of 400V, appropriate for power and control signal transmissions in machinery and equipment. Its thermoplastic housing offers a lightweight yet sturdy construction, suited to withstand demanding industrial environments. The screw termination type ensures firm and secure wiring connections, while the bayonet mating type provides reliable locking and quick engagement.

Operating across a temperature range from -40°C up to 125°C, this connector is built to perform in extreme conditions. Its standard size with a 38 mm shell diameter and straight orientation simplifies installation in panels. The connector's 5+PE pole format and gold and silver contact plating enhance conductivity and resistance to corrosion.

The design includes pre-mating earth contacts for safety, along with strain relief and PG cable gland for conduit fixing, facilitating secure and efficient cable and chassis connections. This connector is ideal for industrial fields such as manufacturing, machinery, light and sound applications, HVAC systems, and commercial equipment.

Amphenol's Ecomate C16 series connectors are known for their versatility, reliability, and ease of mating with corresponding series connectors. Durable thermoplastic housing with IP65 ingress protection. Supports 21A current at 400V voltage rating.

Male contacts plated with gold and silver for enhanced conductivity. Screw termination contacts with bayonet locking mating type. Wide operating temperature range from -40°C to 125°C. Standard connector size with 38 mm shell diameter and straight orientation.

Part of the reliable Ecomate C16 series for industrial applications. Pre-mating earth design with strain relief and PG cable gland included. Suitable for robust industrial, manufacturing, HVAC, and commercial environments.
