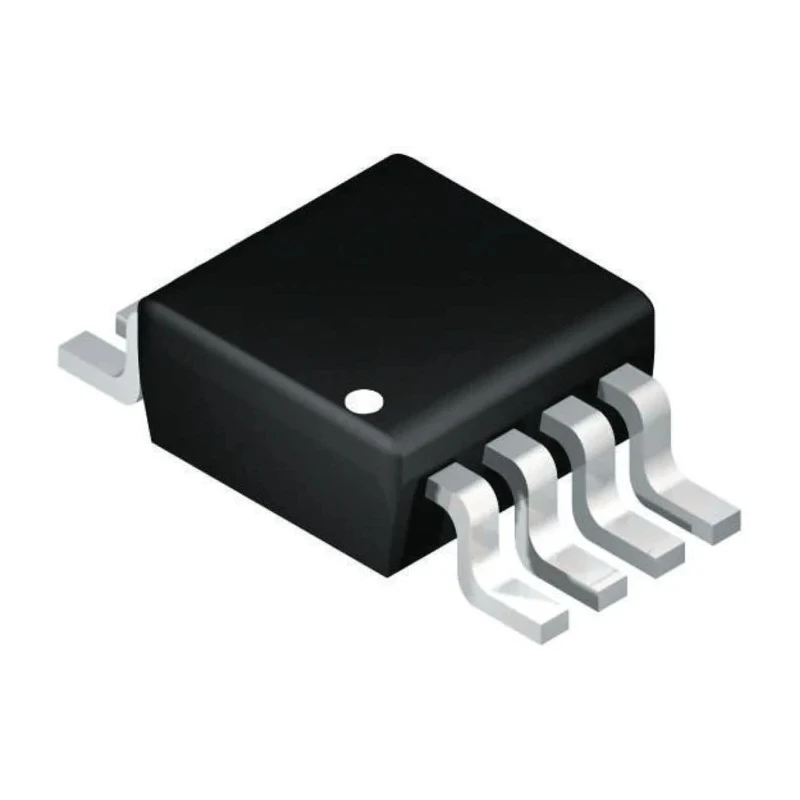

Maxim Integrated Digital to Analogue Converter 10 bit, 2-Channel, Serial-I2C Interface, Surface Mount μMAX MAX5821LEUA+

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated Digital to Analogue Converter 10 bit, 2-Channel, Serial-I2C Interface, Surface Mount μMAX MAX5821LEUA+

Name: Maxim Integrated Digital to Analogue Converter 10 bit, 2-Channel, Serial-I2C Interface, Surface Mount μMAX MAX5821LEUA+
Brand: Maxim Integrated
SKU: 159915
Price: 11.73 USD
Availability: InStock



Category Digital to Analogue Converter Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Resolution	10 bit
Brand	Maxim Integrated
Height	1.1mm
Length	3.05mm
Model	MAX5821LEUA+
Width	3.05mm
Mount Type	Surface
Settling Time	12μs
Output type	Analogue Voltage
Maximum Operating Temperature	85°C
Package Type	μMAX
Minimum Operating Temperature	-40°C
Number Of Channels	2
Interface Type	Serial-I2C
Architecture	Resistor String
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	5V

Key Features

Provides precise 10-bit resolution analogue voltage output.
Features two independent output channels for versatile applications.
Operates with a supply voltage range of 5V to 5.5V.
Compact 8-pin μMAX package with small dimensions of 3.05mm x 3.05mm x 1.1mm.
Supports serial I2C communication interface for easy integration.
Reliable operation within temperature range -40°C to 85°C.
Fast settling time of 12 microseconds for efficient signal conversion.
Designed for surface mount applications to optimize PCB space.

Product Description

Maxim Integrated’s MAX5821LEUA+ is a high-performance Digital to Analogue Converter (DAC) featuring 10 bit resolution and two output channels. This device operates through a serial I2C interface making it ideal for applications requiring precise analogue output from digital signals in embedded systems.

The DAC uses resistor string architecture ensuring accurate and linear output voltages, suitable for industrial, laboratory, communication and consumer electronics. Its surface mount μMAX package is compact with dimensions of 3.05mm length, 3.05mm width, and 1.1mm height, facilitating space-saving PCB layouts.

This DAC functions reliably over a wide temperature operating range from -40°C to 85°C, supporting industrial temperature requirements. The device operates within a supply voltage range from 5V minimum to 5.5V maximum with an external voltage reference. A fast settling time of 12 microseconds allows for quick response in dynamic applications.

With an 8-pin configuration, the MAX5821LEUA+ is easy to integrate in designs requiring small form factor and efficient digital-to-analogue conversion with stable analogue voltage output. No automotive or other specific standards apply, emphasizing its general-purpose use.

Provides precise 10-bit resolution analogue voltage output. Features two independent output channels for versatile applications. Operates with a supply voltage range of 5V to 5.5V. Compact 8-pin μMAX package with small dimensions of 3.05mm x 3.05mm x 1.1mm.

Supports serial I2C communication interface for easy integration. Reliable operation within temperature range -40°C to 85°C. Fast settling time of 12 microseconds for efficient signal conversion. Designed for surface mount applications to optimize PCB space.

This DAC suits various industrial, electronics development, communication, and embedded system applications requiring digital to analog conversion with stable voltage outputs. Explore more semiconductor and DAC devices in the Electronics & Electricals category at EnvMart.
