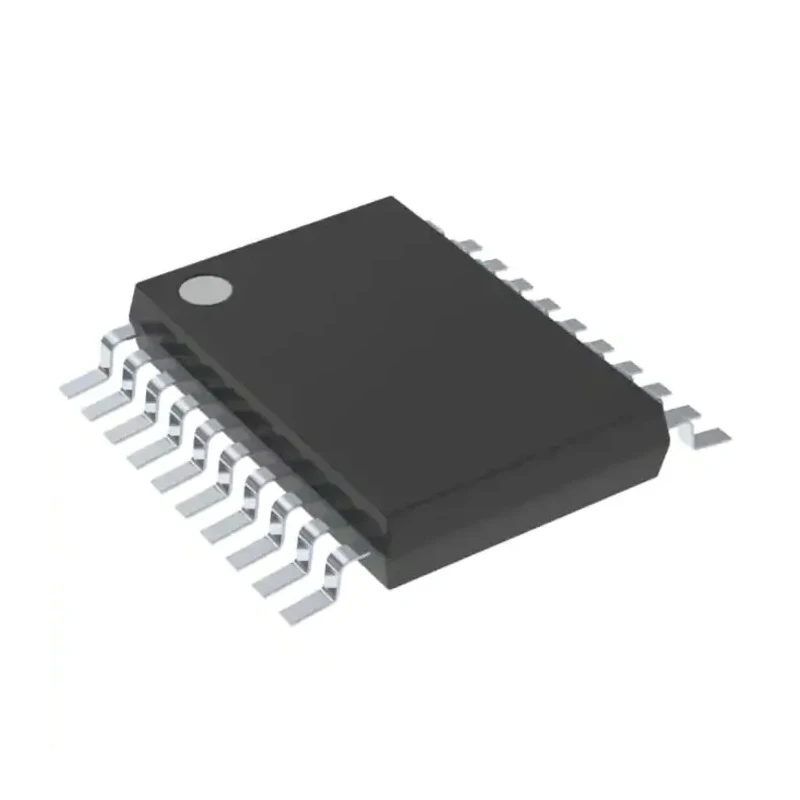

Microchip Digital to Analogue Converter 12 bit, 4-Channel, SPI Interface, 20-Pin TSSOP MCP48FEB24-20E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | MCP48FEB24-20E/ST |
| Width | 3.1mm |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | SPI |
| Architecture | Resistor Ladder |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features a resistor ladder architecture for precise analog voltage output.
- Operates with a supply voltage from 2.7V to 5.5V, ensuring wide compatibility.
- Settling time of 7.8 microseconds for fast signal conversion.
- Designed to operate in temperatures from -40°C to 125°C for robust applications.
- Compact form factor with dimensions 4.5mm length, 3.1mm width, and 1.2mm height.
- SPI interface compatible for seamless digital communication.
- Delivered in a 20-pin Thin Shrink Small Outline Package (TSSOP).
- Provides buffered voltage output suitable for industrial and electronic applications.
Product Description
Microchip MCP48FEB24-20E/ST is a 12-bit Digital to Analogue Converter featuring 4 output channels and an SPI-compatible interface supplied in a 20-pin TSSOP package. It utilizes a resistor ladder architecture providing accurate and buffered analog voltage outputs. This device supports a supply voltage range of 2.7V to 5.5V and operates with a fast settling time of 7.8 microseconds.
Its operating temperature range from -40°C to 125°C allows usage in harsh industrial, automotive, and electronic system environments. The compact package measures 4.5mm in length, 3.1mm in width, and 1.2mm in height, making it suitable for space-constrained circuit designs.
This DAC is well-suited for applications requiring multiple analog output channels such as signal generation, control systems, data acquisition, and electronic instrumentation. Its SPI interface ensures straightforward integration with microcontrollers and digital processing units.
Resistor ladder architecture enables precise digital-to-analog conversion. Four independent output channels provide flexible analog outputs. Wide supply voltage range enhances compatibility with varied systems. Fast settling time improves performance in dynamic signal environments.
Wide temperature operating range supports industrial and automotive applications. Compact TSSOP package facilitates integration into dense PCB layouts. Buffered voltage outputs ensure signal integrity and stability. SPI interface allows easy digital communication and control.
Suitable for use in semiconductors, industrial controls, and embedded electronics.
This product aligns well with advanced electronics designs that require reliable and accurate analog outputs. Explore our extensive electronics and semiconductor catalog at EnvMart for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP48FEB24-20E/ST features a resolution of 12 bits.
This model has four independent output channels.
It operates within a supply voltage range of 2.7V to 5.5V.
It utilizes an SPI interface for digital communication.
The settling time is 7.8 microseconds, allowing for fast signal conversion.
This model measures 4.5mm in length, 3.1mm in width, and 1.2mm in height.
It operates within a temperature range of -40°C to 125°C.
It employs a resistor ladder architecture for precise analog voltage output.
The output type is buffered analog voltage, suitable for various applications.
This digital to analogue converter has a pin count of 20.
The product is manufactured in India.
It is suitable for applications such as signal generation, control systems, and electronic instrumentation.
