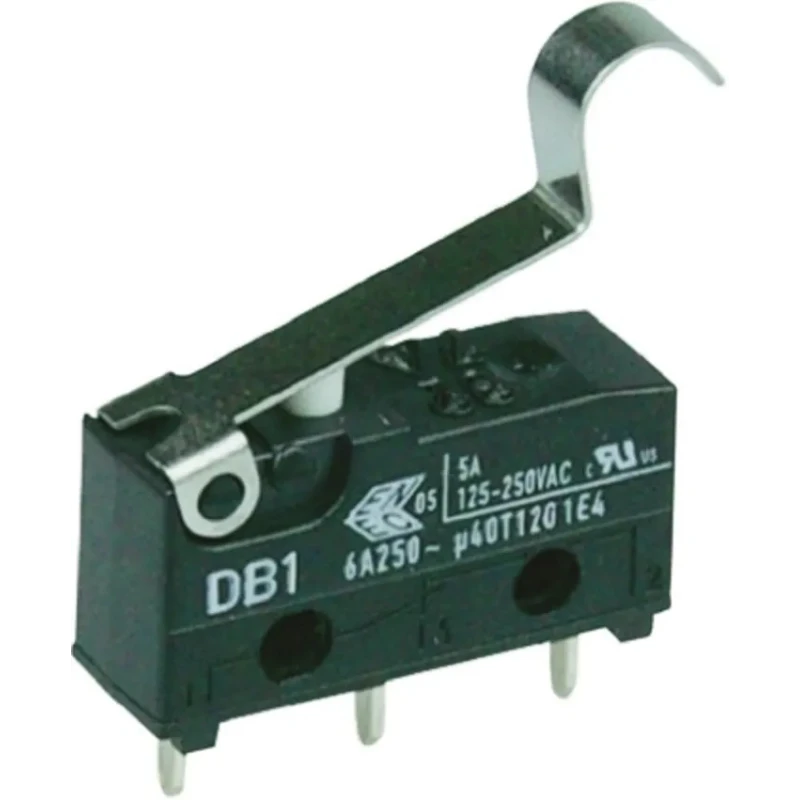

ZF Simulated Roller Lever Micro Switch Through Hole Terminal 6A 250V ac SPDT IP50 DB1C-C1SC

ZF DB1C-C1SC is a high precision micro switch featuring a simulated roller lever actuator, designed for through hole terminal mounting. Rated for 6A contact current and 250 V ac voltage, it provides a single pole double throw (SPDT) contact configuration with IP50 protection. The housing uses robust polyethylene terephthalate and polyamide materials ensuring mechanical strength and electrical insulation. This subminiature DB series micro switch is engineered for demanding industrial applications requiring reliable switching performance and long mechanical life.

The switch operates with a low actuation force of 0.54N, ensuring quick and precise actuation suitable for sensitive control circuits. It withstands extreme temperatures ranging from -40°C to 120°C, making it suited for varied environmental conditions including industrial automation, HVAC systems, and instrumentation controls. The mechanical life rating of up to 15 million operations assures extended operational reliability and reduced maintenance.

Compliant with RoHS regulations, the DB1C-C1SC aligns with modern environmental standards. Its SPDT contact design allows for versatile wiring arrangements, making it suitable for limit switching, detection, and safety circuits. The robust construction and proven electrical ratings make it ideal for manufacturing, construction, and commercial equipment where precise micro switching is essential.

The micro switch features a through hole terminal for secure PCB mounting. The housing is constructed from polyethylene terephthalate and polyamide for durability. Operating force is low at 0.54N, making it responsive and precise.

Wide operating temperature range from -40°C to 120°C suits harsh environments. Mechanical life expectancy up to 15 million operations ensures long-term reliability. Designed under RoHS compliance for environmental safety.

This subminiature DB type micro switch is ideal for industrial automation and control applications. Contact configuration is SPDT to accommodate versatile circuit designs. Rated for AC voltage of 250 V and current of 6A assuring electrical robustness.
