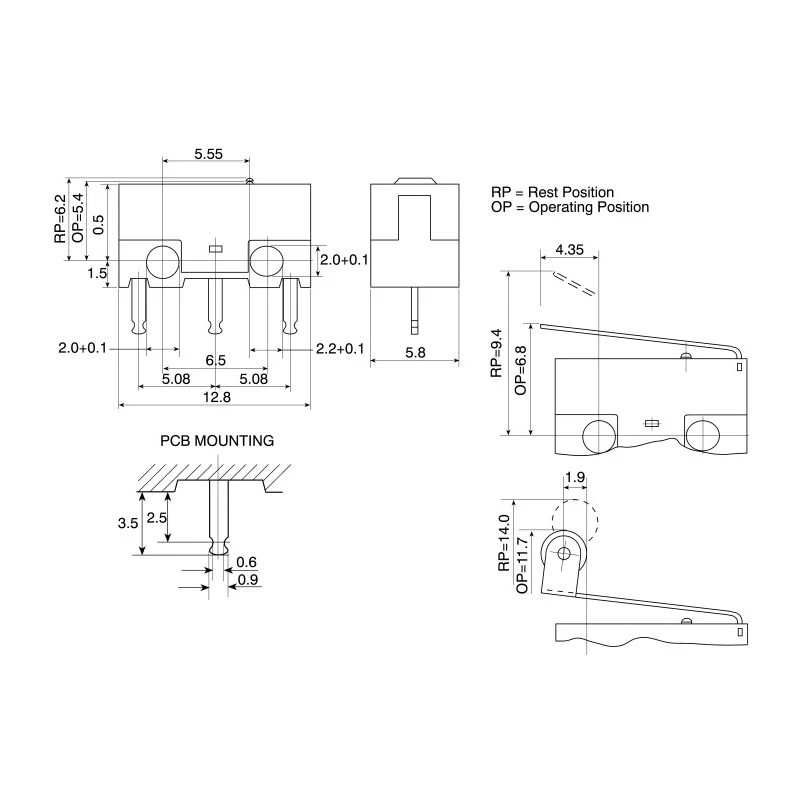

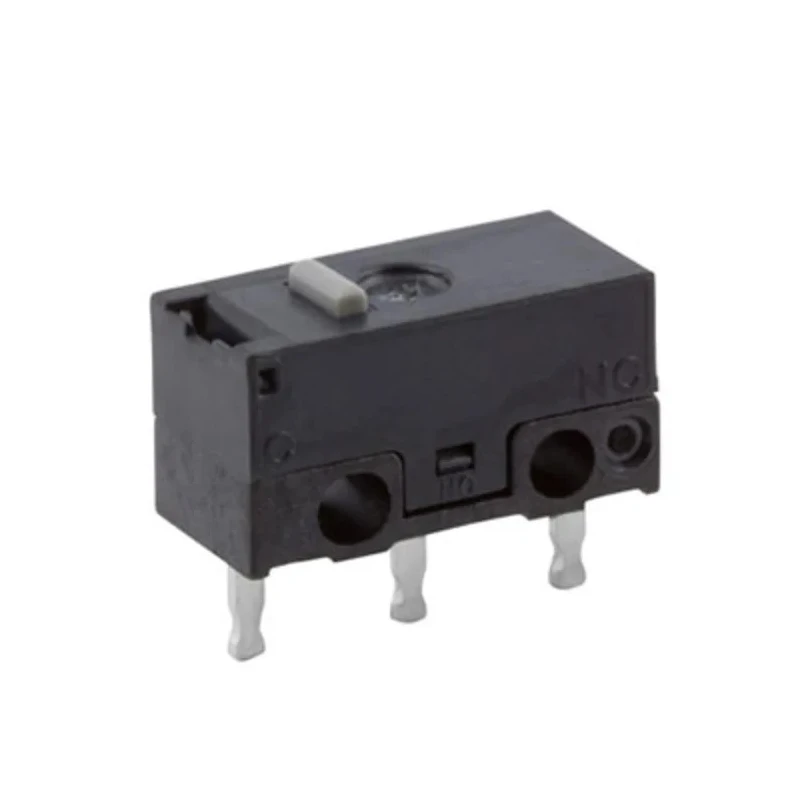

ZF Button Micro Switch SPDT 3A 125 V ac 30 V dc PCB Terminal DG13-B1AA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Operating Temperature Range | -25 to +85°C |
| Length | 12.8mm |
| Model | DG13-B1AA |
| IP Rating | IP40 |
| Housing Material | Polyethylene Terephthalate |
| Series | DG Sub-Miniature |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Button |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.37N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | DG Subminiature |
| SPDT snap action button microswitchBrand | Cherry |
Key Features
- The switch features a polyethylene terephthalate housing for durability and electrical insulation.
- It operates with a mechanical life of 1,000,000 operations ensuring long-term reliability.
- Designed with silver-plated wiping contacts for consistent conductive performance.
- Operating temperature range from -25°C to 85°C suitable for diverse environmental conditions.
- Compact 12.8 mm length with a small form factor ideal for PCB mounting.
- Operating force is 1.37 Newtons, providing reliable actuation sensitivity.
- Subminiature DG series design offers a choice of actuators for various application needs.
- UL recognized component and CSA certified for industrial safety compliance.
Product Description
ZF DG13-B1AA Button Micro Switch is a precision SPDT microswitch engineered for PCB terminal mounting applications. It supports a switch contact current of 3A and is rated for 125 V ac and 30 V dc voltages. The switch housing is made from polyethylene terephthalate, providing robust insulation and mechanical strength.
This microswitch is part of the DG Sub-Miniature series, featuring a compact 12.8 mm length design suitable for space-constrained circuit boards and automation devices. It incorporates silver-plated wiping contacts that ensure excellent conductivity and reliable contact performance over extended use.
With an operating force of 1.37 Newtons and a mechanical lifespan rated at one million operations, this switch is designed for durability and responsive actuation. It is rated IP40, protecting it from ingress of solid objects larger than 1 mm, making it ideal for controlled indoor environments.
The device operates efficiently across a temperature range of -25°C to +85°C, ensuring stable performance in various industrial and commercial applications, including electrical control panels, automation machinery, and instrumentation.
Polyethylene terephthalate housing with UL94V-0 flammability rating. SPDT configuration with silver-plated wiping contacts for high conductivity. Rated for 3A at 125 V ac and 30 V dc. Compact 12.8 mm length for PCB mounting in tight spaces.
One million mechanical operations life expectancy. Operating force of 1.37 N for precise control. Operating temperature from -25°C to 85°C for versatile use. UL recognized and CSA certified for quality assurance. IP40 rated protection against solid ingress.
This ZF DG13-B1AA micro switch is suited for industrial automation, electrical control systems, laboratory equipment, and various commercial electronics requiring dependable tactile switching. It is a reliable component for high-quality circuit designs and maintenance operations.
Explore related Micro Switches and electrical components within the Electronics & Electricals category on EnvMart for comprehensive circuit building and enhancement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this micro switch is from -25°C to +85°C, allowing it to perform effectively in various environmental conditions.
This model has a mechanical life rated at one million operations, ensuring long-term reliability in applications.
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit designs.
It supports a switch contact current of 3A, making it suitable for various electrical applications.
This micro switch is designed with PCB terminals, making it ideal for mounting on printed circuit boards.
The housing is made from polyethylene terephthalate, which provides electrical insulation and mechanical strength.
This model has a compact length of 12.8 mm, suitable for space-constrained applications.
The operating force for this micro switch is 1.37 Newtons, providing reliable actuation sensitivity.
It is UL recognized and CSA certified, ensuring compliance with industrial safety standards.
The switch has an IP40 rating, which protects it from solid objects larger than 1 mm, suitable for controlled indoor environments.
This micro switch is suited for industrial automation, electrical control systems, laboratory equipment, and various commercial electronics requiring tactile switching.
The switch complies with RoHS standards, ensuring it meets environmental and safety regulations.
