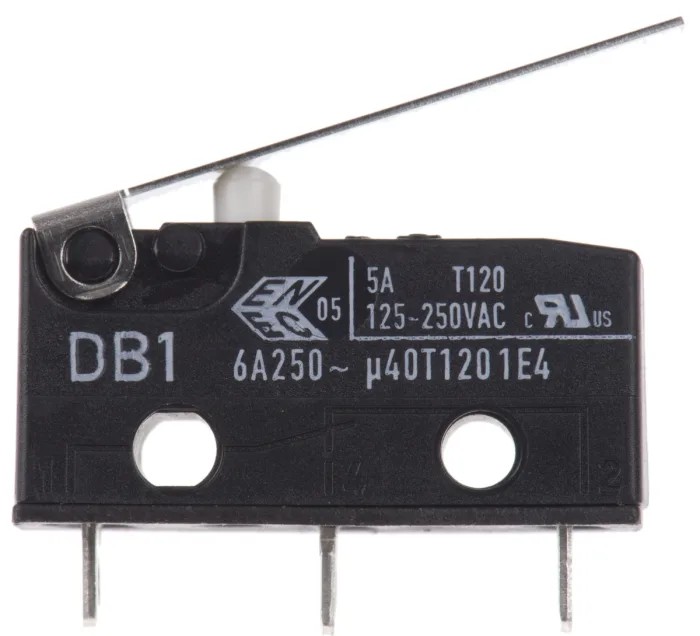

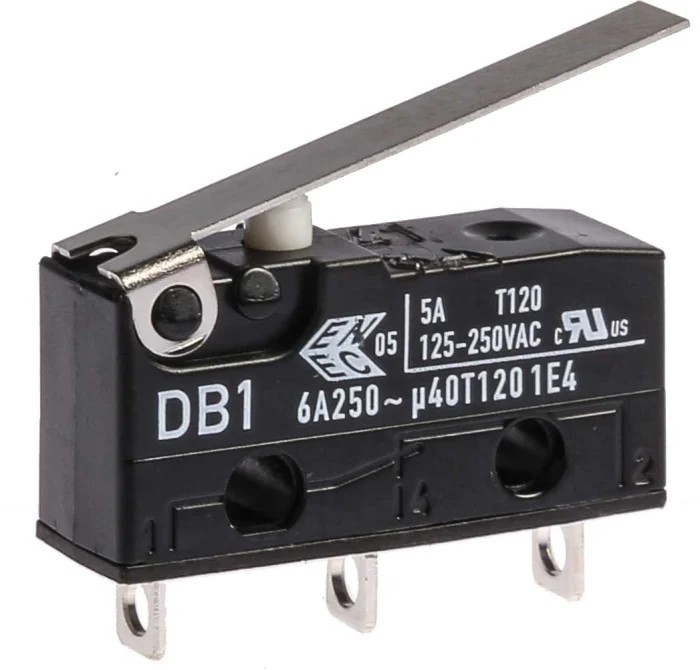

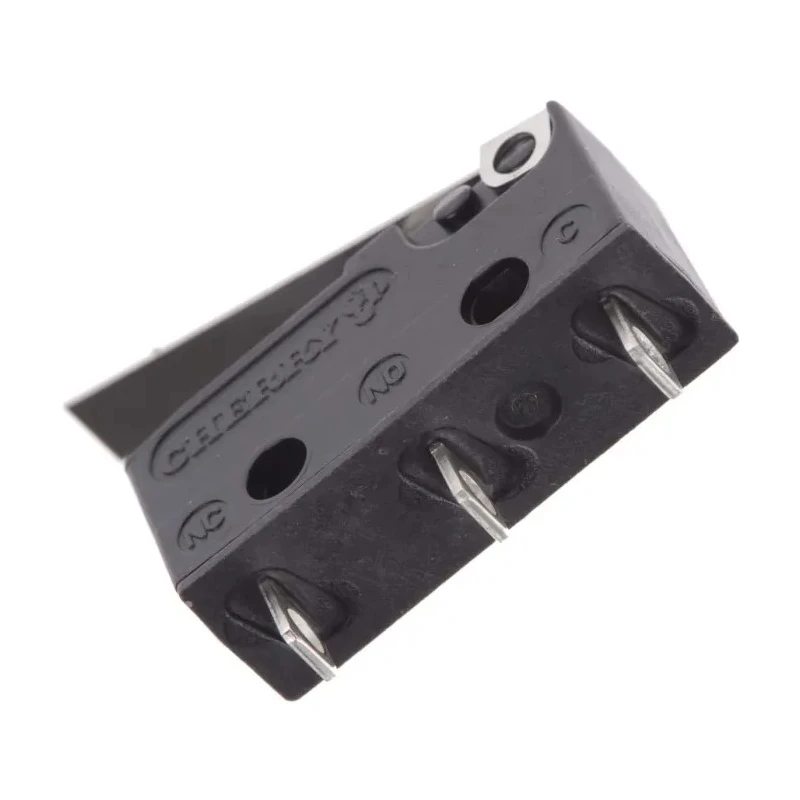

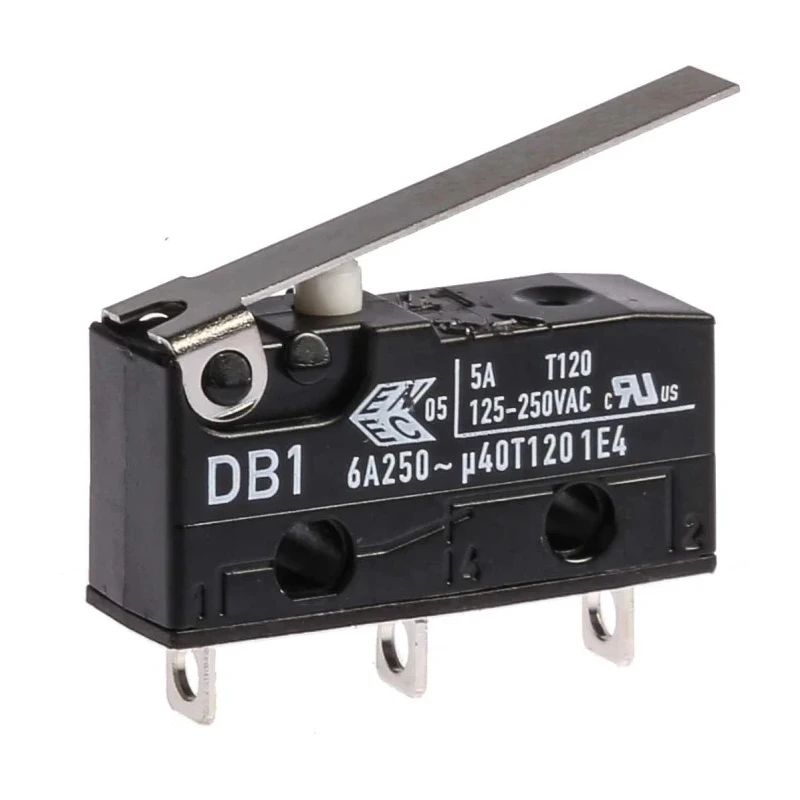

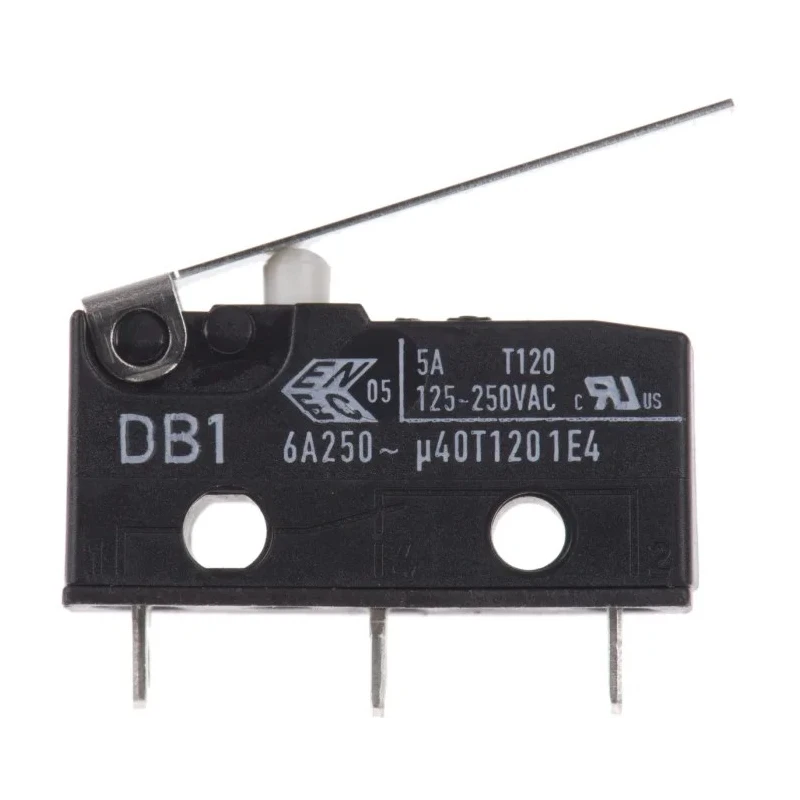

ZF Lever Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP50, DB1C-A1LC

ZF DB1C-A1LC Lever Micro Switch is a high-performance switch engineered for demanding industrial and automation applications. With a lever actuator and SPDT contact configuration, this microswitch is ideal for precise control systems, sensors, and safety mechanisms where reliability and consistent performance are required.

The solder terminal design makes wiring convenient and ensures lasting electrical connections in production environments. Rated for a 6A contact current at 250 V AC, this micro switch supports a broad range of power control needs. The use of polyamide and polyethylene terephthalate in housing construction provides excellent protection against operational stresses, maintaining switch integrity and delivering IP50-rated protection against dust ingress.

The DB1C-A1LC is built with sensitivity in mind, requiring an operating force of just 0.49N. Its operational temperature range of -40°C to 120°C enables deployment in cold rooms, heated enclosures, and other environments outside standard ambient conditions.

Recognized for its DB subminiature form factor, the switch fits reliably into compact devices and panels. Its mechanical endurance of up to 15 million operations guarantees minimal maintenance and longevity, making it an optimal choice for continuous-duty processes.

Compliant with RoHS standards, the ZF DB1C-A1LC lever micro switch meets international environmental requirements, enabling use in global manufacturing contexts. Applications include machinery safety latching, position sensing, automation equipment, and HVAC controls, in addition to laboratory equipment where precision and durability are necessary.
