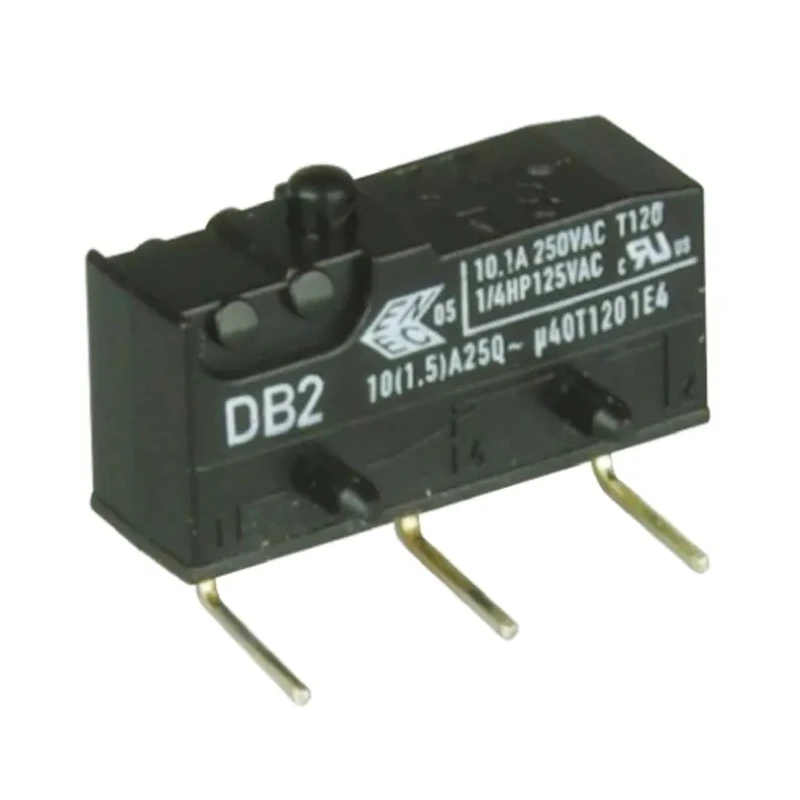

ZF Button Micro Switch with Right Angle PCB Terminal, 10.1A, 250 V AC, SPDT, IP50 DB2C-D2AA

Category Micro Switch Brand ZF Condition New

Specifications

Country of Origin Germany
Brand ZF
Model DB2C-D2AA
IP Rating IP50
Housing Material Polyamide, Polyethylene Terephthalate
Maximum Operating Temperature 120°C
Contact Configuration SPDT
Actuator Type Button
Minimum Operating Temperature -40°C
Terminal type Right Angle PCB Terminal
Standards/Approvals RoHS
Switch Contact Current 10.1A
Operating Force 2.45N
Mechanical Life 15000000Operations
Contact AC Voltage 250V ac
Microswitch Type DB Subminiature

Key Features

  • The button actuator type provides reliable tactile operation.
  • Constructed with polyamide and polyethylene terephthalate housing materials for durability.
  • Rated IP50 for basic ingress protection against dust and particles.
  • Operating force of 2.45N ensures precise actuation sensitivity.
  • Designed for extreme conditions with operating temperatures between -40°C and 120°C.
  • Mechanical life rated at 15 million operations for extended reliability.
  • Complies with RoHS standards and is manufactured in Germany.
  • Compact DB subminiature microswitch type suitable for electronic and electrical control applications.

Product Description

The ZF DB2C-D2AA Button Micro Switch is a high-quality component designed for electronic and electrical applications requiring precise switching control. Featuring a right angle PCB terminal, it supports a switching contact current of 10.1 amperes with a contact AC voltage rating of 250 volts, making it suitable for a wide range of automated and industrial systems.

Its button actuator offers direct tactile feedback for reliable operation. The housing is manufactured from polyamide and polyethylene terephthalate, materials known for their strength and resistance to environmental factors, complemented by an IP50 ingress protection rating providing protection against limited dust ingress.

This micro switch is engineered to operate reliably over a broad temperature range from -40 degrees Celsius up to 120 degrees Celsius and can withstand mechanical operations up to 15 million cycles, ensuring long service life.

Right Angle PCB Terminal enables compact and secure mounting on circuit boards. 10.1A contact current capacity supports robust switching requirements. SPDT (Single Pole Double Throw) configuration offers flexible switching options.

Operating force of 2.45N balances responsiveness and prevention of accidental activation. Robust polyamide and PET housing materials provide durability and safety compliance (UL 94V-0 rated). Manufactured in Germany ensuring high quality and strict standards compliance.

RoHS compliant, meeting environmental and safety regulations.

This micro switch is ideal for use in industrial automation, electronic devices, control systems, instrumentation, and other applications requiring reliable switching with long mechanical life. The compact design fits demanding assembly space while maintaining high performance.

Choose the ZF DB2C-D2AA for reliable and efficient micro switch solutions at an industrial grade. Explore more Micro Switches and related components in the Electronics & Electricals category at EnvMart for your project needs.
